Great Plains Gauge Wheel-Spindle - Manual

Great Plains Mfg., Inc.
Installation Instructions 1
©Copyright 2009 Printed 04/10/2009 195-080M
Dual Gauge Wheel/Spindle Update
2- and 3-Section Pull-Type Drills
General Information
These instructions explain how to install:
• a dual-gauge-wheel upgrade on a single-gauge-wheel
drill, or
• a spindle update on an existing dual-wheel drill that
has a pinned lower drive sprocket.
These instructions apply to an installation of:
One kit updates one drill (both wings). Dual-wheel drills
manufactured in March 2009 or later require no kits.
Related Documents
Have the Operator Manual at hand for drill movements. Have the current Parts Manual at hand for parts ID.
Notations and Conventions
“Left” and “Right” are facing in the
direction of machine travel. An orienta-
tion rose in the line art illustrations
shows the directions of Left, Right,
Front, Back, Up, Down.
Used with:
• 2S-2600, 2S-2600HD, 2600-2S
• 3S-3000, 3S-3000HD, 3000-3S
• 3S-4000, 3S-4000HD
Kit Kit Description
195-060A 3000 DUAL GW SKID STEER FIELD
195-079A MIN-TILL DRV SPINDLE FIELD KIT
195-122A DUAL GW FIELD UPDATE 2600,3000
Drill Model Kit Compatibility
2600-2S All
2S-2600 Serial number DD1414 or lower
2S-2600HD Serial number DD1414 or lower
3000-3S Serial number S1182 through S2189
3S-3000 Serial number S1182 through S2189
3S-3000HD Serial number S2189 or lower
3S-4000 Serial number YY1933 or lower
3S-4000HD Serial number YY1933 or lower
When you see this symbol, the subsequent instructions
and warnings are serious - follow without exception.
Your life and the lives of others depend on it!
!

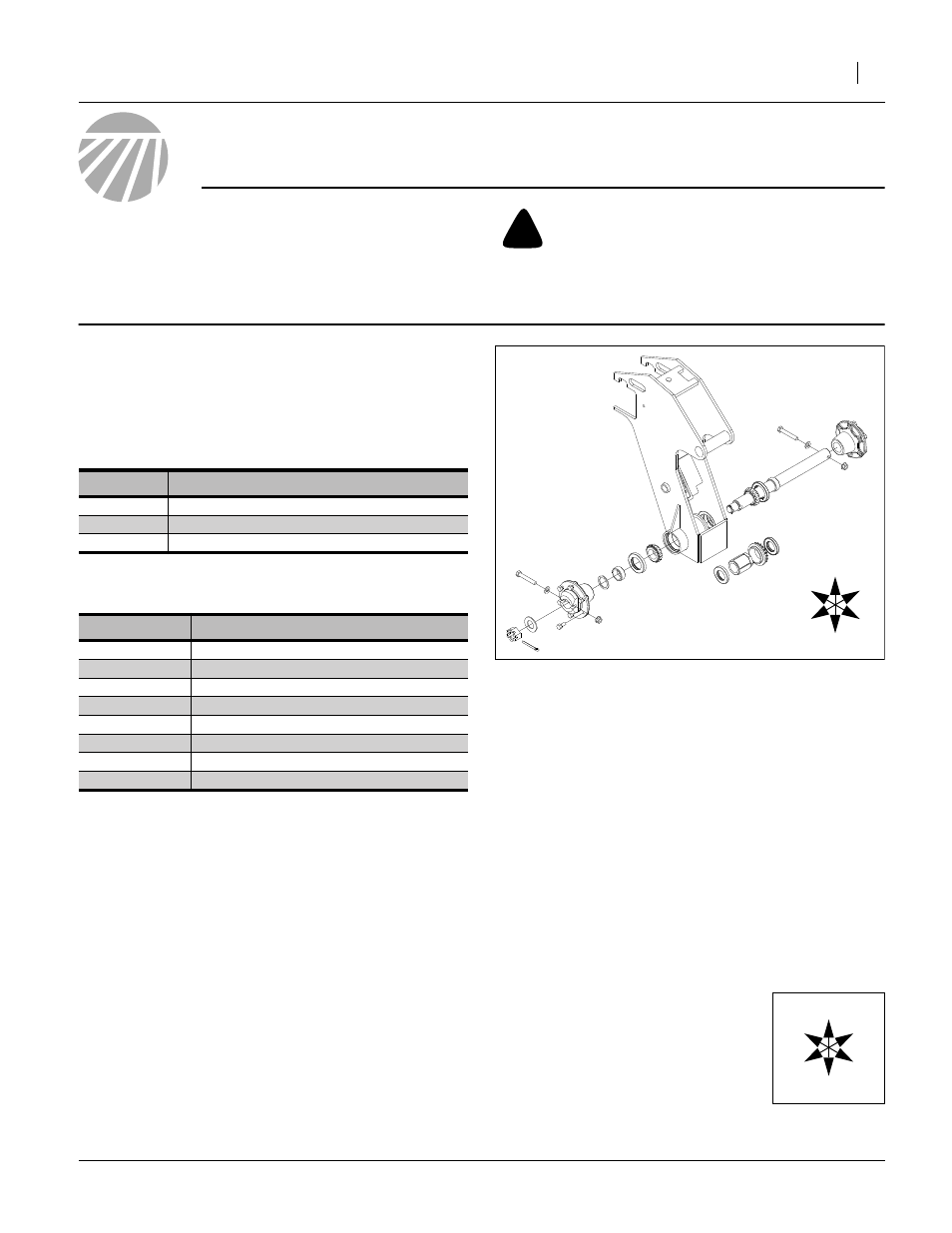

Figure 1
Dual Gauge Wheel Assembly
29442
U
D
R
L
F
B
195-200M Operator, 2600-2S
195-200M-A Operator, 2S-2600
195-069M
Operator, 2S-2600HD
195-110M Operator, 3000-3S
195-110M-A Operator, 3S-3000
195-068M
Operator, 3S-3000HD
195-242M Operator, 3S-4000
195-067M Operator, 3S-4000HD
195-200P Parts, 2600-2S and 2S-2600
195-069P Parts, 2S-2600HD
195-110P Parts, 3000-3S and 3S-3000
195-068P Parts, 3S-3000HD
195-242P Parts, 3S-4000
195-067P Parts, 3S-4000HD
U
D
L
R
B
F
