11 ST Toolbar
Operating Instructions
Transportation & Installation
2.3 Installation
When carrying out installation and
maintenance work there is a higher risk of
injury. It is important that you familiarise
yourself with the component and read the
Operating Instructions beforehand.
2. Transportation and
Installation
Transportation and initial installation of the
machine are described in this chapter.
2.1 Delivery
The Toolbar unit is normally delivered, fully
assembled, on a (low-bed) truck.
The machine can be lifted off with a crane,
fork-lift truck, or other suitable lifting
equipment.
When doing so, the weight, the centre of
gravity and the attachment points on the unit
are to be taken into account.
Depending on the lifting gear, attachment is
only to be at appropriate points on the frame.
2.2 Transportation
The ST Toolbar unit must be lifted clear of the
ground for road transport.
2.4 Connecting the ST
Toolbar to the Mounted X-
Press
1. Remove the Terra-Grip Tine legs from
the Toolbar before attempting to attach
the ST Toolbar to the Mounted X-Press.
2. The Mounted X-Press should be parked
on a firm, level surface.
3. Attach the ST Toolbar to the tractor using
the link pins provided with the Mounted
X-Press (Items 7 & 8 on Page 20).
4. Using bolts, fit the balls to the X-Press
lower links (see Item 17 on Page 22)
5. With the Toolbar attached to the tractor,
align the rear linkage of the Toolbar with
the linkage of the Mounted X-Press.
Engage the balls in the hooks on the
Lower links of the X-Press.
6. Fit the Toplink Adjuster on the Toolbar
to the X-Press upper link.
7. Attach the parking stands to the X-Press
(see Fig. 2.02 below and Page 30 for
details).
8. Raise the combined machines fully and
re-fit the tine legs.

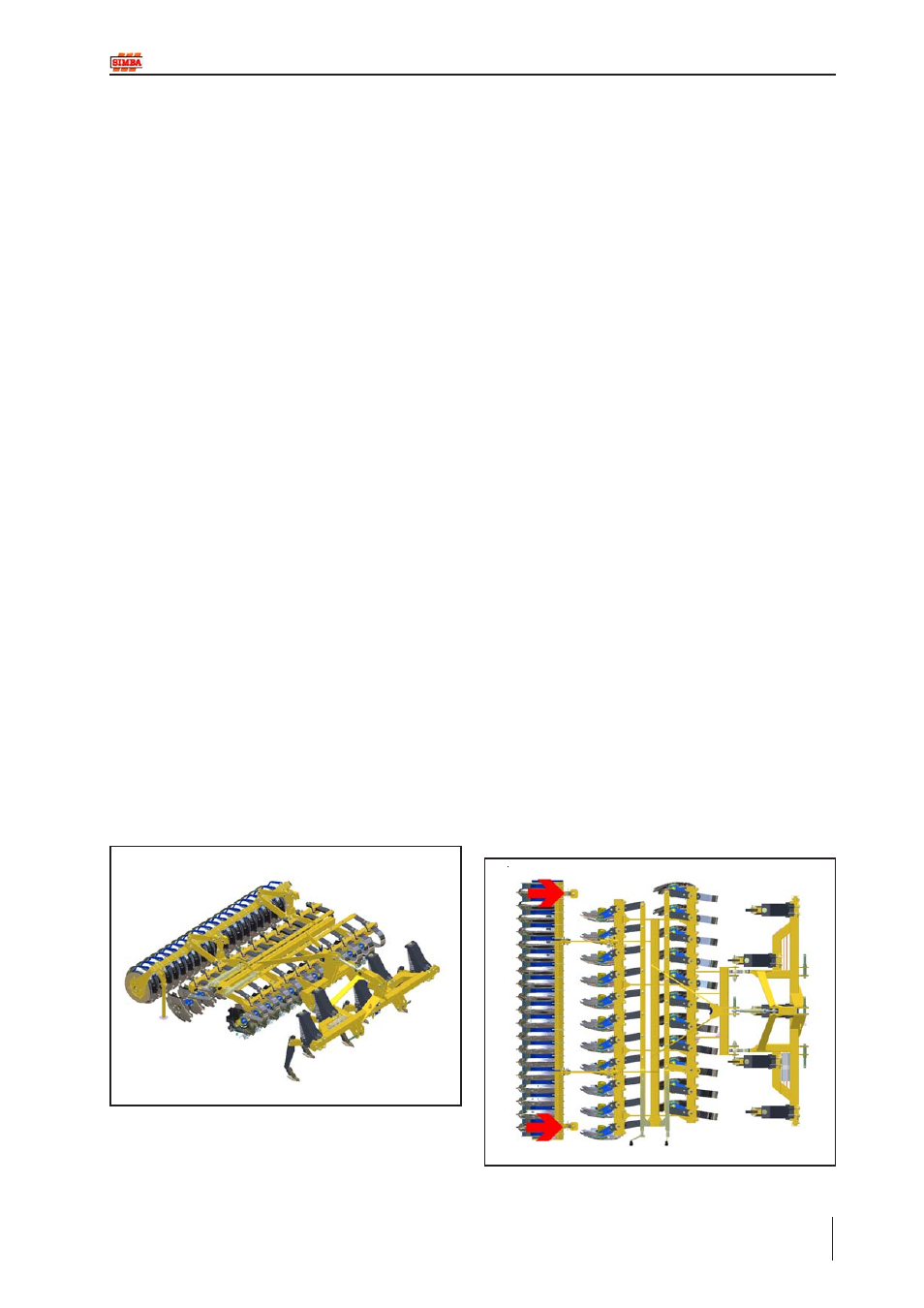

Fig. 2.02: Parking Stand Position
Fig. 2.01: X-Press with ST Toolbar
