Great Plains Frame-Mounted Coulters - Manual (Page 6)

Great Plains Mfg., Inc.
6 Update Kit
249-137M 02/28/2007
Re-Install Coulter Blade
Refer to Figure 10
29. Select four each saved:
coulter blade
NUT HEX 1/2-13 PLT
WASHER LOCK SPRING 1/2 PLT
RHSNB 1/2-13X1 1/4 GR5
30. Place the blade on the hub and secure with the
1 ⁄
2
-13 bolts , lock washers and nuts .
Reference Information
Abbreviations
Parts List
New Parts Included in the 249-136A Update Kit:

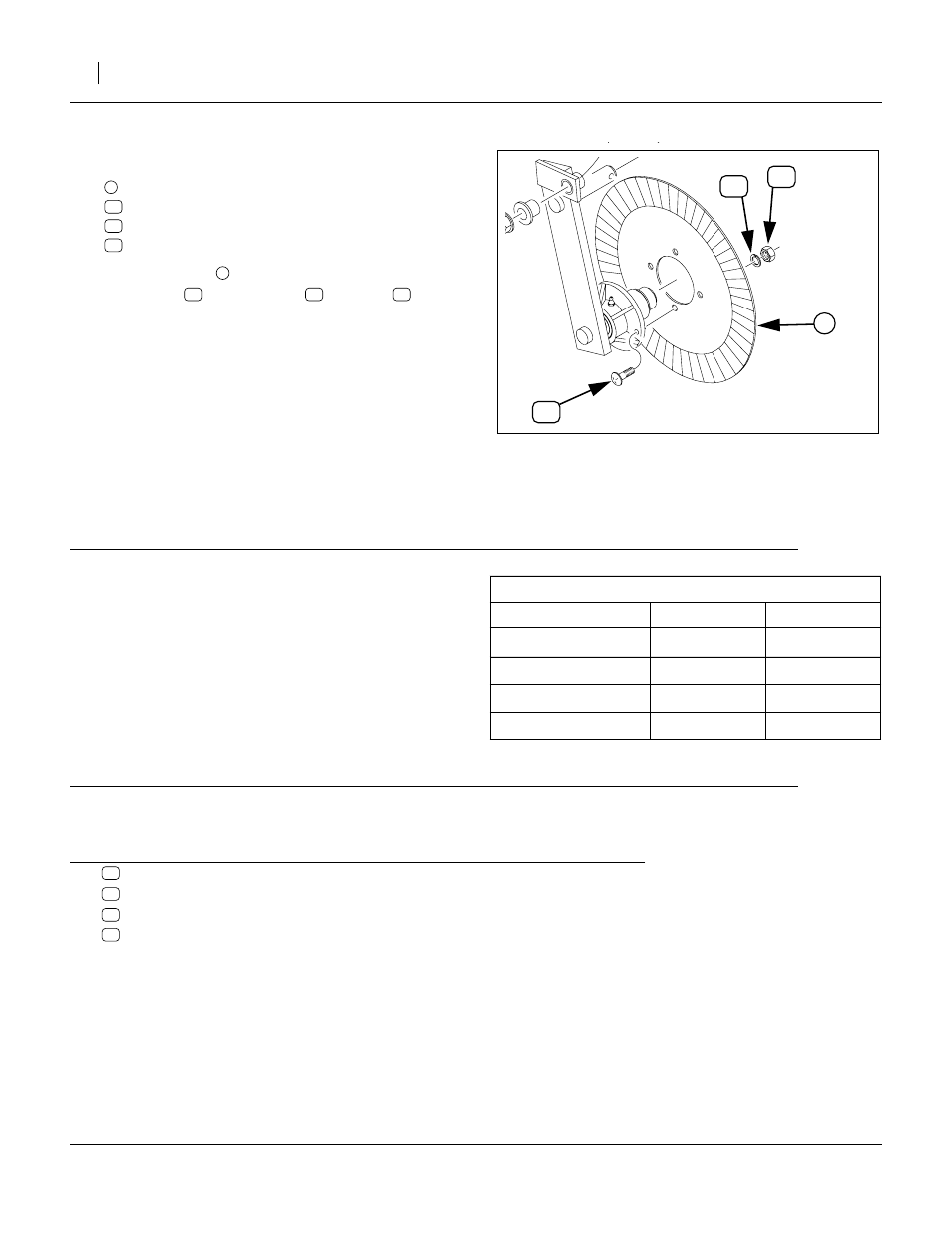

Figure 10
Re-install Blade
26099
65
60
61
1
1
61
65
60
1
60 65 61
GR5 Grade 5
HHCS Hex Head Cap Screw (Bolt)
RHSNB Round Head Shank Neck Bolt
MNT Mount
PLT Plated
Torque Values
Fastener/Fitting N-m Ft-Lbs
1 ⁄
4
-28
13 10
1 ⁄
2 -13 GR5
105 76
3 ⁄
4 -10
360 265
7 ⁄
8 -9
858 430
Callout Quantity Part No. Part Description
1 249-137M This manual
1 249-050S CLTR CASTING ASSY
1 800-001C GREASE ZERK STRAIGHT 1/4-28
1 805-331C COULTER SPRING GUIDE TUBE
11
12
13
14
