Carrier 50FK User Manual
Page 9
GAS SECTION
HORIZONTAL DISCHARGE SECTION (50FY,JY)
(48FK,JK)
AND EXTENDED
PLENUM SECTION (50FKX,FKY,JKX,JKY)

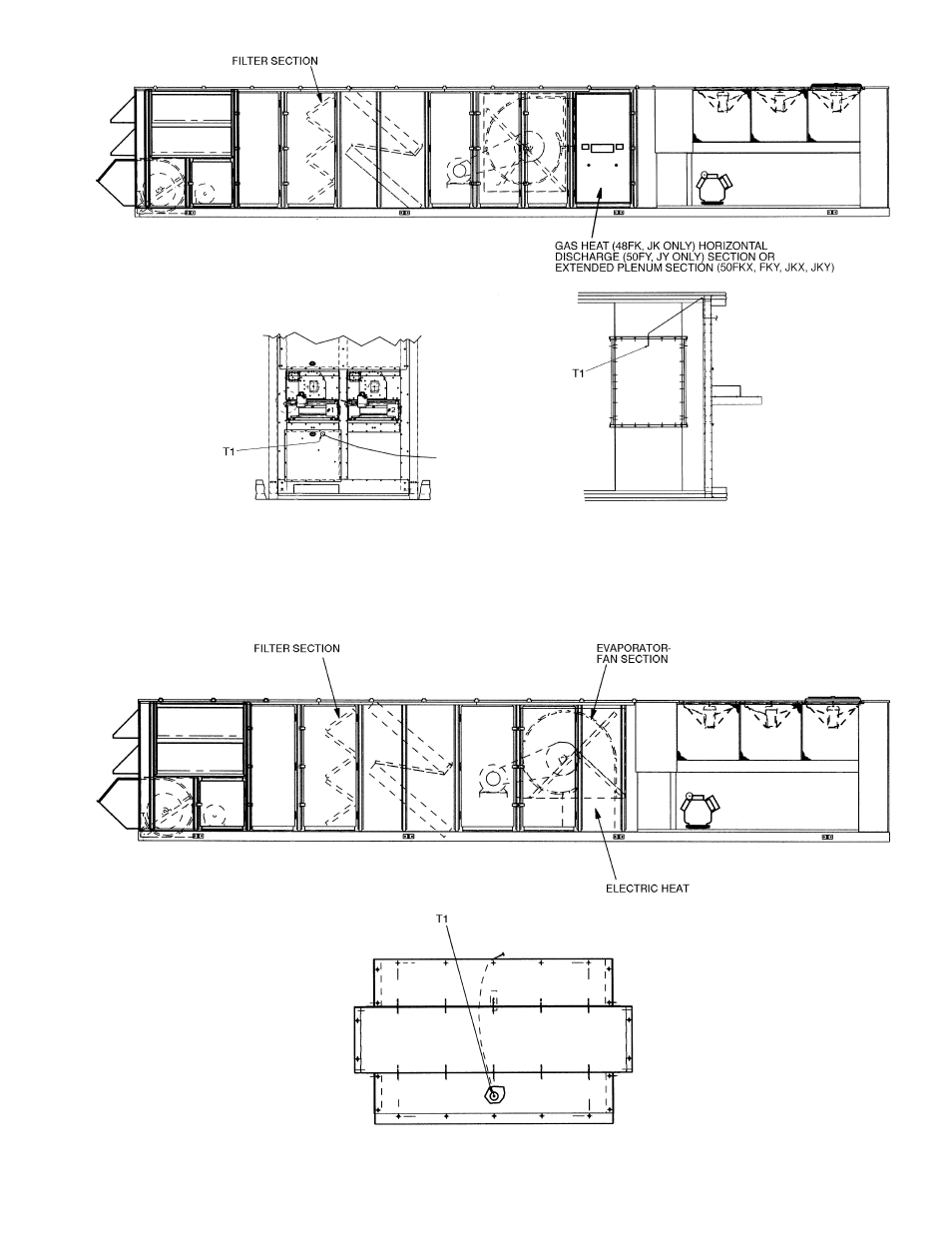

Fig. 9 — Thermistor T1 Location, 48FK,JK, 50JY and
50JKX,JKY 054-074 Units and 50FKX,FKY and 50FY054-104 Units
FAN DISCHARGE/ELECTRIC HEAT SECTION
Fig. 10 — Thermistor T1 Location, 50FK,JK054-074 Units
9
