Great Plains Manufacturing, Inc. Update 3S-4000F/SGS Left Hand Drive 79
03/24/2009 195-073M
Install 3S-4000F/SGS LH Torque Tab
Refer to Figure 127
36. Select one new:
195-345D CLUTCH TORQUE ARM TAB
and two sets new:
802-079C HHCS 3/8-16X1 1/4 GR5
804-011C WASHER FLAT 3/8 USS PLT
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
37. Loosely mount the tab at the same Drive Type
bracket weldment holes used by the tab
removed at step 6.
38. Rotate the clutch housing until the torque arm
is nearly vertical. Route it through the large hole in
the torque tab
. Tighten the bolts to torque
specifications.
3S-4000F/SGS LH Closeout
Refer to Figure 120 on page 75
39. Route chains ( , ) over the sprockets. Adjust idler
for Drive Type chain to
1 ⁄
2
in (13mm) slack in long-
est chain span. Adjust idler for option jackshaft chain
to
1 ⁄
4
in (6mm) slack in longest chain span.
40. Select one new (not shown):
833-088C OGURA CLUTCH JUMPER HARNESS
Connect the jumper to the clutch cable.
Refer to Figure 128
41. Re-mount gauge wheel chain on sprocket .
Engage idler for 1in (2.7cm) slack in longest chain
span.

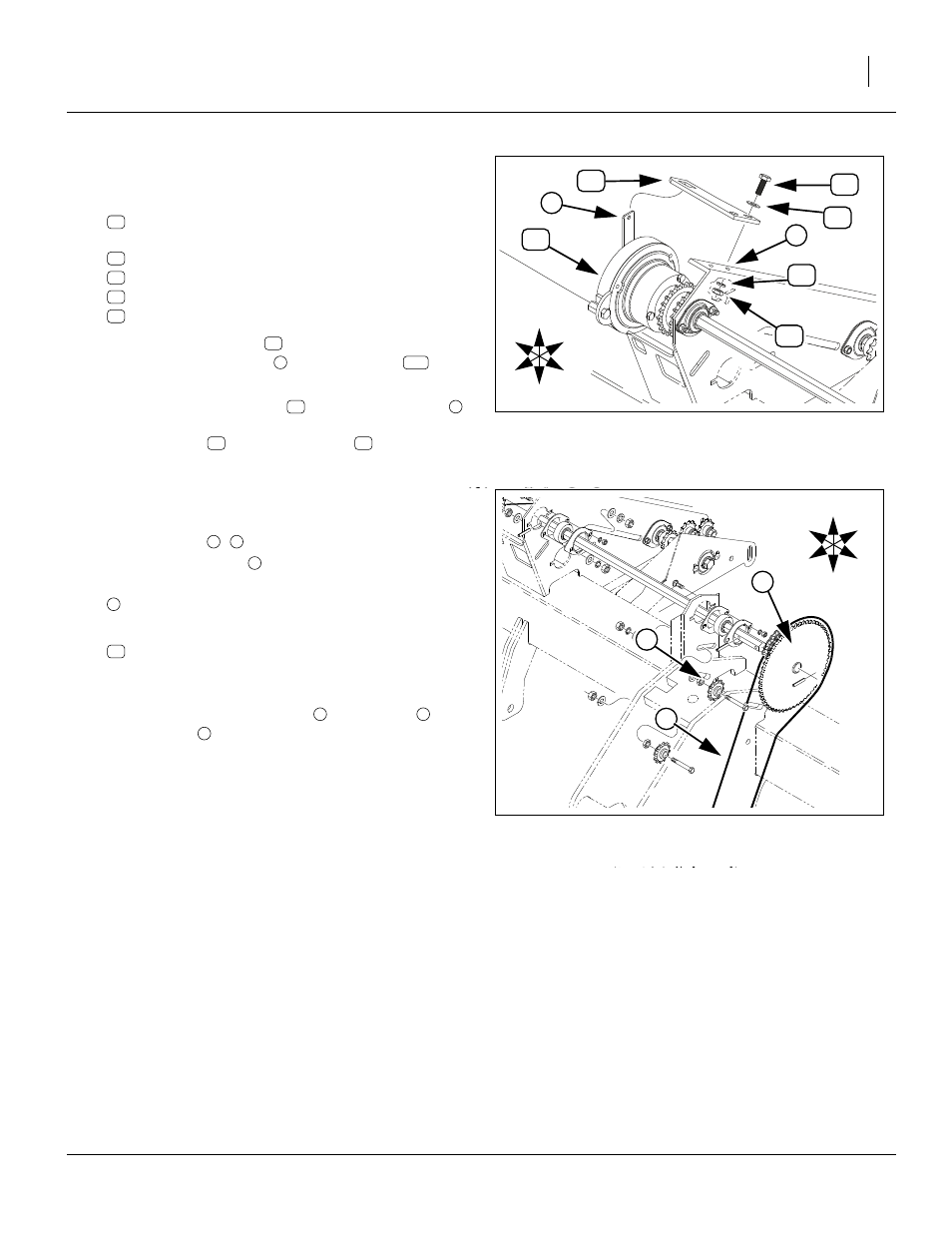

Figure 127: 3S-4000F/SGS:
Install LH Torque Arm Tab
28100
U
D
F
B
L
R
36
54
30 20
41
42
h
t
20
30
41
42
36
20
h 101
54 t
20 30
Figure 128: 3S-4000F/SGS:
Re-Install LH Gauge Wheel Chain
28056
U
D
F
B
L
R
c
a
k
n u
n
u
55
c k
a
