18 Electric Clutch Package Great Plains Manufacturing, Inc.
195-073M 03/24/2009
Install New 2S-2600F/SGS LH Power Shaft

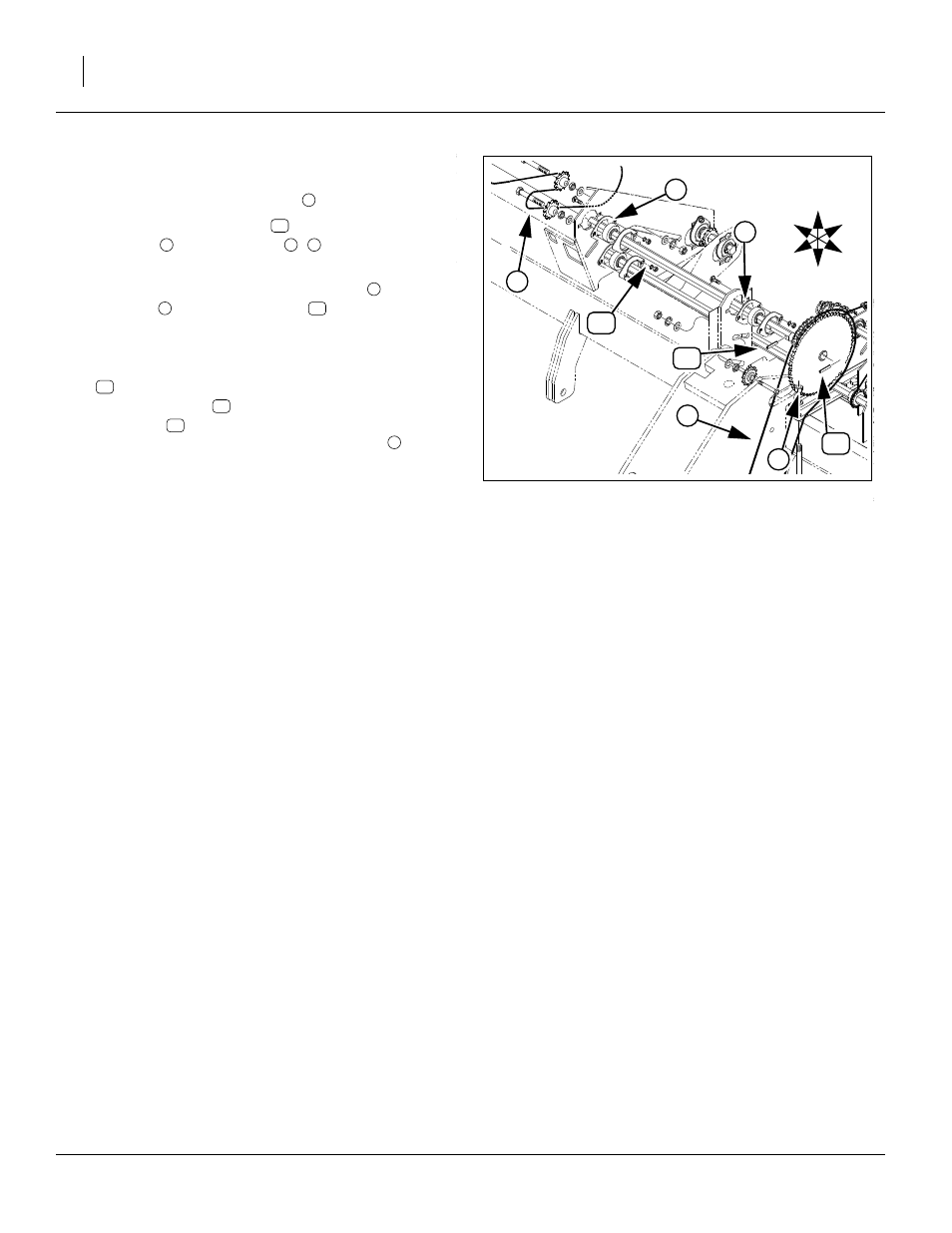

Refer to Figure 26 (which, for clarity, is a fully exploded
view, but omits the option box chain
)
20. From drill left, insert shaft into the existing flanged
bearings and the chains , in the Drive Type
bracket.
21. Select the saved ground drive sprocket . Place
sprocket onto the new shaft , with the raised
hub of the sprocket to drill right (towards the bear-
ings).
22. Select one new:
805-180C PIN ROLL 1/4 X 1 1/2 LG PLT
Drive the roll pin into the hole at the left end of
new shaft , securing the sprocket.
Note: Do not re-mount the gauge wheel chain until
step 38. This leaves the new shaft free to spin for
ease of installing additional components.
Figure 26: 2S-2600F/SGS:
Install LH Power Shaft
28073
50
U
D
F
B
L
R
21
50
b
b
c
k
n
u
21
b n u
k
k 21
50
50
21
c
