36
Section 2 Implement Assembly and Setup
Model 1150 1995 - 1997 167-058M 7/28/10
Great Plains Mfg., Inc.
Light Harness and Brackets

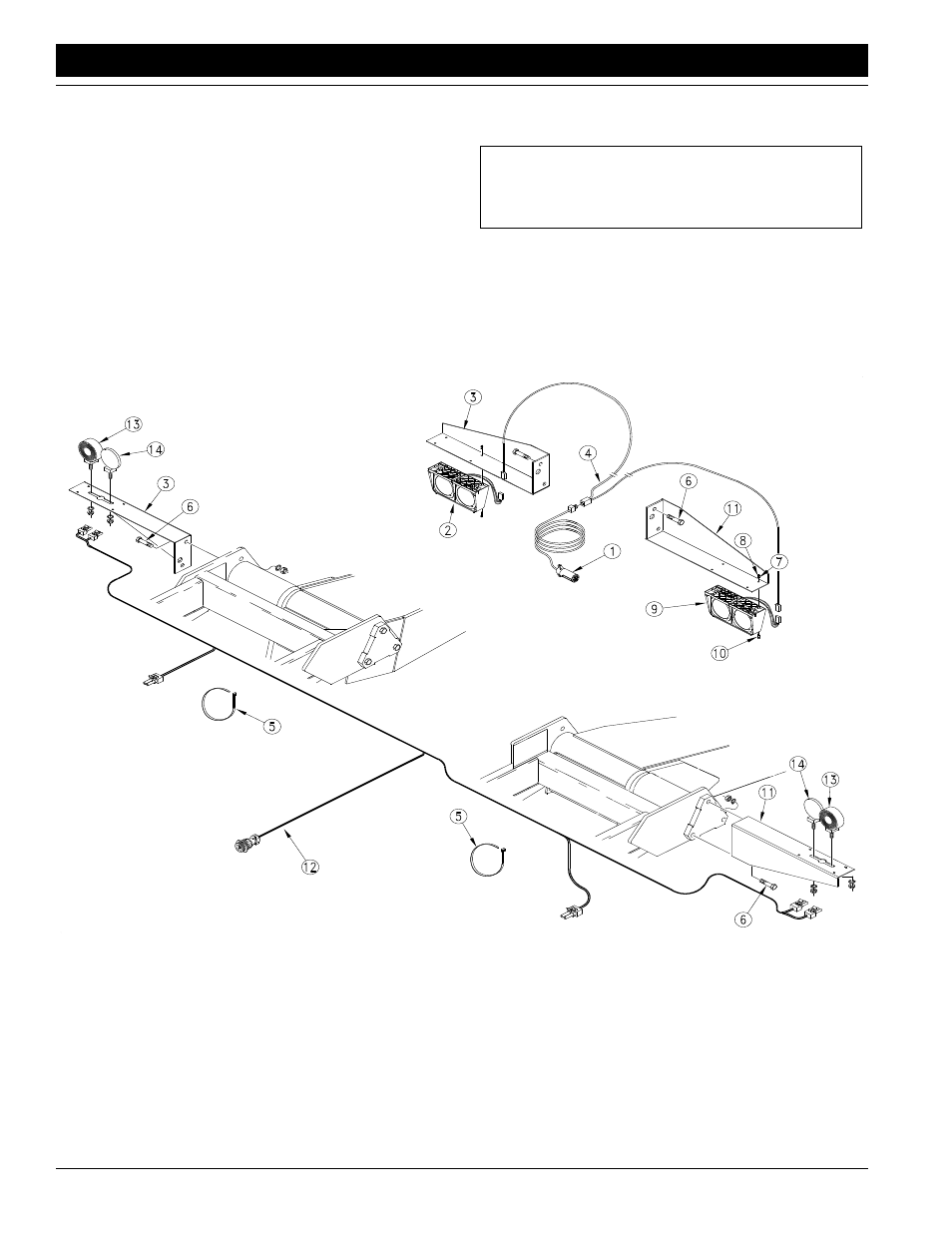

Refer to Figure 2-19:
Attach the left (#11) and right (#3) side light brackets to the
left and right center sections of the implement. Use the
5/8”-11 x 2 3/4” bolts (#6) to secure them to the outer lift
assist pivot bearings. Install the left (#2) and right (#9) ag
lights on the brackets using the 1/4” x 1 1/4” bolts (#10),
lockwashers (#7), and nuts (#8). The lights should be in-
stalled with the red lenses to the inside and facing the rear.
Attach the light harness “Y” connector (#4) to the terminal
at the back of the cart (#1). Route the wires along the
frame members back to the lights and plug in.
Secure the wire in place using the cable ties (#5). Coil the
excess wire and tie it securely to the implement frame
NOTE: The lead with the green wire goes to the right
side lights, the lead with the yellow wire goes to the
left side when facing forward.
.
Safety Light Kit Installation
Figure 2-19
14573
