3S-4000
195-242Q 9/12/2009
10
Installing Reflectors and Decals
Decals are shipped in a bag in one of the drill
boxes.
To install new reflectors and decals:
• Clean the area where the reflector or decal is
to be placed.
• Peel backing from reflector or decal. Press
firmly on surface, being careful not to cause
air bubbles under reflector or decal.

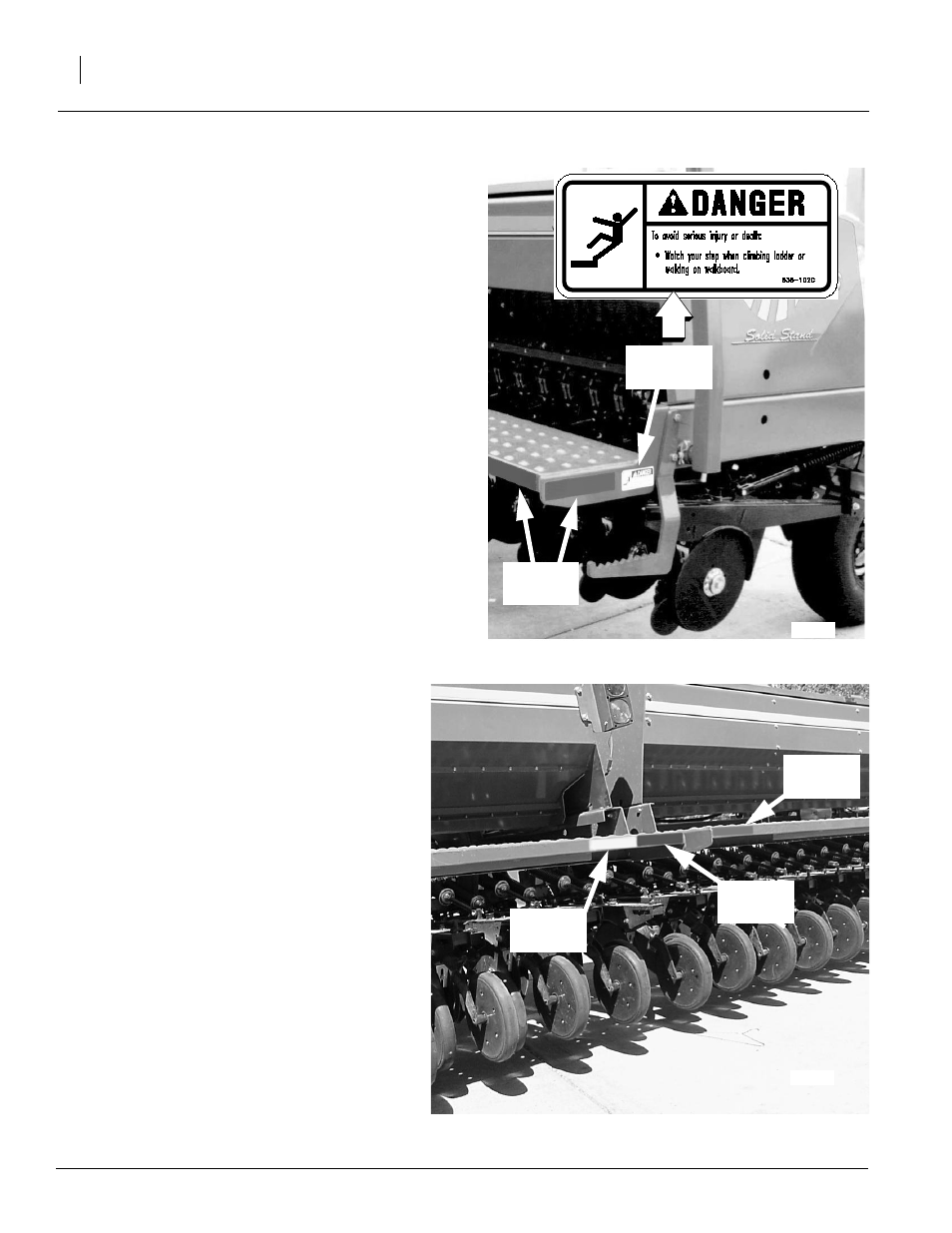

Place decals as follows.
1. On outside end of walkboard on each wing
section, place amber reflectors and decal
#838-102C as shown. On outside end of cen-
ter section, place amber decal only.
2. On the backside of wing walkboards, place
the amber reflectors as shown.
Amber
Reflector
Decal
#838-102C
18837
3. One back of center section, place a red
reflector and a daytime reflector as
shown.
4. On inside end of walkboard on each
wing section, place amber reflector as
shown. Center section
Right wing section
Amberr
reflector
Daytime
reflector
Redr
reflector
18871
