RS-232 DB-9M Connector Power Connector
ns-Mne ethernet and
Power Connector end ns-Mne rs-232
Connector end
RJ-45 Ethernet Connector
MU5066ADC
NS-MNE RS-232 to ADC Connection
(One for each NS-MNE)
Power and other connections for all devices not shown
MU5066ADC
MU5066ADC

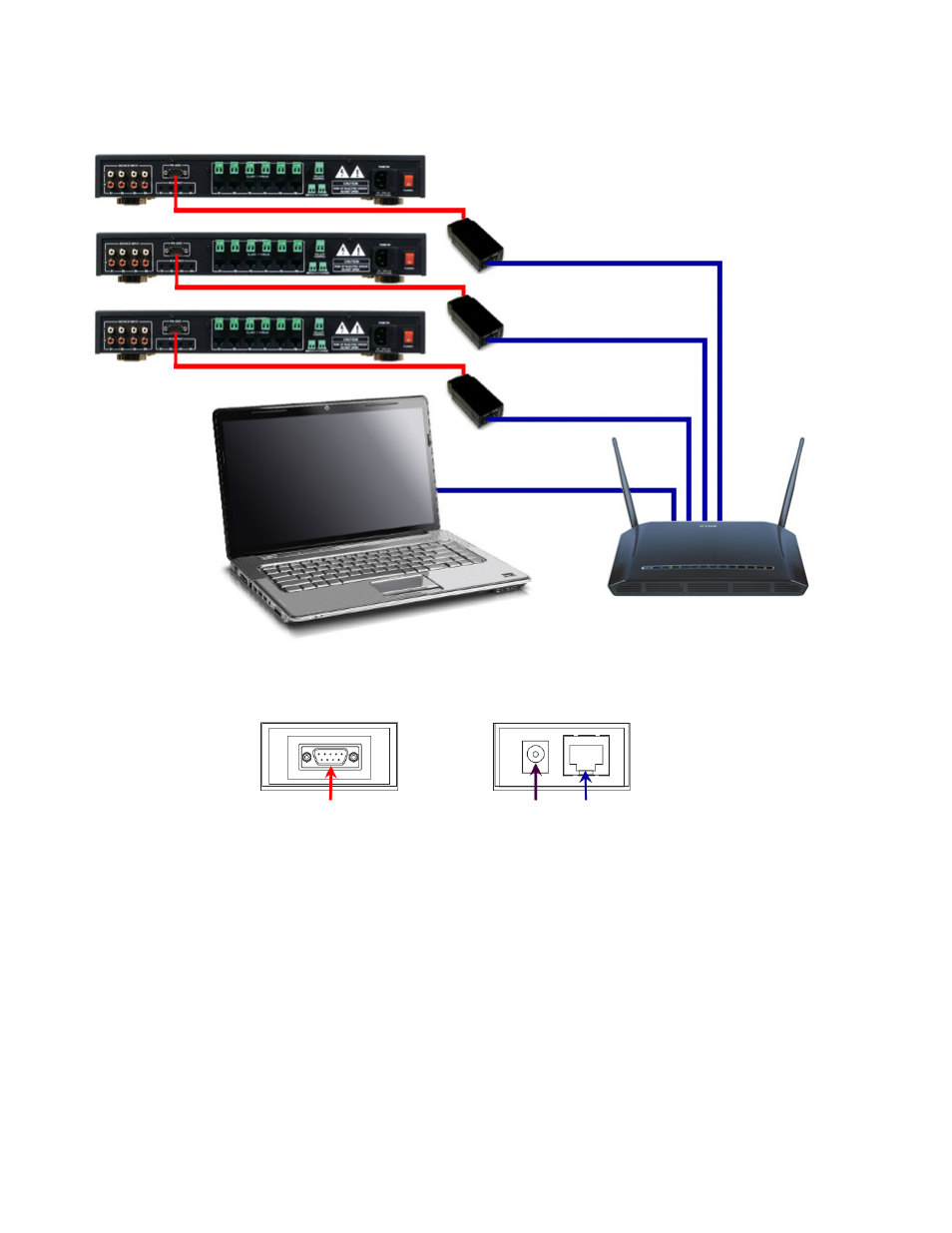

Home network with 3 Musica adC’s and 3 ns-Mne’s Comprising an 18-Zone system
ns-Mne Connectors
Ethernet Switch/Wireless Router
PC to Ethernet Switch/
Wireless Router Connection.
Can be wired or wireless.
NS-MNE to Ethernet
Switch/Wireless Router
Connection
(One for each NS-MNE)
Personal Computer
I
nforMatIon
r
equIred
You will need to provide the following information for each NS-MNE as you configure:
Static IP Address •
Note: In systems where more than one NS-MNE is configured, the IP addresses that are »
assigned must be sequential. For example, the first NS-MNE could be 10.15.100.150,
then the second would be 10.15.100.151, and the third 10.15.100.152.
Subnet Mask •
Gateway Address •
