sTandalone MeTHod
I
nforMatIon
r
equIred
You will need to provide the following information for each NS-MNE as you configure:
Static IP Address •
Note: In systems where more than one NS-MNE is configured, the IP addresses that are »
assigned must be sequential. For example, the first NS-MNE could be 10.15.100.150,
then the second would be 10.15.100.151, and the third 10.15.100.152.
Subnet Mask •
Gateway Address •
c
onfIguratIon
p
rocess
To configure the NS-MNE, connect the hardware, then use the Windows HyperTerminal or similar
application to perform the configuration. (HyperTerminal can be downloaded for Windows 7.)
Verify the DIP switches on the bottom of the NS-MNE unit are in the proper positions as shown: 1.
Connect the NS-MNE to the computer serial port using the null modem cable provided. 2.
do noT ConneCT Power To ns-Mne.
NOTE: If your computer does not have a serial port, you need to use an adapter that »
converts from USB to serial. Note the COM port number.
Start the computer. 3.
Establish a COM Port connection to the NS-MNE device using the MS-Windows HyperTerminal 4.
program. Select start>all Programs>accessories>Communications>HyperTerminal.
The HyperTerminal Screen Displays

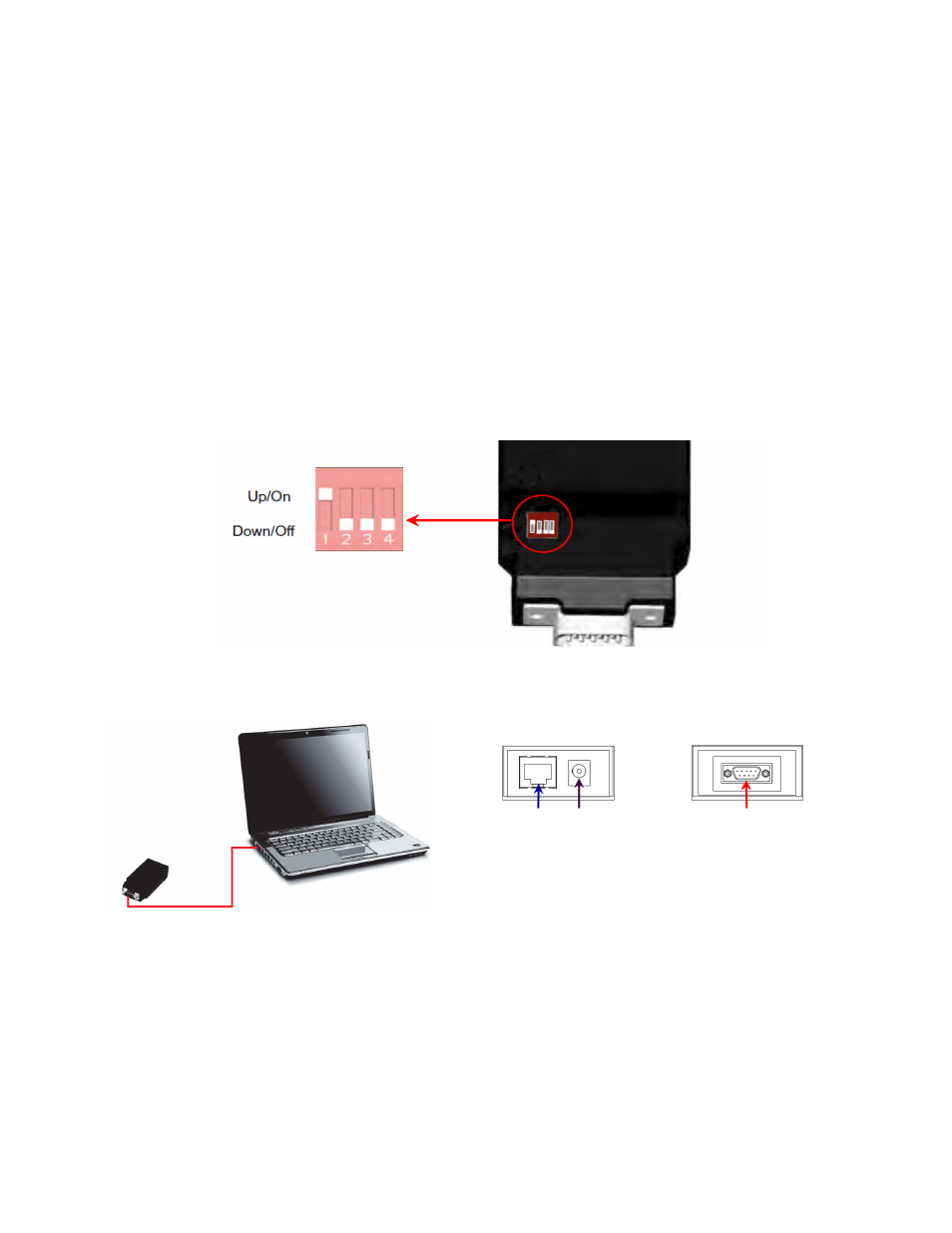

RS-232 Connector on End of NS-MNE
Connects by Null Modem Cable to PC Power
Connector
of NS-MNE Ethernet Connector
of NS-MNE not used
for Standalone
Configuration
dIP switch Positions
