ClearOne NS-MNE Musica Network - Manual (Page 15)

I
nstallatIon and
o
peratIon
M
anual
12
Chapter 3: using the Browser ns-Mne Musica Interface
The browser interface of the NS-MNE can be entered by any Flash-enabled browser running on a
computer, smartphone or tablet attached to the same Ethernet network as the NS-MNE. This can
be a wired or wireless connection. Access the interface by entering into the browser the IP Address
of the NS-MNE unit connected to the Musica ADC.
In systems where more than one NS-MNE was configured using sequential IP addresses, browsing
to the NS-MNE with the lowest IP address automatically establishes control over all of them. Up
to 18 zones will be controlled through the browser. For example, if the first NS-MNE configured is
10.15.100.150, the second (10.15.100.151) and the third (10.15.100.152) would also be controlled
through the browser.
The address, when entered, may include a parameter to display the control panel in either Portrait
or Landscape mode:
http:///Portrait.html
http:///landscape.html
When no parameter is specified both screens will display and the user selects the one to use by
clicking on the control screen desired.
The IP Address with parameter can be saved to a browser Favorite or Bookmark for ease of use.

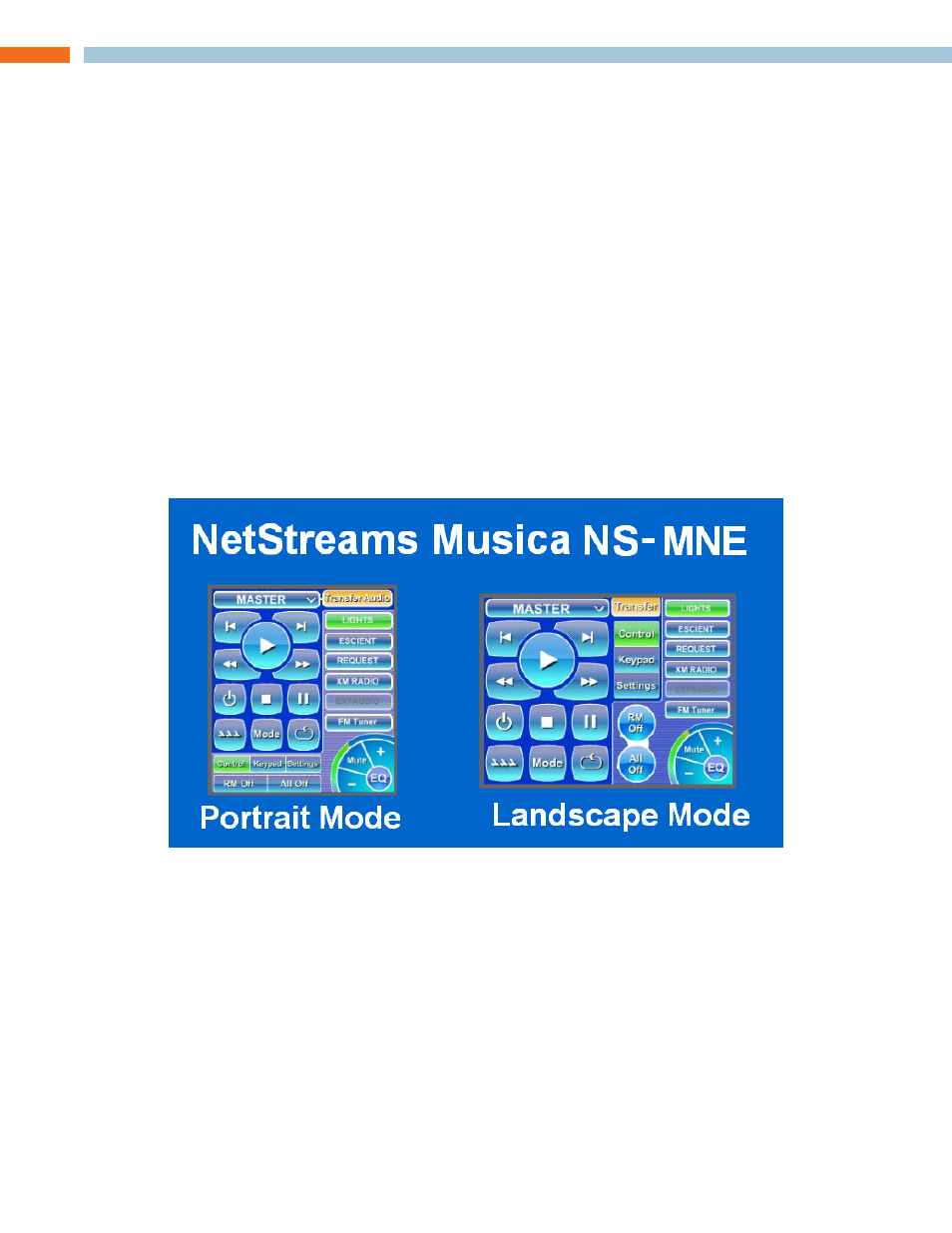

MusICa Browser ConTrol sCreens
The following screens are used to access the various Musica functions through the browser interface.
Some of the screens are shown in Landscape mode, some in Portrait mode; either orientation
contains the same controls
