Adjusting Line Input/Output settings
If your device is not listed in the Device Toolbox you can manually customize and configure
the audio of your auxiliary devices in the Line Input and Line Output windows. Line input
and output devices include video codecs, CD players, amplifiers and sound cards.
To access line input settings
• Open the Line Input window by clicking on
the Line Input device icon.
To adjust equalization
• Adjust the Low, Mid and High frequency
tones using the Equalization sliders.
To adjust audio level (volume)
• Using the slider, adjust the volume. The meter
will display input levels.
Note:To save the name and setting of your line
input device, refer to the Device Toolbox Editor
on page 49.
To access line output settings
• Open the Line Output window by clicking
on the Line Output device icon.
To adjust equalization
• Adjust the Low, Mid and High frequency
tones using the Equalization sliders.
To adjust audio level (volume)
• Using the slider, adjust the volume. The meter
will display input levels.
Note:To save the name and setting of your line
output device, refer to the Device Toolbox
Editor on page 49.

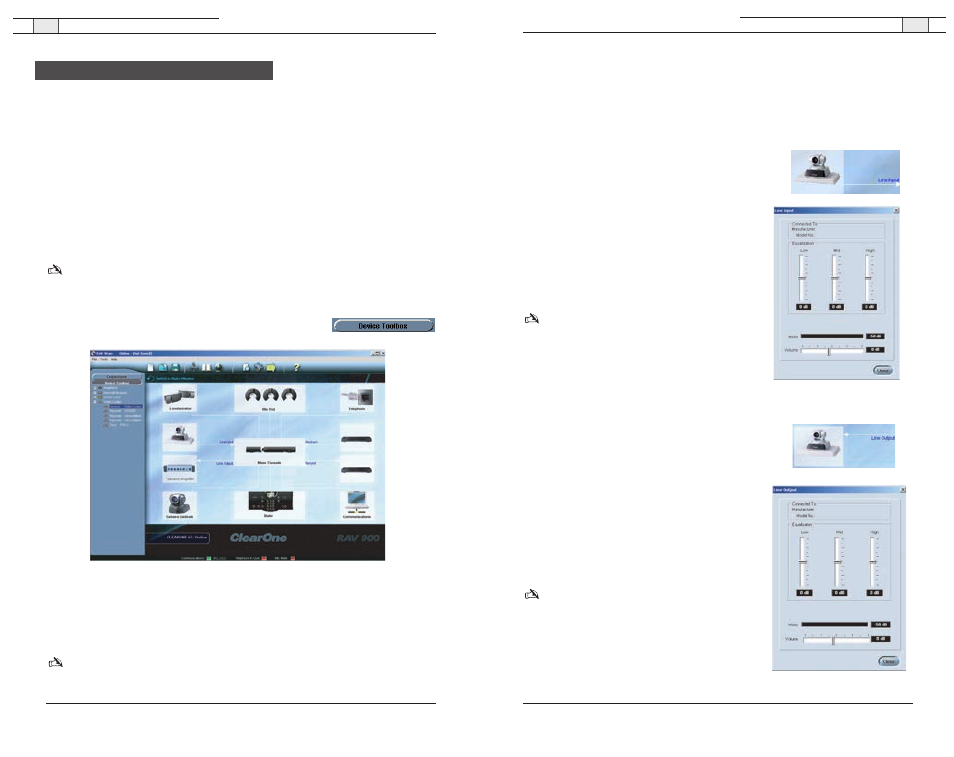

Figure 3.23. Line Input
Figure 3.24. Line Output
The RAV mixer has jacks for Line Input and Line Output that allow you to connect different
auxiliary devices. You can configure audio levels for these devices through RAV-Ware. You
can use devices that have preconfigured audio settings from the Device Toolbox or you can
manually set the audio settings for your line in and line out devices.
Preconfigured video codecs, amplifiers and sound cards
The audio settings for many common auxiliary devices such as video codecs, VCRs, amplifiers
and sound cards, have been pre-configured for optimal performance with the RAV system.
Preconfigured devices are listed in the Device Toolbox and can be placed on the Line In and
Line Out icons.
Note: If you would like to add a device to the Device Toolbox, please refer to the Device Toolbox
Editor on page 49.
To select a pre-configured line-level device
1. Click the Device Toolbox button to display preconfigured devices.
2. Click the plus sign (+) to expand the category that matches your device type.
3. Click the device name and drag it to the Configuration screen. Drop over the Line Input or
Output. The label and icon will change based on the selected device.
Note: Video codecs will cover both Line Input and Output. A sound card should be placed on
Line Input or on both Input and Output for web conferencing. An amplifier is Output only.
Line Input and Output
Figure 3.22. Line input device list
