Quoizel QF1398SMM Quoizel Fixture - Manual (Page 5)

6 CORPORATE PARKWAY
GOOSE CREEK, SC. 29445
www. quoizel. com
5 of 5

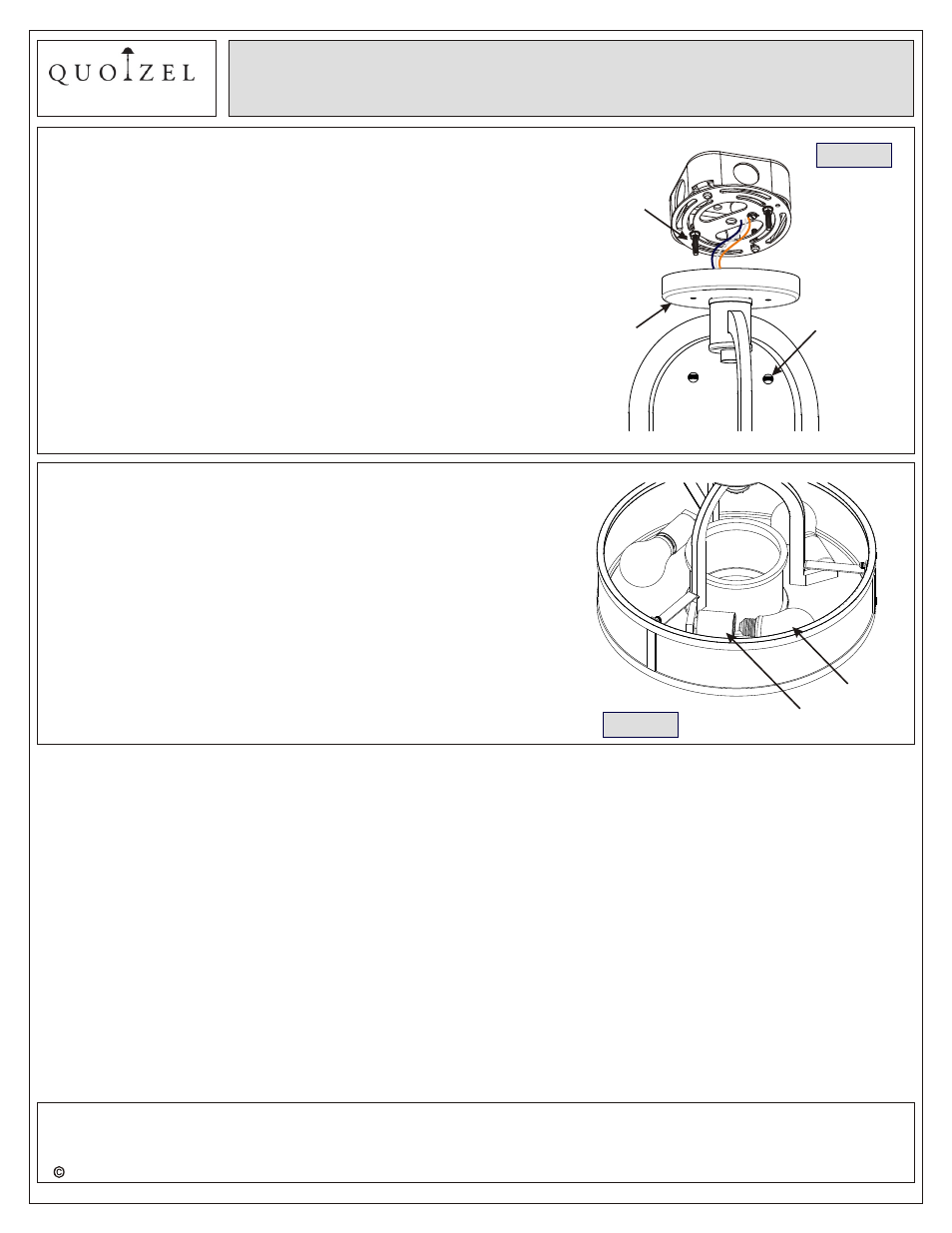

Assembly Instruction Sheet #IS-QF1398SMM
For Style QF1398SMM
STEP 5 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy on the Socket Assembly (G)
over the Mounting Screws (B) and secure with Mounting
Balls (E). Hand tighten until snug.
Mounting Screw
Mounting Ball
Ceiling Canopy
Figure 6
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 Quoizel Inc. September 2012
STEP 6 - Install Bulb
A. This fixture uses standard bulb with a standard screw
base. Maximum 60 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use. Enjoy!
Figure 7
Bulb
Socket
