6 CORPORATE PARKWAY
GOOSE CREEK, SC. 29445
www. quoizel. com
3 of 5
Assembly Instruction Sheet #IS-QF1398SMM
For Style QF1398SMM
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com

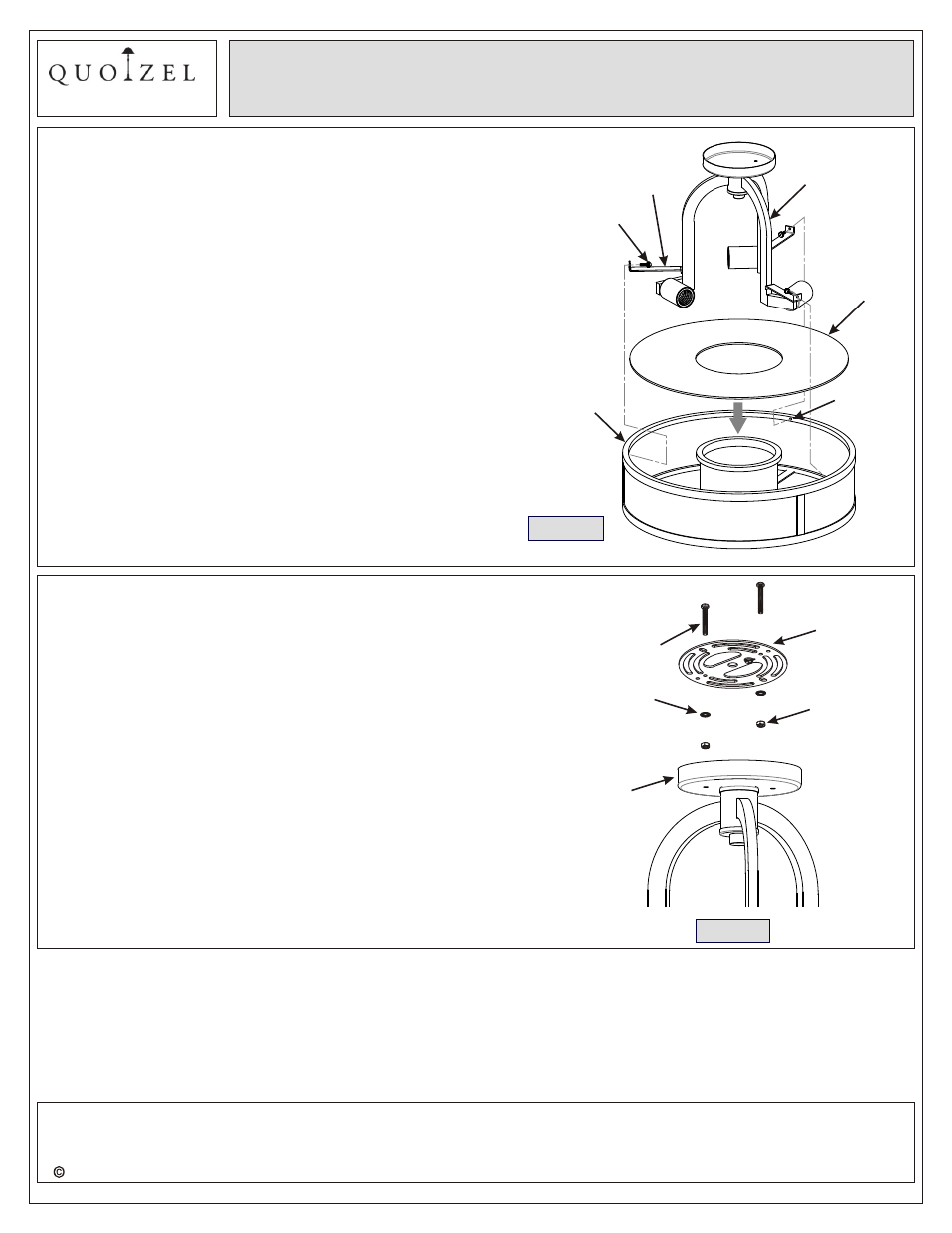

Figure 1
STEP 1 - Attach Shade to Socket Assembly
A. Place the Diffuser (H) in the bottom of the Shade (I).
B. Align the holes on Side Arms to the Mounting Holes on
the top edge of the Shade (I). Secure the Socket
Assembly (G) onto the Shade (I) with Lock Screws (F).
Hand tighten until snug.
Socket
Assembly
Lock Screw
Side Arm
Diffuser
Mounting
Hole
Shade
Figure 2
Crossbar
Mounting Screw
Lock Washer
Hex Nut
Ceiling
Canopy
STEP 2 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy.
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
2012 Quoizel Inc. September 2012
