INSTALLATION INSTRUCTIONS

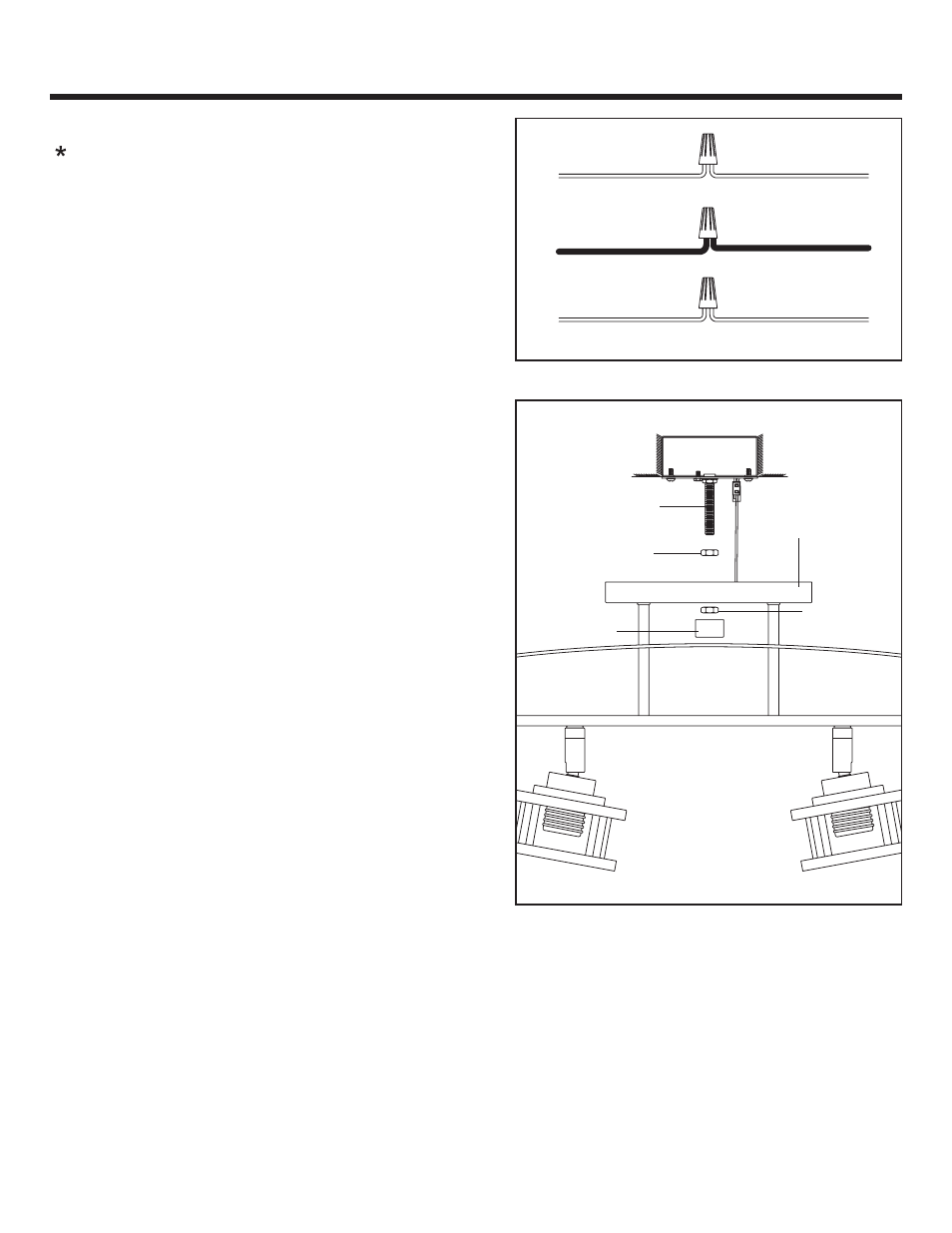

STEP 4:
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (Black or Smooth Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
WHITE OR RIBBED
BLACK (OR RED) WIRE
GROUND WIRE
WHITE OR RIBBED
BLACK OR SMOOTH
GROUND WIRE
FROM HOUSE
FROM HOUSE
FROM HOUSE
FROM FIXTURE
FROM FIXTURE
FROM FIXTURE
Use Wire Connectors (not supplied) to connect the
wires.
3 OF 4
STYLE NUMBER: KY1404IB
STEP 5:
a. Screw one Hex Nut to the end of the Nipple. Place the
Ceiling Canopy over the end of the Nipple and adjust
the Hex Nut against the inside of the Ceiling Canopy.
b. Secure the Ceiling Canopy by threading the another
Hex Nut to the Nipple. Hand-tighten until snug.
c. Thread the Lock Ball to the end of the Nipple. Hand-
tighten until snug.
Nipple
Hex Nut
Ceiling Canopy
Lock Ball
Hex Nut
