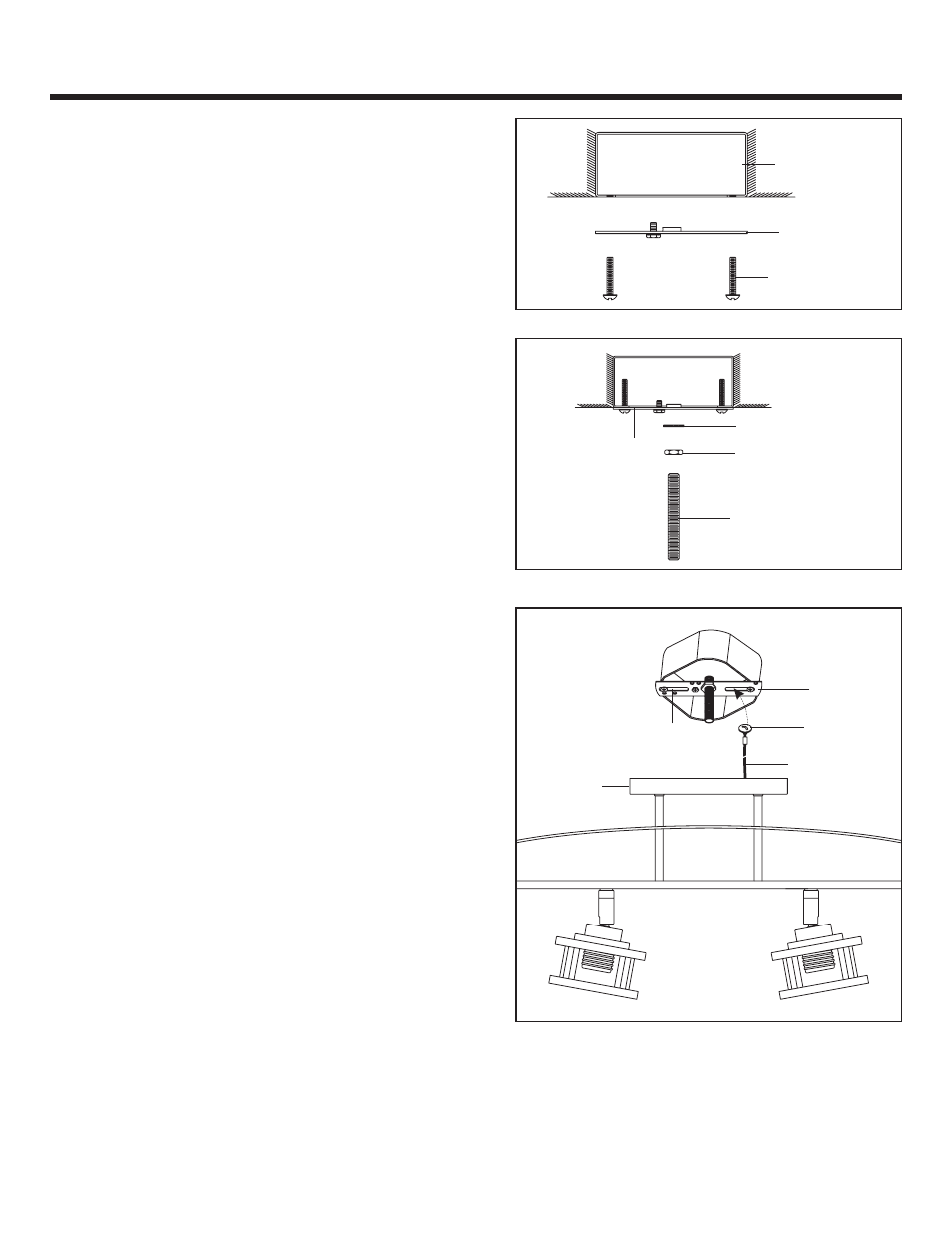

STEP 1:

a. Secure the Crossbar onto the Outlet Box with Outlet

Box Screws. Tighten until snug.

Outlet Box

Crossbar

Outlet Box
Screw

INSTALLATION INSTRUCTIONS

STEP 2:

a. Thread one Hex Nut onto top end of the Nipple.
b. Place one Lock Washer over the top end of the Nipple

and then thread the Nipple into the center lock hole of
the Crossbar.

c. Using pliers, thread the Hex Nut against the Crossbar

and hand-tighten until snug.

STEP 3:

a. Locate the Ceiling Canopy onto the Crossbar and slip

the Button Stop on the end of the Lanyard into the Slot
on the Crossbar as shown.

Lock Washer

Crossbar

Hex Nut

Nipple

2 OF 4

STYLE NUMBER: KY1404IB

Slot

Lanyard

Ceiling
Canopy

Crossbar

Button Stop
