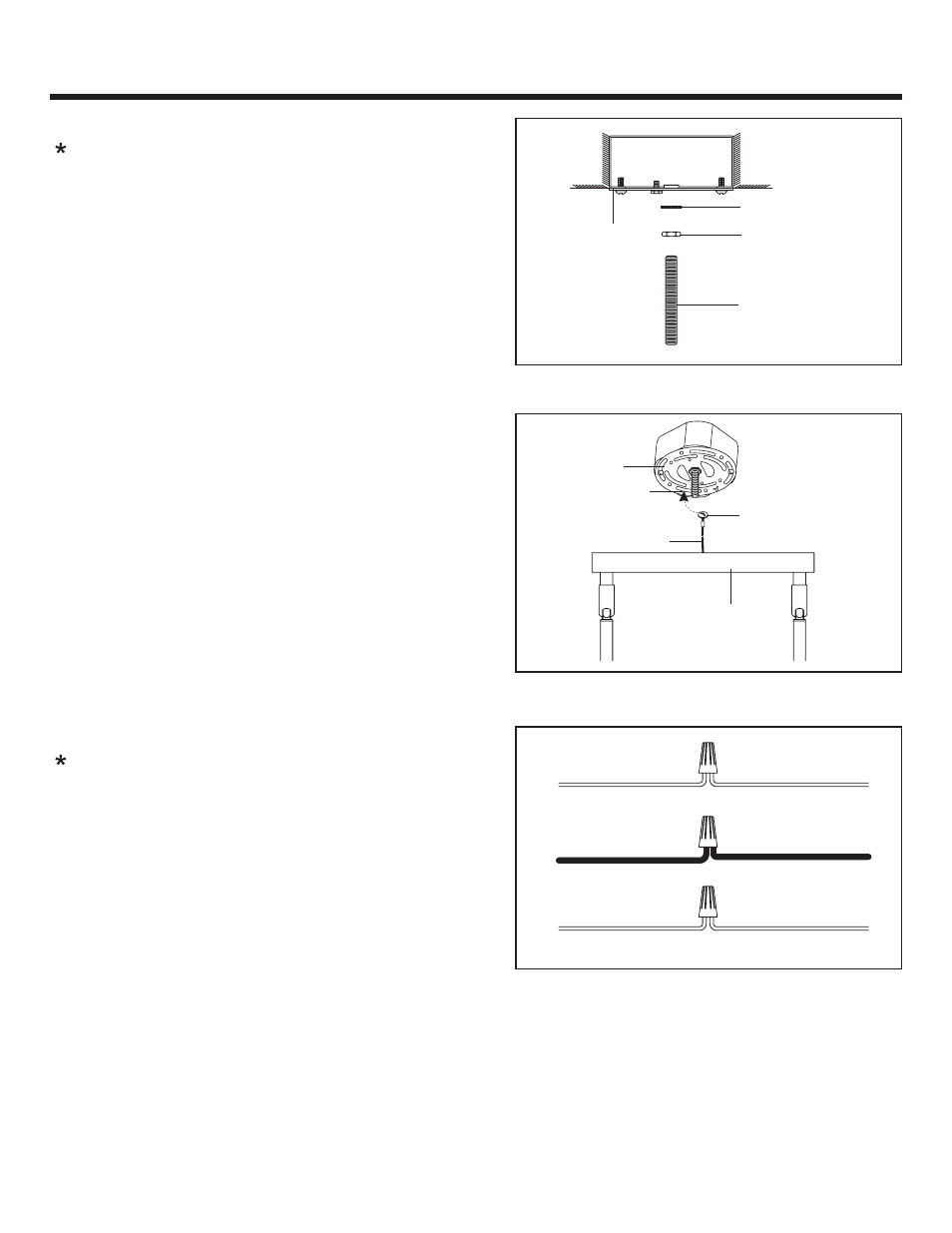

INSTALLATION INSTRUCTIONS

4 OF 5

Crossbar

Lock Washer

Hex Nut

Nipple

STEP 6:

a. Thread one Hex Nut onto top end of the Nipple.
b. Place one Lock Washer over the top end of the Nipple

and then thread the Nipple into the center lock hole of
the Crossbar.

c. Using pliers, thread the Hex Nut against the Crossbar

and hand-tighten until snug.

Pliers is required on this step.

STYLE NUMBER: TY628AN, TY628WT

STEP 8:

a. Connect the House Ground Wire to the Fixture Ground

Wire.

b. Connect the House White (or Ribbed) Wire to the

Fixture Supply Wire (Black or Smooth Side).

c. Connect the House Black (or Red) Wire to the Fixture

Supply Wire (Black or Smooth Side).

d. Wrap each connection with approved electrical tape

and carefully stuff all of the connected wires into the
Outlet Box.

WHITE OR RIBBED

BLACK (OR RED) WIRE

GROUND WIRE

WHITE OR RIBBED

BLACK OR SMOOTH

GROUND WIRE

FROM HOUSE

FROM HOUSE

FROM HOUSE

FROM FIXTURE

FROM FIXTURE

FROM FIXTURE

Use Wire Connectors (not supplied) to connect the

wires.

STEP 7:

a. Locate the Ceiling Canopy onto the Crossbar and slip

the Button Stop on the end of Lanyard into the Slot on
the Crossbar as shown.

Slot

Lanyard

Ceiling Canopy

Crossbar

Button Stop
