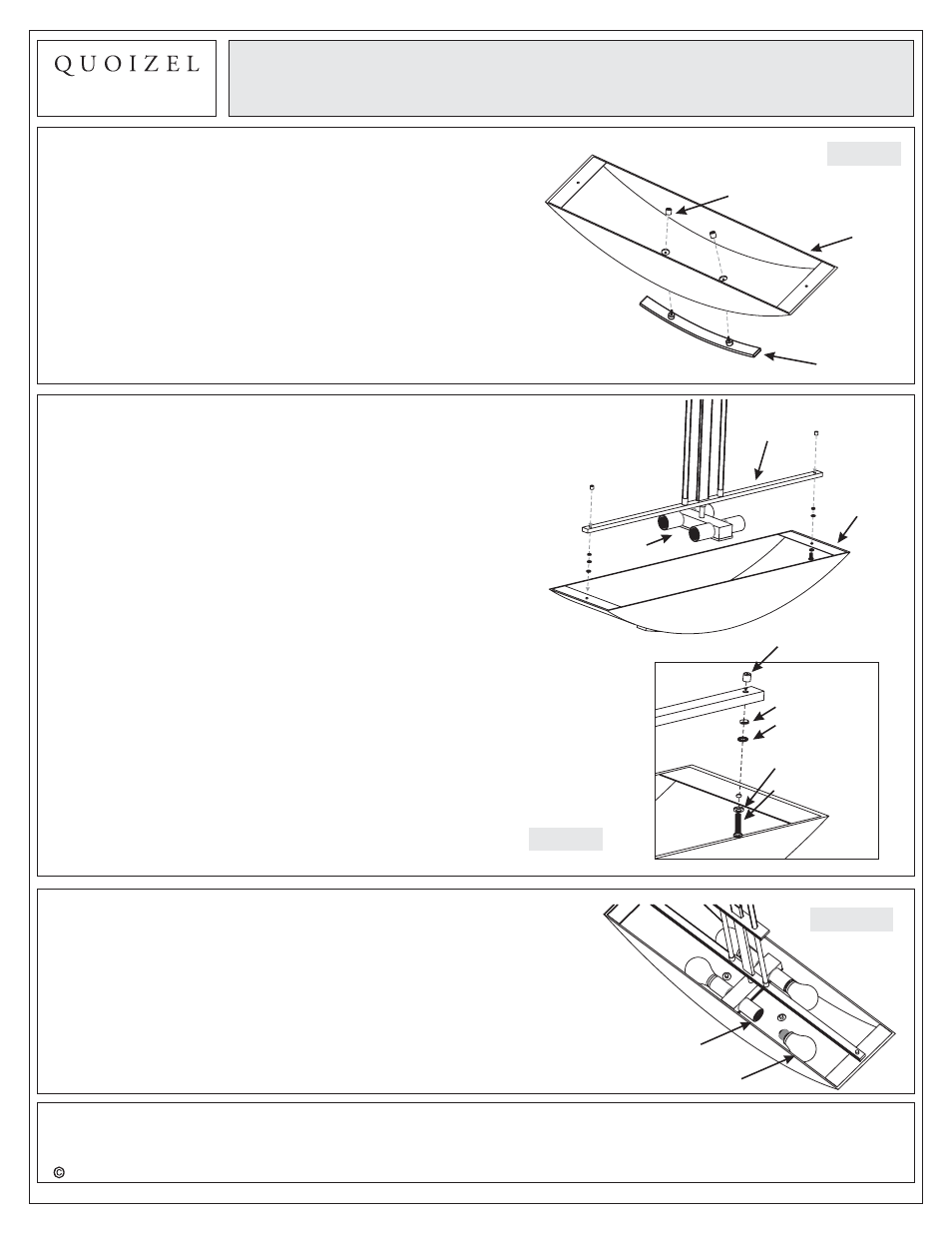

STEP 8 Attach Bending Iron to Shade
-
A. Attach the Bending Iron (R) to the bottom of the Shade
(K) and secure with Mounting Ball (E). Hand tighten
until snug.
Mounting Ball
Shade
Figure 10
Figure 11
Shade
Socket
Assembly
STEP 9 Attach Shade to Socket Assembly
-
A. Place the Flat Washer (M) over the Short Screw (N),Pass
Short Screw (N) through the Hole on the Shade (K) and Lock
Washer (C) over the Short Screw (N). S
Hex Nut
(D) and tighten until snug.
B. Pass the Short Screw (N) through the holes on the Bar of the
Socket Assembly (P). Secure by threading Balls
(E) onto the Bolts. Hand tighten until snug.
ecure with
Mounting
Bending Iron
Mounting Ball
Assembly Instruction Sheet #IS-TFLU433K
For Style TFLU433K
Figure 12
Bulb
Socket
STEP 10 Install Bulb
-
A. This fixture uses standard bulb with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your lamp island fixture is now assembled and ready to use.
Enjoy!
Bar
