Assembly Instruction Sheet #IS-TFLU433K
For Style TFLU433K

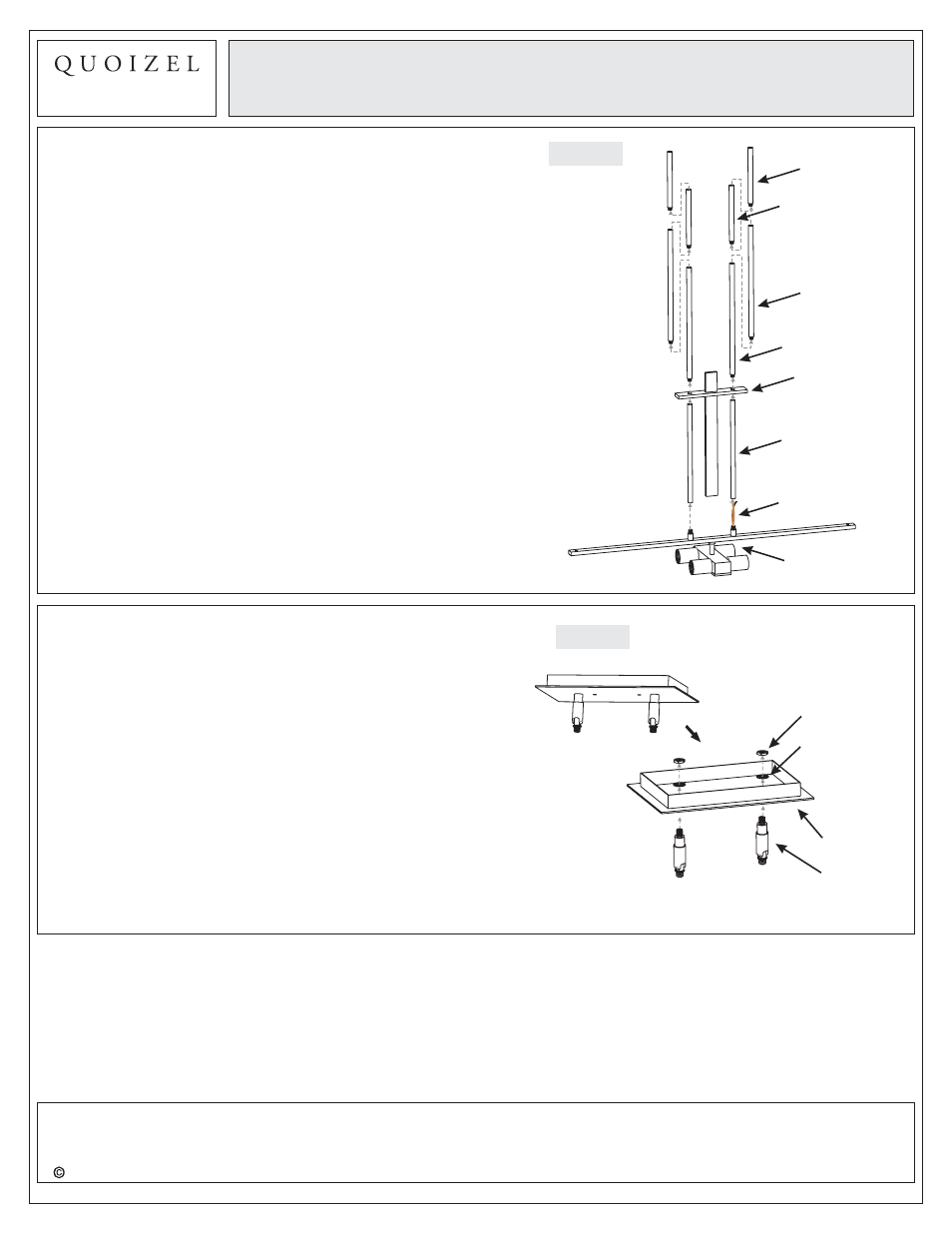

STEP 1 Assemble Rods
-
A. Determine the Rods (H/M) to be assembled according to
your hanging height.
B. Pass Supply Wires and Ground Wire through the Rod (H),
the Cross Part (G) and the chosen Rods (H/M).
C. Thread one end of the Rod (H) onto the nipple on the top
of the Socket Assembly (J). Hand tighten until snug.
D. Place the Cross Part (G) onto the top ends of Rods (H).
Thread the chosen Rods (H/M) into the top ends of the
Rods (H) as shown. Hand tighten until snug.
12” Rod with
Nipple
6” Rod with
nipple
6” Rod with
Nipple
12” Rod with
Nipple
12” Rod
Cross Part
Socket
Assembly
Supply Wire and
Ground Wire
Figure 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Figure 2
Ceiling
Canopy
Lock Washer
Hex Nut
Swivel
STEP 2 Disassemble Ceiling Canopy
-
A. Disassemble every single parts pre-assemled on the
Ceiling Canopy as shown in the illustration.
