Step 7, Installation instructions, Step 4 – Quoizel ER1814IS Emery User Manual
Page 3: Step 5, Step 6
3 OF 4
Outlet Box
Mounting Screw
Ceiling
Canopy
Mounting Ball
Socket
Socket Upper Collar
Shade
Steel Collar
Socket Collar
with Harp
STEP 7
:
a
Install correct Bulb referring to fixture markings and/or labels for maximum wattage.
.
INSTALLATION INSTRUCTIONS
STYLE NUMBER ER1814IS ER1814PN
:
,

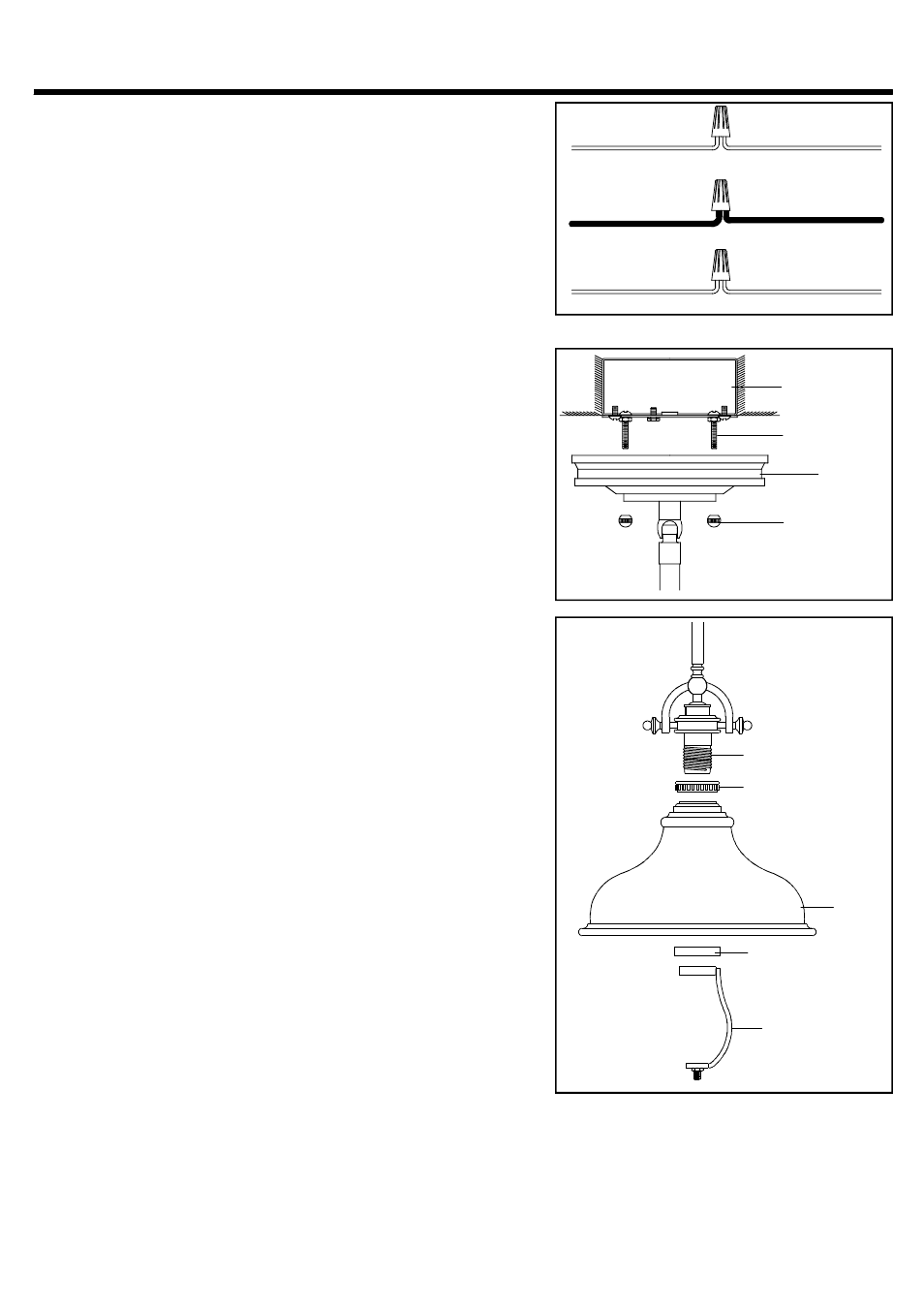

STEP 4
:
*
(
)
.
.
.
(
)
(
)
.
(
)
(
).
.
.
Use Wire Connectors not supplied to connect the
wires
a
Connect the House Ground Wire to the Fixture Ground
Wire.
b
Connect the House White
or Ribbed
Wire to the
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red
Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet
Box
STEP 5
:
a
Place the Ceiling Canopy over the Mounting Screws and
thread Mounting Balls onto the Mounting Screws to secure
it. Hand tighten until snug.
.
STEP 6
:
a
Place the Socket Upper Collar
the Shade and the Steel
Collar over the Socket as shown. Thread the Socket
Collar with Harp onto the Socket and hand tighten until
snug to secure them
.
,
.
WHITE OR RIBBED
BLACK OR RED WIRE
(
)
FROM HOUSE
GROUND WIRE
GROUND WIRE
FROM HOUSE
FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE
FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
