INSTALLATION INSTRUCTIONS
2 OF 4
6” Rod
12” Rod
12” Rod
6” Rod
Socket Assembly
Swivel
Ceiling
Canopy
Supply Wire with
Ground Wire
Upper Rod
Supply Wires with
Ground Wire
STYLE NUMBER ER1814IS ER1814PN : ,

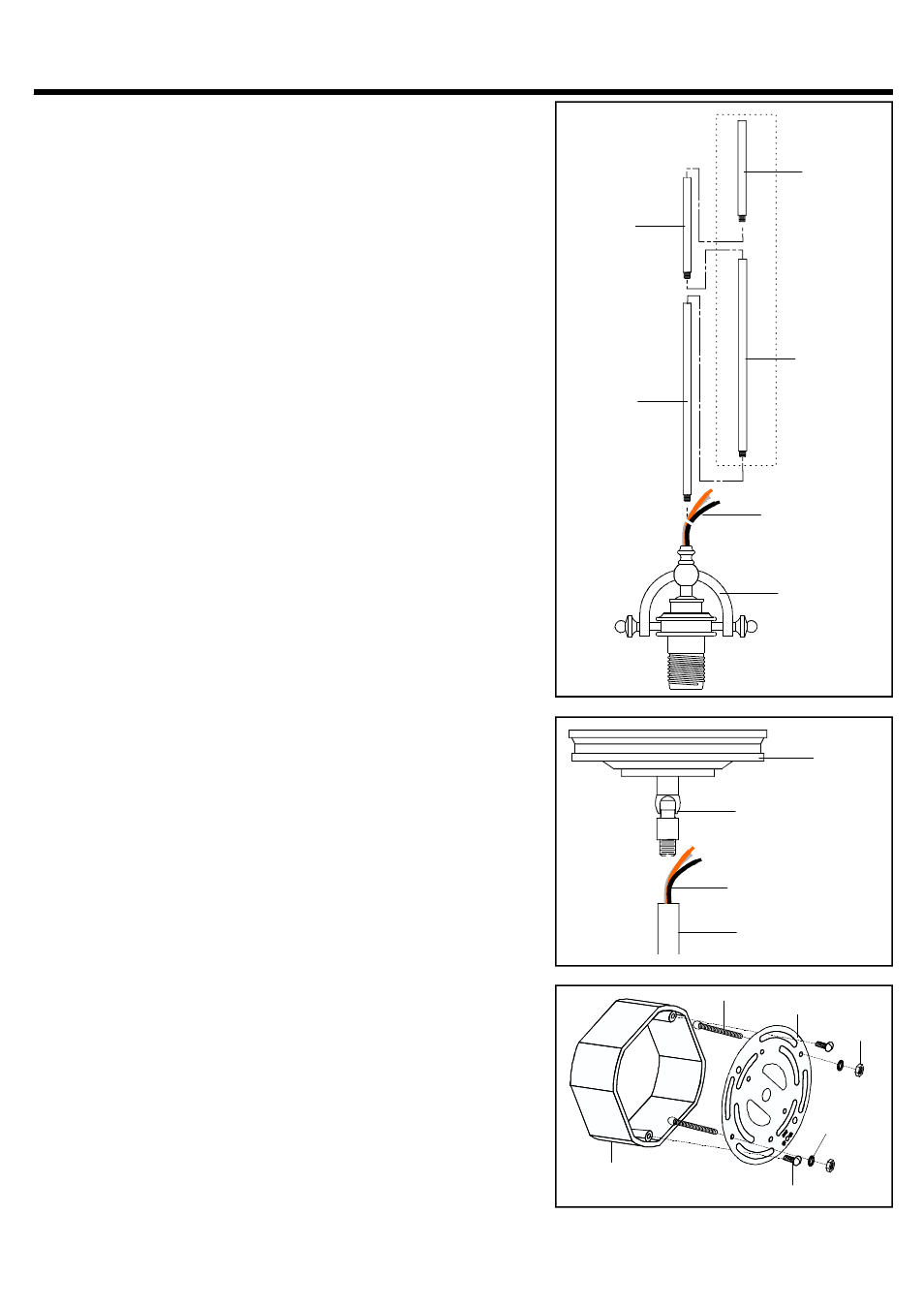

STEP 1:
a Determine the Rods to be assembled according to your
desired hanging height.
b Pass the Supply Wires with Ground Wire through the
chosen Rods and then thread Rods and Socket Assembly
together as shown. Tighten until snug.
.
.
STEP 2:
a Pass the Supply Wires with Ground Wire through the
Swivel and Ceiling Canopy.
b Thread the Swivel onto the top end of the Upper Rod and
hand tighten until snug.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
STEP 3:
a Screw the Mounting Screws into the Crossbar place the
Lock Washers over the Mounting Screws and thread the
Hex Nuts onto the Mounting Screws as shown
Secure the
position of the Mounting Screws by tightening the Hex Nuts
against the Crossbar
b Secure the Crossbar to the Outlet Box with Outlet Box
Screws
. ,
.
.
.
.
