Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
4of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.

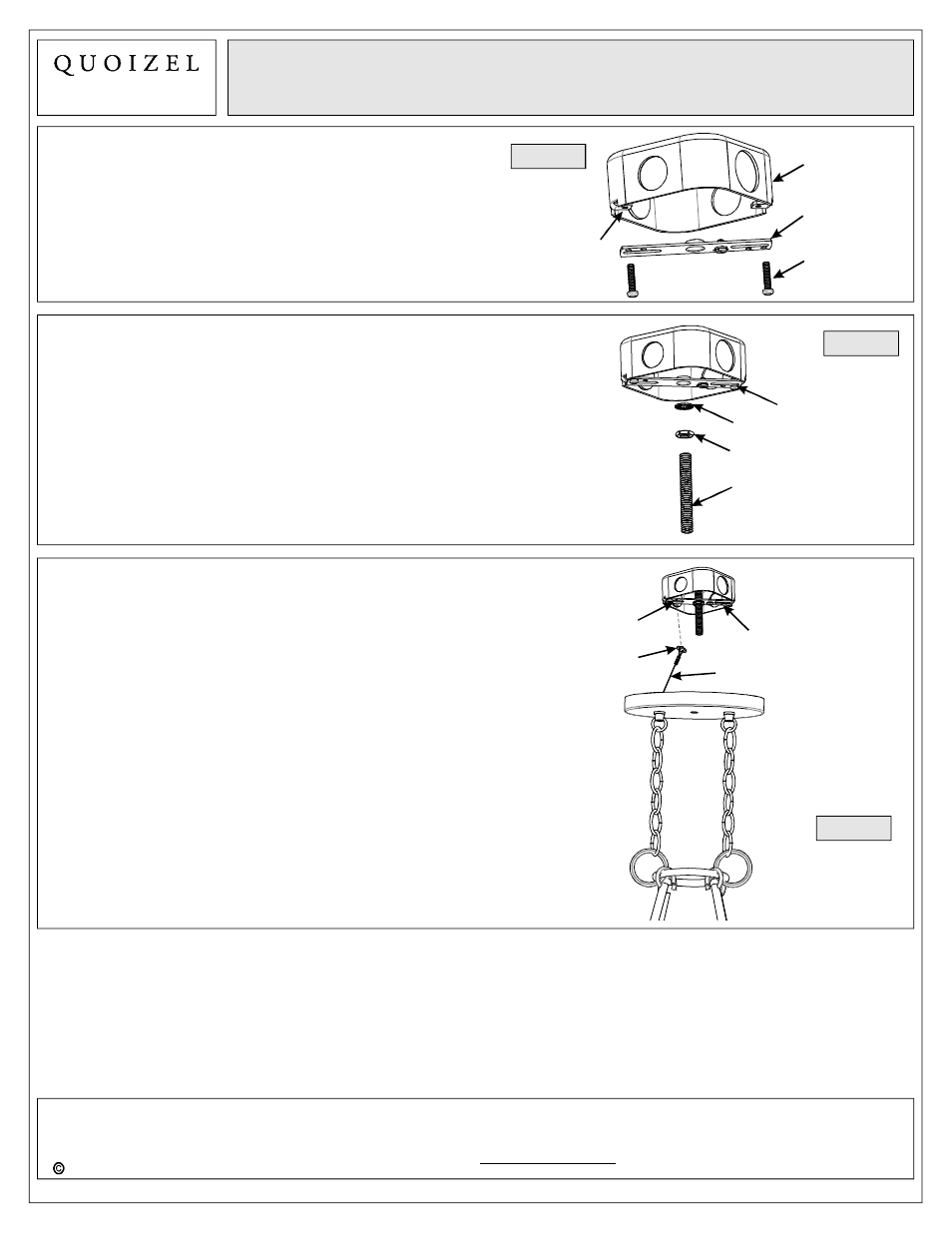

STEP 4 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Figure 4
Outlet Box
Screw (not
Supplied)
Crossbar
Outlet Box
Mounting
Hole
Figure 5
STEP 5
Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Socket
Crossbar
Lock Washer
Hex Nut
2013 QuoizelInc.
Assembly Instruction Sheet #IS-VYR5008ML
For Style VYR5008ML
November 2013
Figure 77
STEP 6 - Attach Lanyard
A. The purpose of the lanyard is to provide the installer a
means to support the fixture from the junction box while
connecting the electrical wires. This enables the fixture
to hang from the junction box and your hands are free to
make the wire connections.
B. Turn the Button Stop so it is inserted into the crossbar
slot. Make sure the Button Stop is completely inside the
crossbar. Slowly release the fixture to make sure it is
supported by the Button Stop. Proceed to the wiring
steps. Once you are complete with the wiring there is
nothing to do with Lanyard. The Lanyard will push into
the junction box when the fixture is placed for final
mounting.
Crossbar
Button Stop
Lanyard
Slot
