Assembly Instruction Sheet #IS-VYR5008ML
For Style VYR5008ML
November 2013

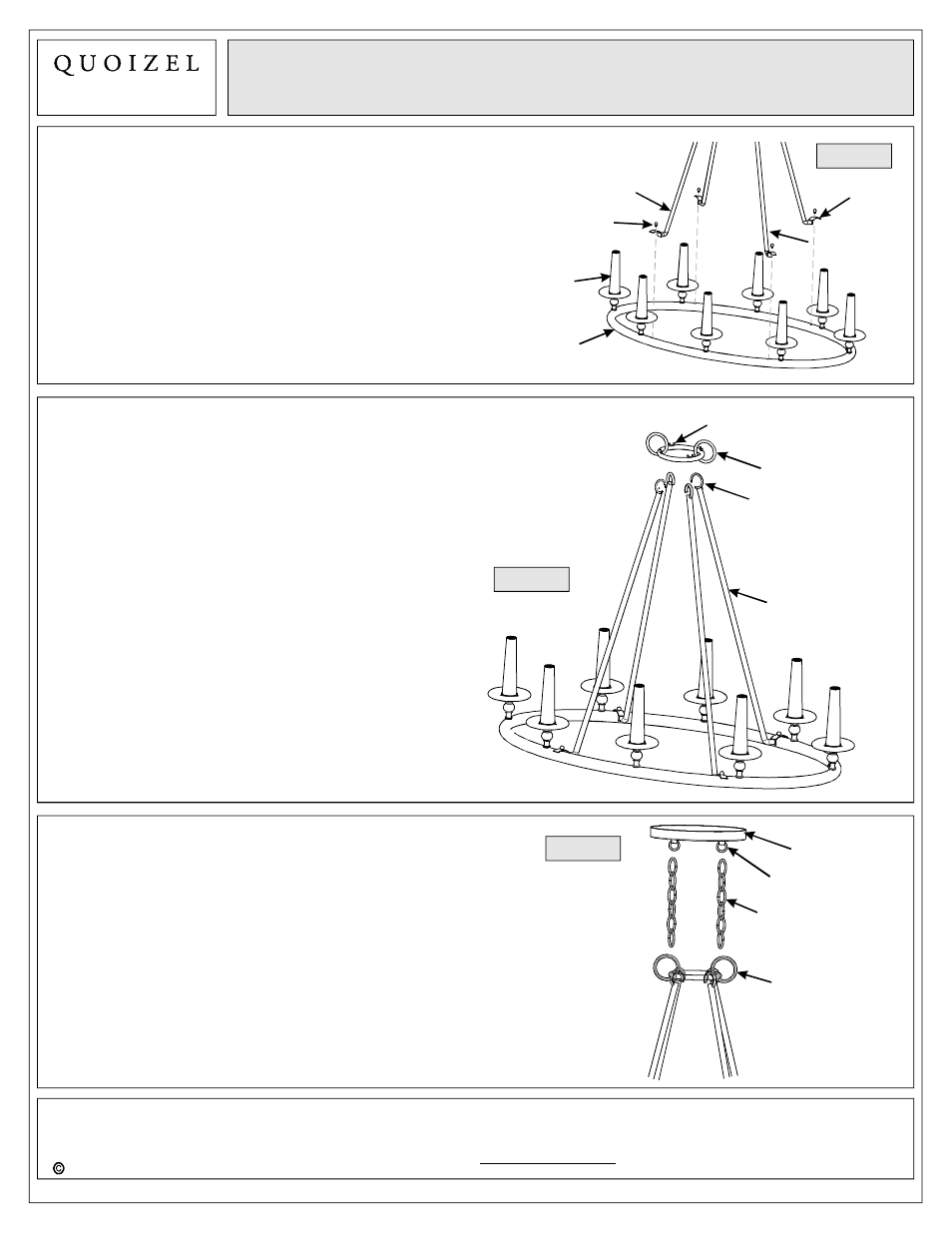

STEP 1 Install - Side Arms
A. Attach the Tabs at the ends of the Side Arms (I/J) to
the Ring of the Socket Assembly (M). Line up the
holes on the Tabs and the mounting holes on the
Ring. Thread Lock Screws (K) into the mounting
holes on the Ring to secure Side Arms (I/J). Hand
tighten until snug.
Side Arm-A
Tab
Ring
Lock Ball
STEP 2 Attach Fixture Ring to Fixture -
A. Attach the Hooks on the Side Arms (I/J) to Hook Holders
on the Fixture Ring (L)
.
Fixture Ring
Figure 2
Side Arm
STEP 3 Assemble Ceiling Canopy, Fixture
Chain, Fixture Body together
-
A. Attach one ends of Fixture Chains (H) to Ceiling Loops on
the bottom of the Ceiling Canopy (E). Attach another ends
of Fixture Chains (H) to Fixture Ring (L).
Ceiling
Canopy
Fixture Chain
Figure 3
Ceiling Loop
Fixture Ring
Side Arm-B
Figure 1
Socket
Assembly
Hook Holder
Hook
