Quoizel UPPS2813BN Uptown Penn Station - Manual (Page 4)

Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
4of7

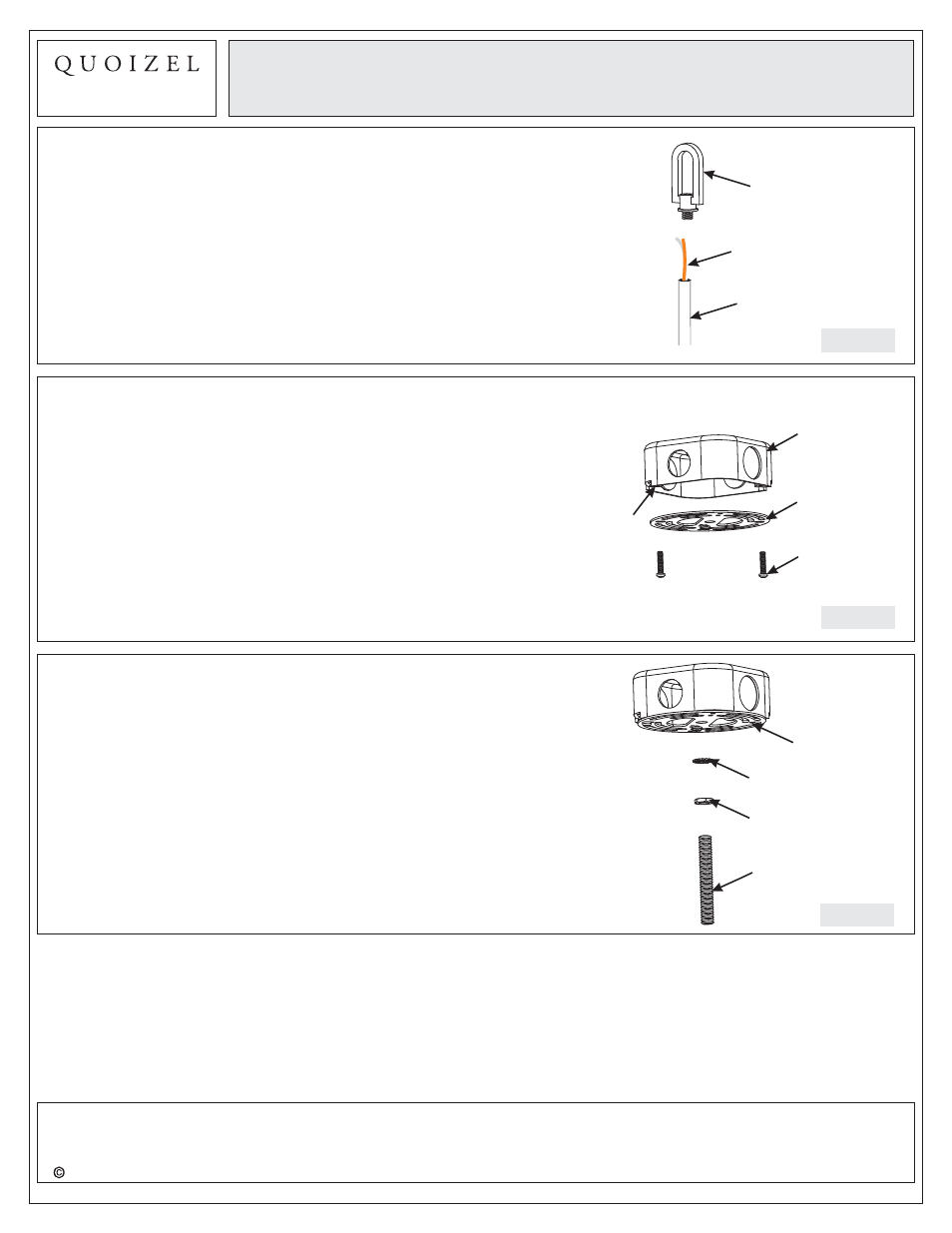

STEP 4
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 4
Crossbar
Outlet Box
Mounting
Hole
STEP 3 Assemble to Upper Rod
-
Fixture Loop
A. Pass Supply Wires and Ground Wire through the Fixture
Loop (I) then thread the Fixture Loop (I) and the Upper
Rod together. Hand tighten until snug.
Figure 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Assembly Instruction Sheet #IS-UPPS2813BN
For Style UPPS2813BN
May2014
Figure 5
STEP 5 Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Nipple
Crossbar
Lock Washer
Hex Nut
Fixture Loop
Upper Rod
Supply Wire and
Ground Wire
