Figure 1
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
3of7

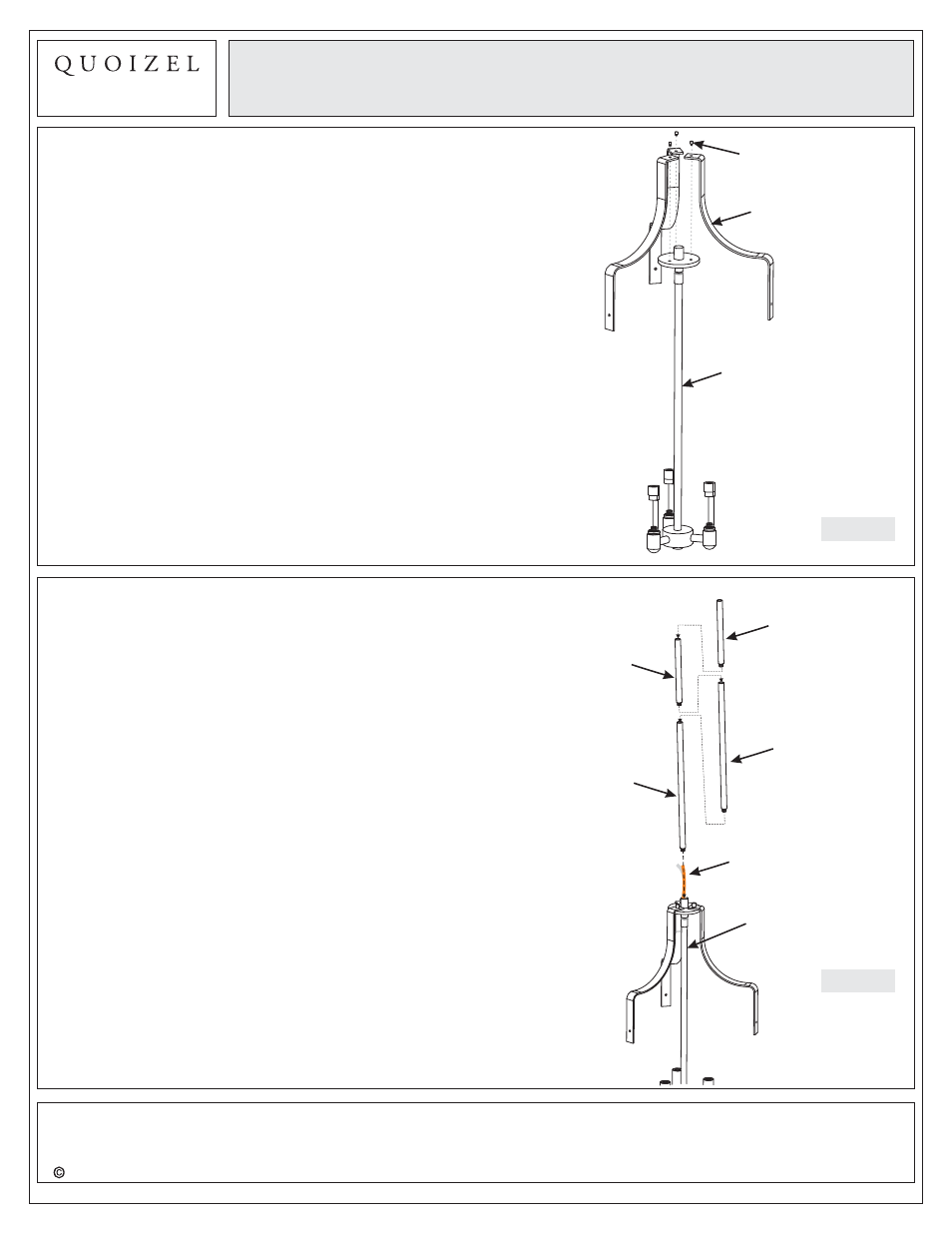

STEP 1 Assemble Side Arm to Socket
Assembly
-
A. Line up the Mounting Hole on the Socket Assembly (Q)
and the Hole on the Side Arm (P). Secure by threading the
Lock Ball (L) into the Mounting Hole on the Socket
Assembly (Q). Hand tighten until sung.
Socket
Assembly
Side Arm
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Assembly Instruction Sheet #IS-UPPS2813BN
For Style UPPS2813BN
May2014
Lock Ball
Figure 2
STEP 2 Assemble Rods
-
A. Determine the Rods (J/K) to be assembled to the Socket
Assembly (Q) according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (J/K) and then thread the chosen Rods (J/K) and the
Socket Assembly (Q) together. Hand tighten until snug.
12” Rod
6” Rod
6” Rod
12” Rod
Socket
Assembly
Supply Wire and
Ground Wire
