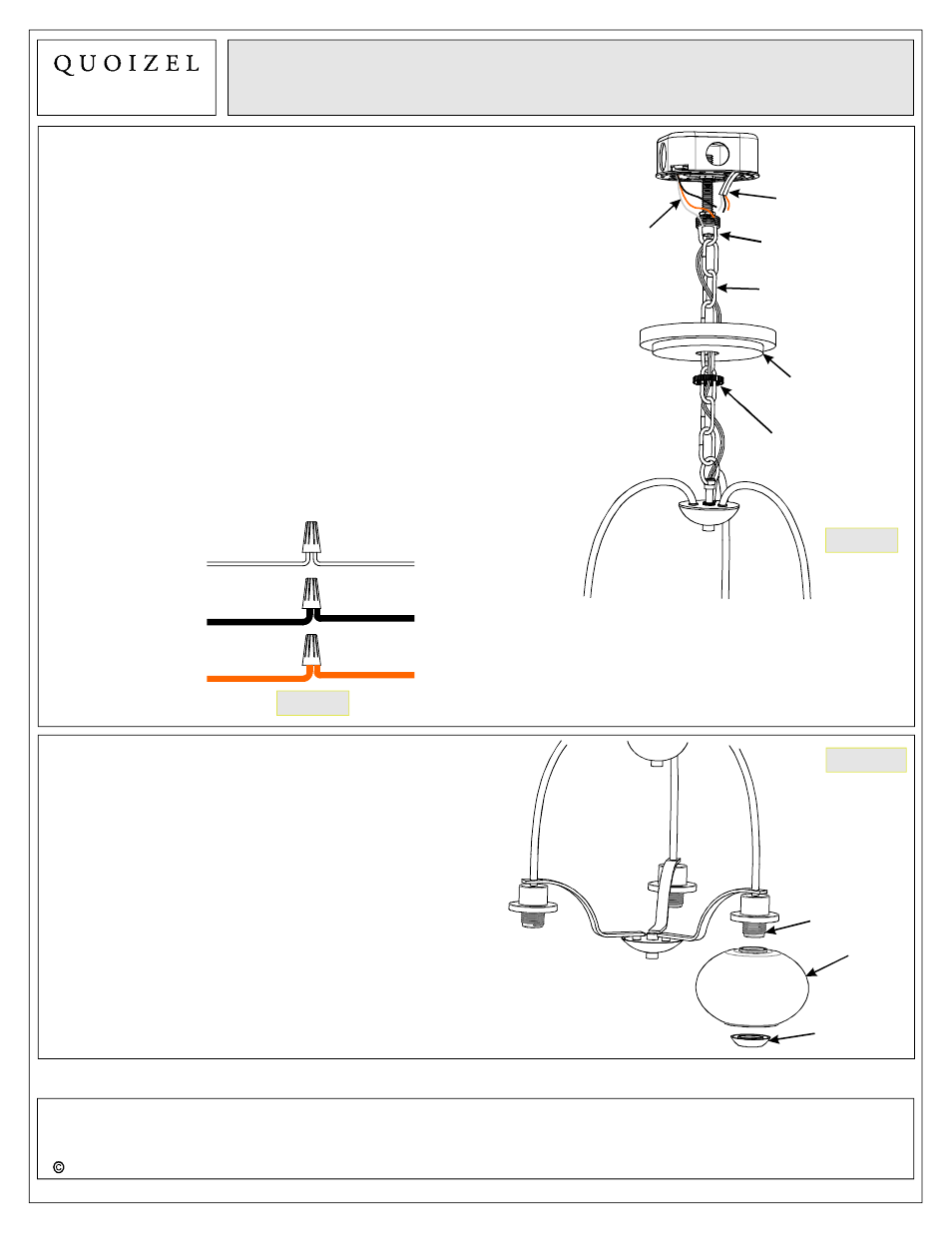

STEP 8 - Make Wire Connections
A. Un-thread the Canopy Lock Ring (F) and slide Canopy Lock
Ring (F) and Ceiling Canopy (H) down the Fixture Chain (G).
B. Push all slack fixture wire through Canopy Chain Loop (E)
into Outlet Box. Trim excess fixture wire leaving a minimum
of 6 inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (H) as shown in Step 5.
Figure 9
White wire from supply Bibbed side from fixture
Black wire from supply
(or Red)
Smooth side from fixture
Ground wire from supply Ground wire from fixture
Assembly Instruction Sheet #IS-TRG5103OZ
For Style TRG5103OZ
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Figure 8
2013 QuoizelInc. September2013
STEP 9 Install - Shade
A. Place the Shade (J) over the Socket and secure with the
Socket Collar (K). Hand tighten until snug.
Shade
Socket
Figure 10
Socket
Collar
Canopy Chain
Loop
Fixture Chain
Supply Wire and
Ground Wire
Supply Wire and
Ground Wire from
Outlet Box
Ceiling Canopy
Canopy Lock Ring
