Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of7
Assembly Instruction Sheet #IS-TRG5103OZ
For Style TRG5103OZ
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc. September2013

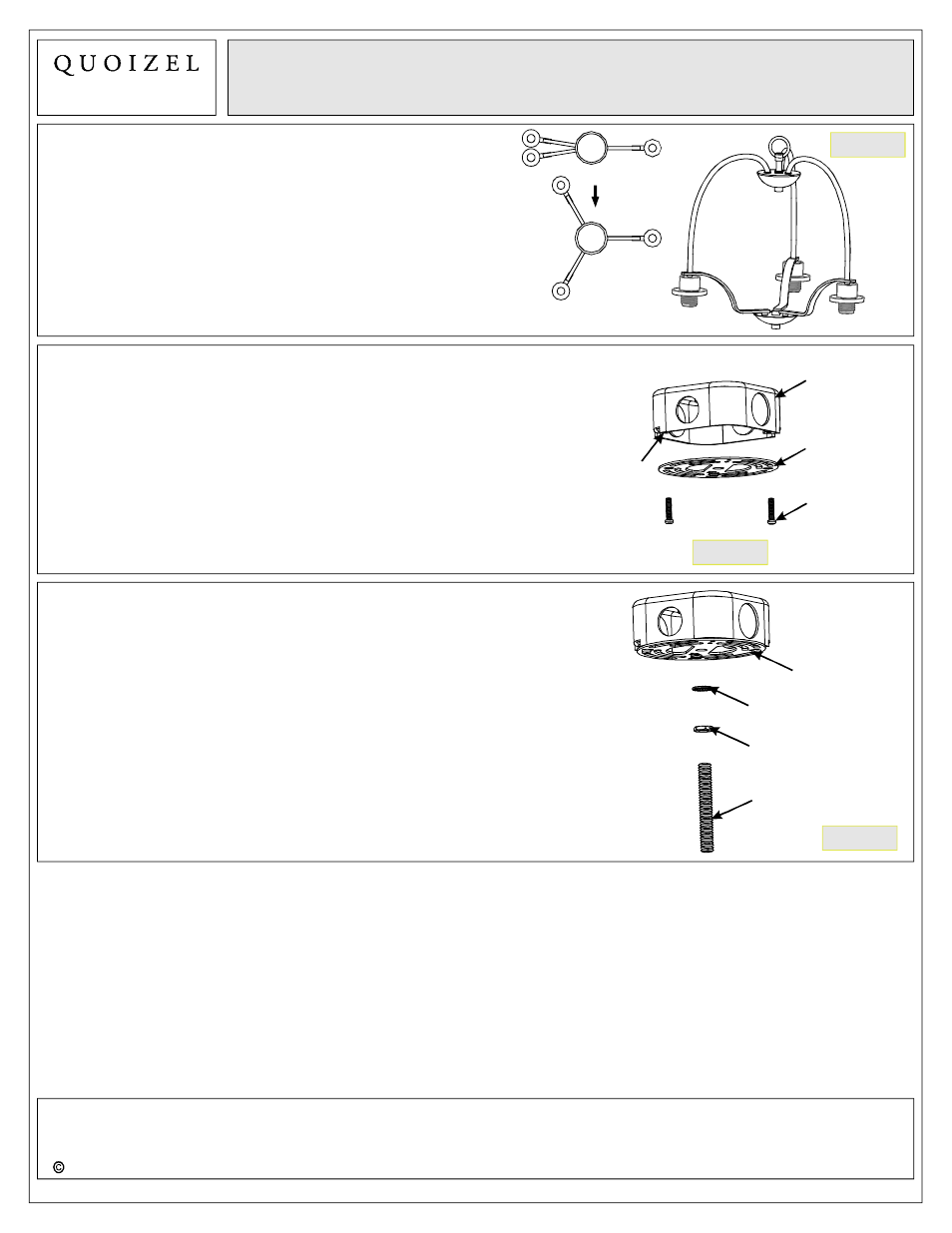

STEP 1 Adjust Assembly - Socket
A. Unfold support arms on assembly to proper
locations.
Socket
Figure 1
STEP 2 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 2
Crossbar
Outlet Box
Mounting
Hole
Figure 3
STEP 3 Attach Nipple to Crossbar -
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Nipple
Crossbar
Lock Washer
Hex Nut
