7of8

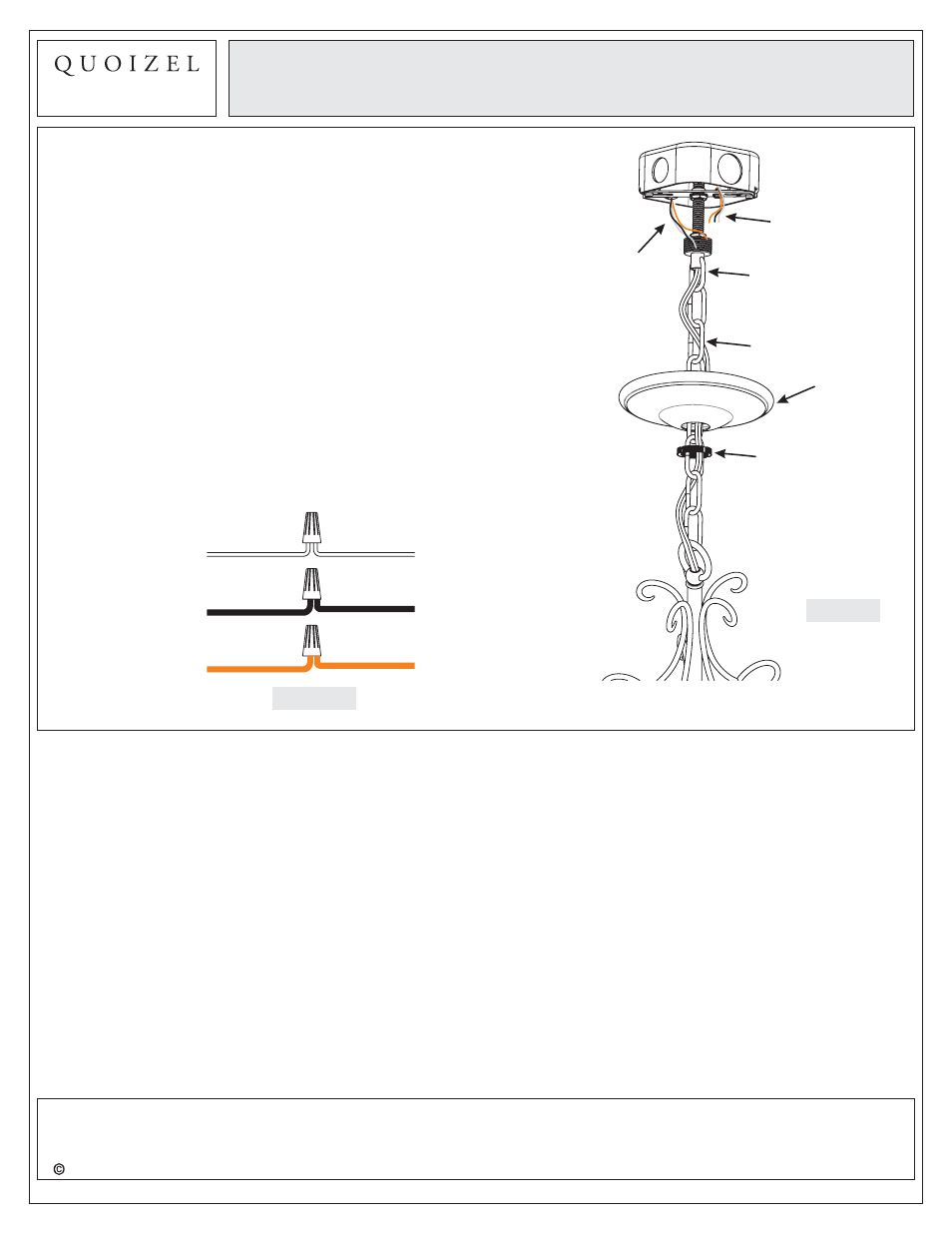

Figure 9
STEP 9
- Make Wire Connections
A. Un-thread the Canopy Lock Ring (G) and slide Canopy Lock
Ring (G) and Ceiling Canopy (E) down the Fixture Chain (H).
B. Push all slack fixture wire through Canopy Chain Loop (F)
into Outlet Box. Trim excess fixture wire leaving a minimum
of 6 inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 6.
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
Supply Wire
and Ground
Wire from
Outlet Box
Ceiling
Canopy
Canopy Lock Ring
Figure 10
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
Assembly Instruction Sheet #IS-QMC1199FR
For Style QMC1199FR
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 QuoizelInc. May2012
