4of8

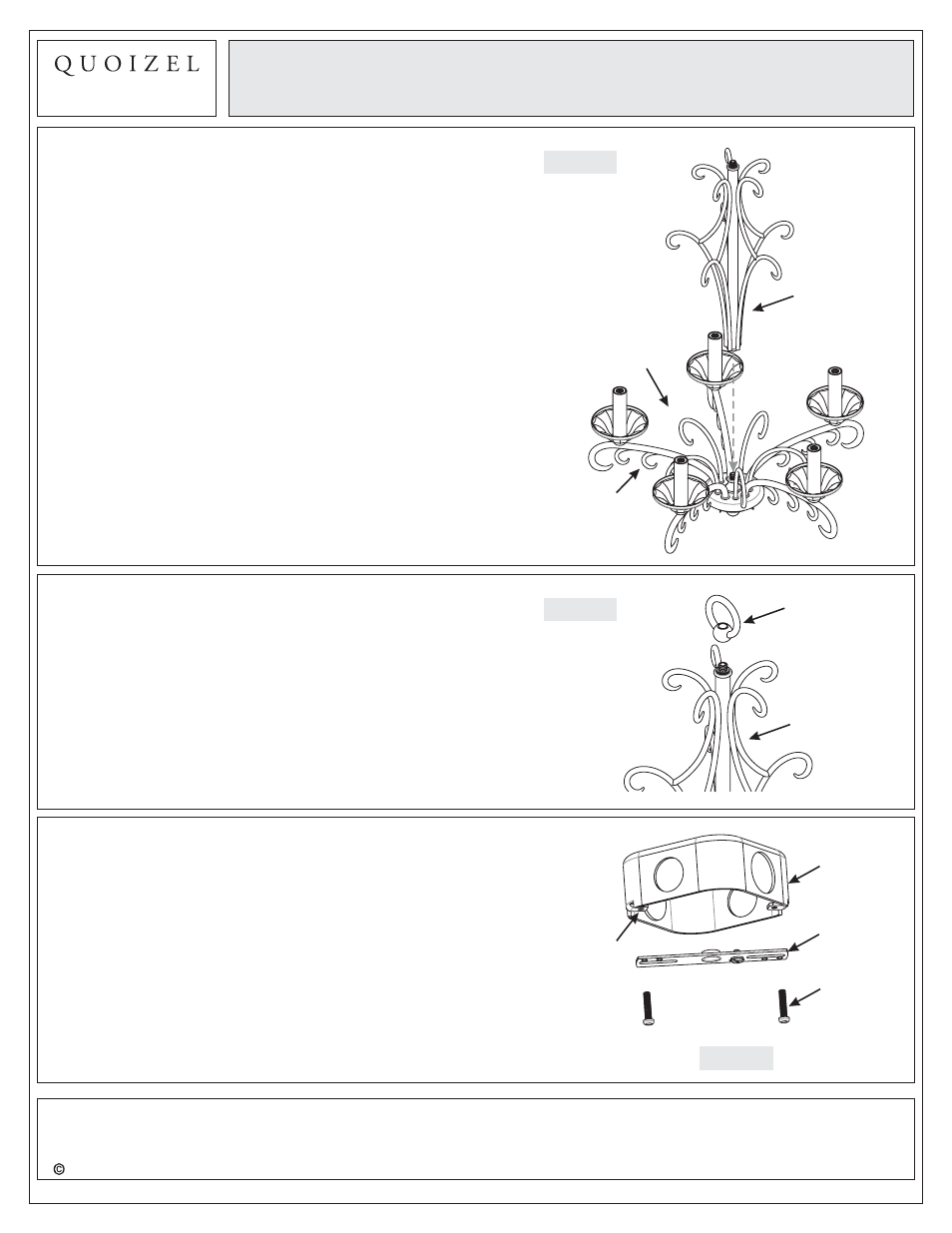

STEP 1
- Assemble Center Rod Assembly and
Socket Assembly
A. Unfold Support Arms on the Socket Assembly (K) to
proper locations.
B. Thread the bottom end of the Center Rod Assembly (J)
onto the nipple on the top center of the Socket
Assembly (K) as shown. Hand tighten until snug.
Center Rod
Assembly
Socket
Assembly
Figure 1
Assembly Instruction Sheet #IS-QMC1199FR
For Style QMC1199FR
STEP 2
- Assemble Fixture Loop
A. Thread the Fixture Loop (I) onto the nipple on the top
end of the Center Rod Assembly (J) as shown. Hand
tighten until snug.
Figure 2
Center Rod
Assembly
Fixture Loop
STEP 3
- Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Screw (not
Supplied)
Figure 3
Crossbar
Outlet Box
Mounting
Hole
Support Arm
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 QuoizelInc. May2012
