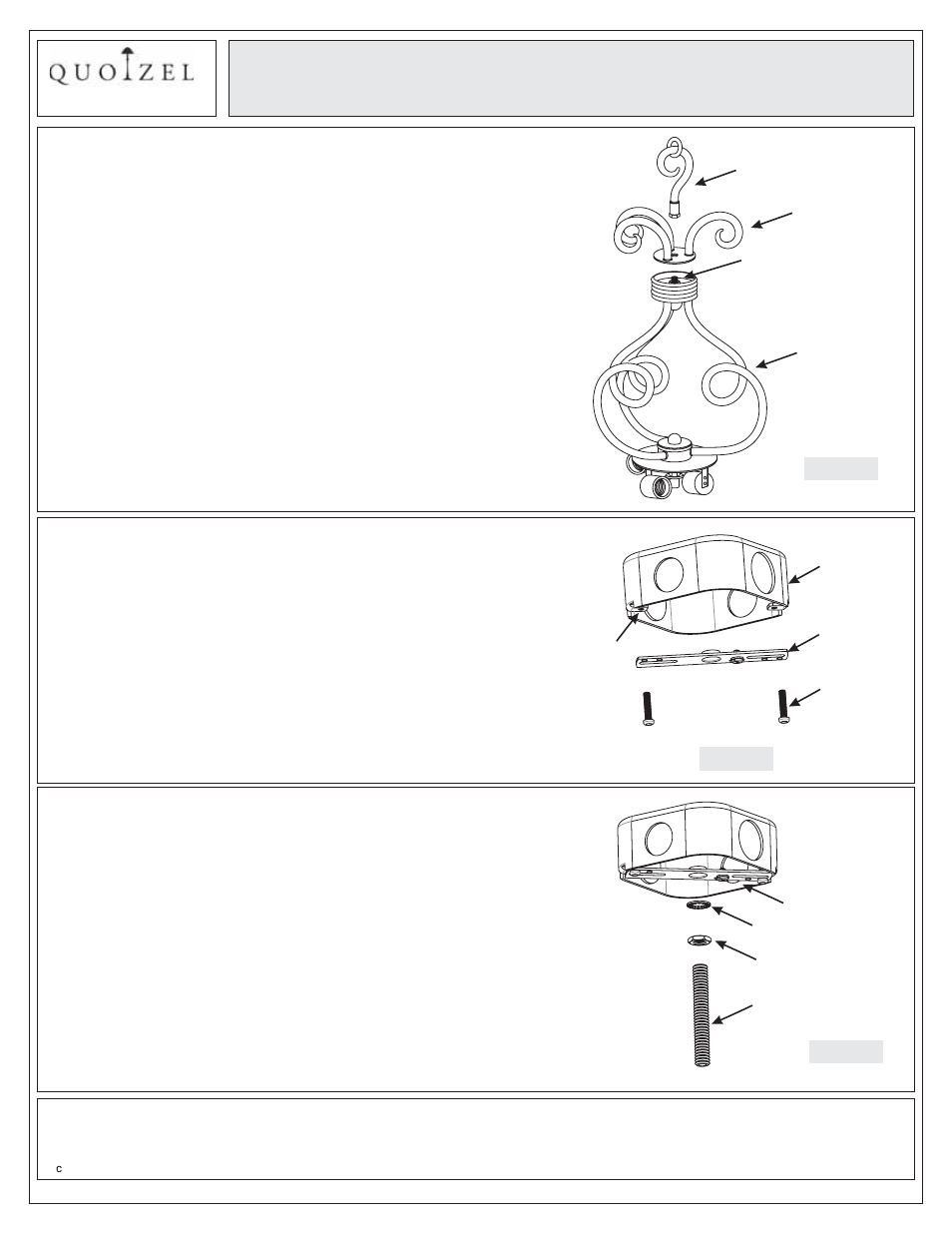

STEP 1
- Assemble Socket Assembly, Scroll
Part and Fixture Loop
A. Locate the center hole of the Scroll Part (J) over the
nipple in the top center of the Socket Assembly (O).
Secure by threading the Fixture Loop (I) onto the
nipple. Hand tighten until snug.
Figure 1
Fixture Loop
STEP 2
- Attach Crossbar to Outlet Box
A. Secure the Corssbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Figure 3
Scroll Part
Outlet Box
Screw (not
Supplied)
STEP 3 Attach Nipple to Crossbar
-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Socket
Assembly
Socket
Assembly Instruction Sheet #IS-MY2816
For Styles MY2816ML
Nipple
Crossbar
Lock Washer
Hex Nut
Figure 2
Crossbar
Outlet Box
Mounting
Hole
