INSTALLATION INSTRUCTIONS

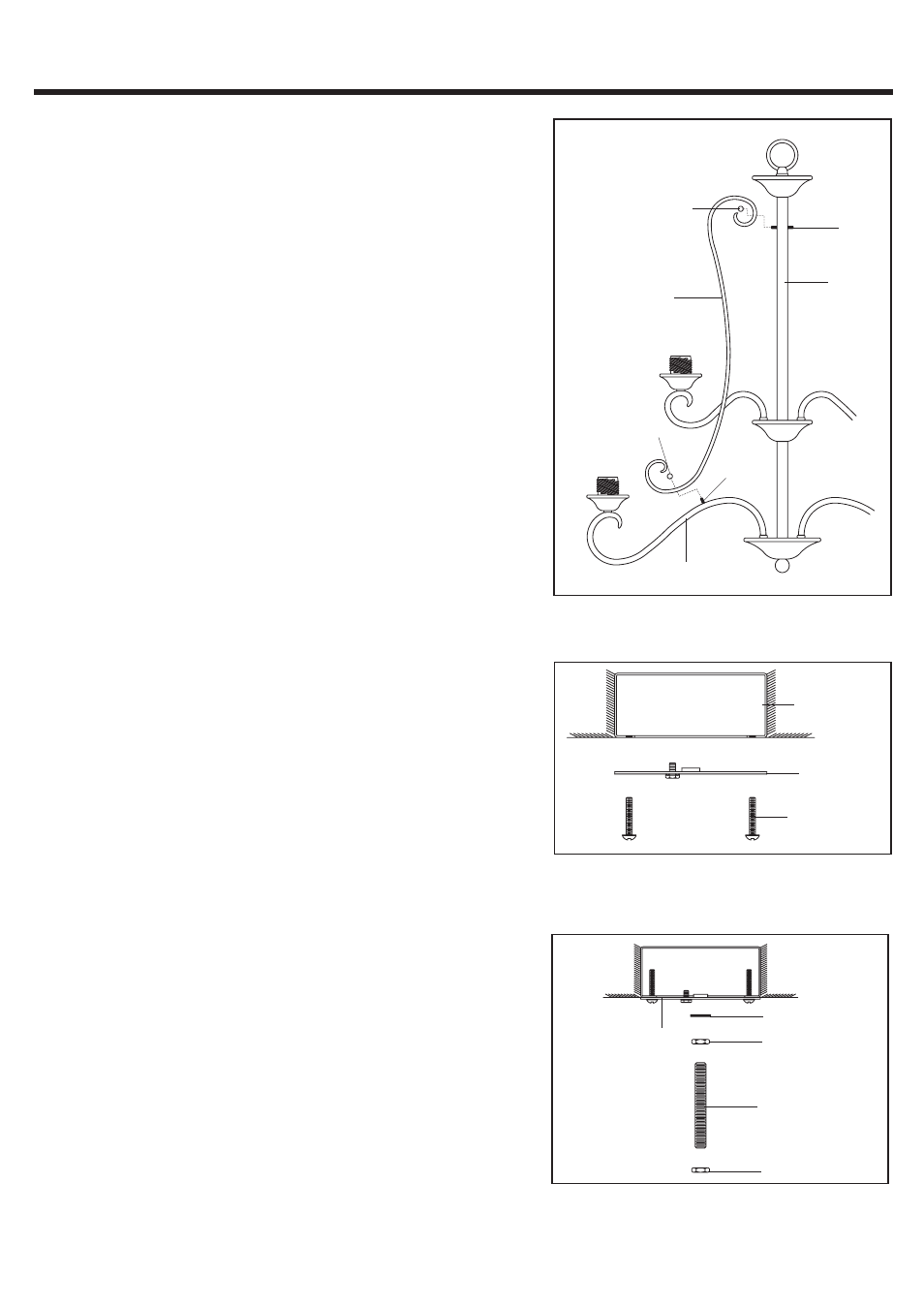

STEP 4 :
a. Pass the holes on the Side Arm over the Bolts on the Spacer
and Support Arm (bottom tier). Secure with the Lock Balls
and hand tighten until snug.
Outlet Box
Crossbar
Outlet Box
Screw
STEP 5 :
a Secure the Crossbar onto the Outlet Box with Outlet Box
Screws Tighten until snug
.
. .
Crossbar
Lock Washer
Hex Nut
Hex Nut
Nipple
STEP 6 :
* .
. .
.
.
. ,
.
.
.
Pliers is required on this step
a Thread one Hex Nut onto top end of the Nipple
b Place one Lock Washer over the top end of the Nipple
and then thread the Nipple into the center lock hole of
the Crossbar
c Using pliers thread the Hex Nut against the Crossbar
and hand tighten until snug
d Thread another Hex Nut onto the bottom end of the
Nipple
3 OF 5
INSTALLATION INSTRUCTIONS
Spacer
Lock Ball
Bolt
Side Arm
Lock Ball
Bolt
Support Arm
STYLE NUMBER DH5009AN, DH5009PN :
