INSTALLATION INSTRUCTIONS
6 OF 7

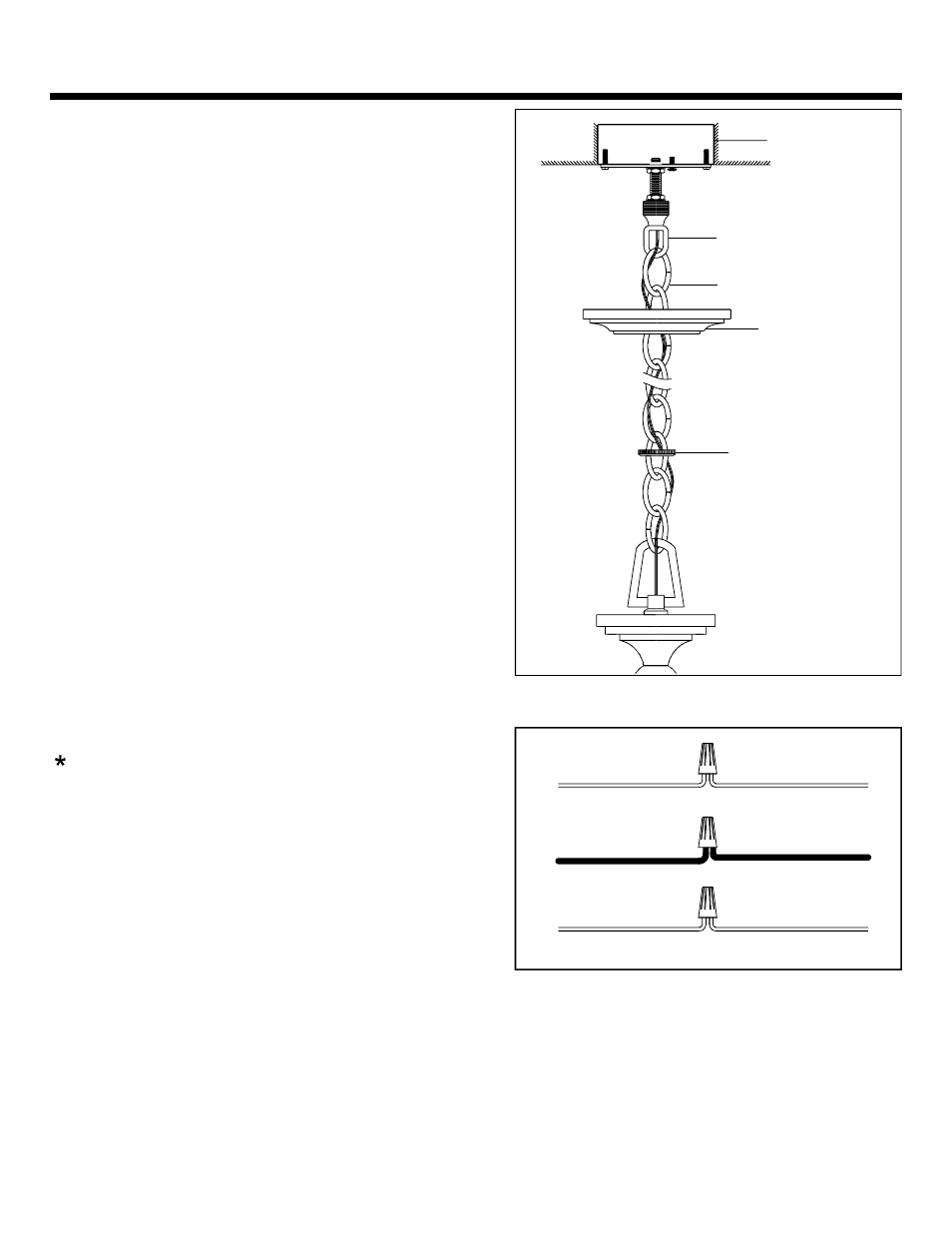

STEP 10:
a. Un-thread the Canopy Lock Ring and slide Canopy
Lock Ring and Ceiling Canopy down the Fixture Chain.
b. Push all slack fixture wire through Canopy Chain Loop
into Outlet Box. Trim excess fixture wire leaving a
minimum of 6 in. Hanging out of the Outlet Box.
c. Refer to STEP 11 to connect the wires.
d. Re-attach the Ceiling Canopy as shown in STEP 7.
Canopy Chain Loop
Ceiling Canopy
Canopy Lock Ring
Fixture Chain
Outlet Box
WHITE OR RIBBED
BLACK (OR RED) WIRE
GROUND WIRE
WHITE OR RIBBED
BLACK OR SMOOTH
GROUND WIRE
FROM HOUSE
FROM HOUSE
FROM HOUSE
FROM FIXTURE
FROM FIXTURE
FROM FIXTURE
STEP 11:
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (White or Ribbed Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
Use Wire Connectors to connect the wires.
STYLE NUMBER: DW5005C
