INSTALLATION INSTRUCTIONS
5 OF 7

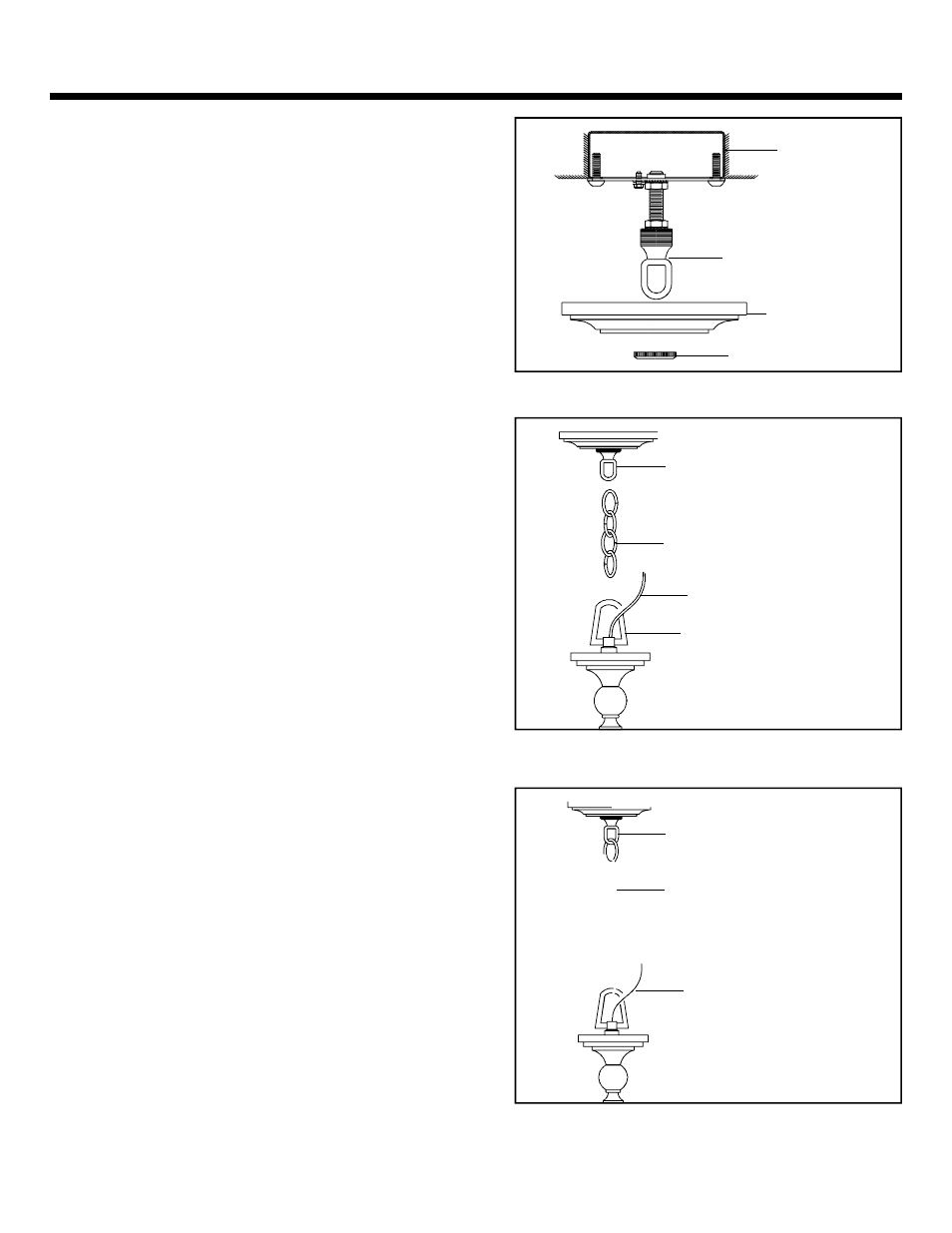

STEP 7:
a. Push the Ceiling Canopy upward over the Outlet Box.
Thread the Canopy Lock Ring onto the Canopy Chain
Loop and tighten until snug to secure the Ceiling
Canopy.
Canopy Chain Loop
Ceiling Canopy
Canopy Lock Ring
Outlet Box
STEP 8:
a. Adjust the Fixture Chain to your desired length by
removing the links if needed. You may need to use
pliers to open the chain links. If so, put a cloth over the
chain to protect the finish from the pliers.
b. Attach one end of the Fixture Chain onto the Canopy
Chain Loop and then attach the other end of the Fixture
Chain onto the Fixture Loop on the top of the fixture.
Canopy Chain Loop
Fixture Chain
Supply Wires
Fixture Loop
STEP 9:
a. Pull the Supply Wires up through the Fixture Chain
alternating links. Push the wires up through the Canopy
Chain Loop into the outlet box. Canopy Chain Loop
Fixture Chain
Supply Wires
STYLE NUMBER: DW5005C
