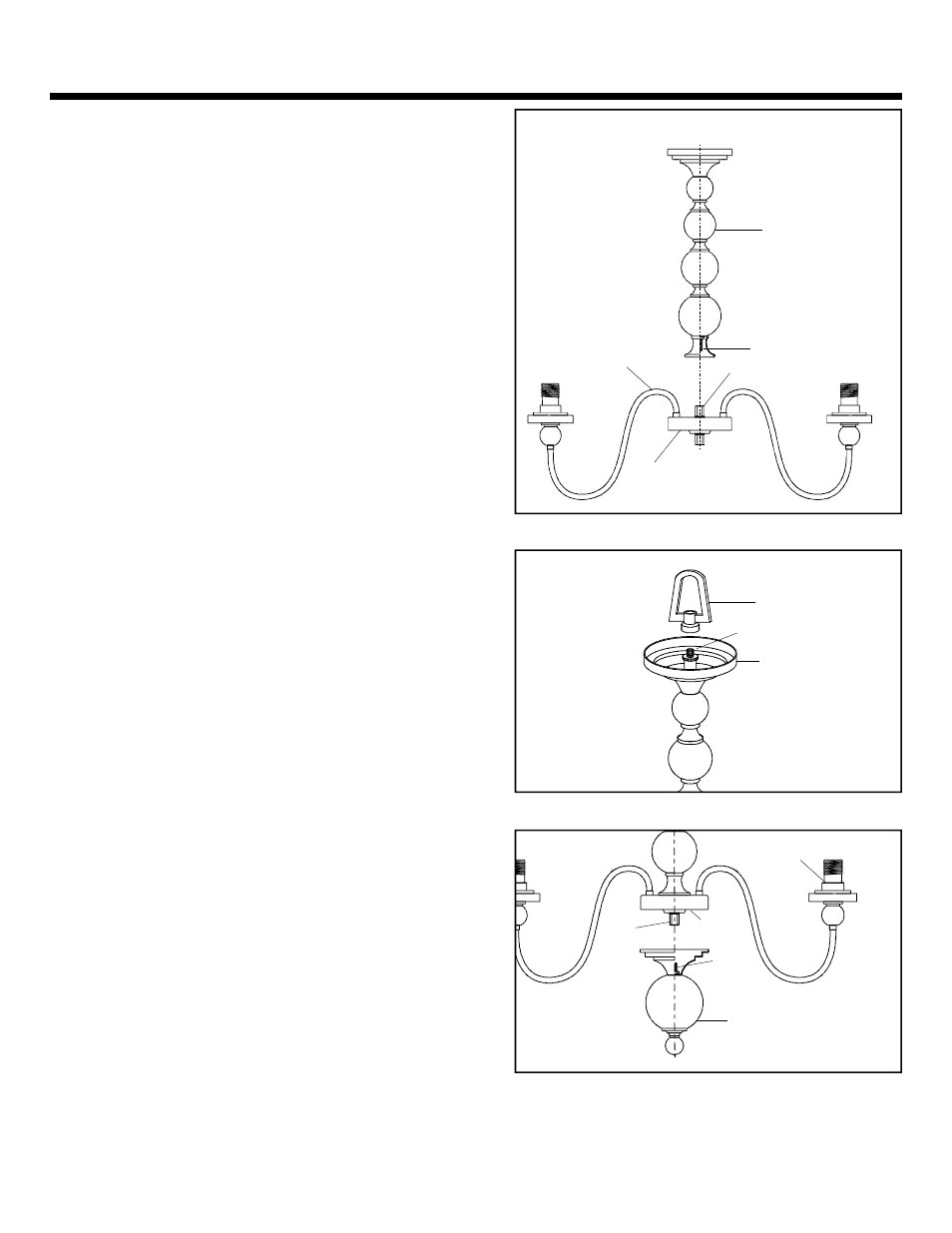

INSTALLATION INSTRUCTIONS
STEP 1:
a. Thread the Upper Assembly onto the Hex Coupling on
the top center of the Junction Box. Hand tighten until
snug.
3 OF 7
STYLE NUMBER: DW5005C
Nipple
Hex Couplings
Fixture Assembly
Upper Assembly
STEP 2:
a. Thread the Fixture Loop onto the nipple on the top
center of the Fixture Canopy. Hand tighten until snug.
Fixture Loop
Fixture Canopy
Nipple
STEP 3:
a. Thread the Lower Assembly onto the Hex Couplings on
the bottom center of the Junction Box. Hand tighten
until snug.
Hex
Couplings
Bottom Assembly
Nipple
Fixture Assembly
Junction Box
Junction
Box
