Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2013 QuoizelInc.

December2013

Is about 0.375” above the Crossbar (AA).

C. Remove the Canopy Lock Ring (FF) from the Canopy Chain Loop

(EE). Place the Ceiling Canopy (HH) over the Canopy Chain Loop
(EE) against the ceiling to determine the correct position of the
Nipple (DD). Thread the Canopy Lock Ring onto the Canopy Chain
Loop (EE). Adjust the Nipple (DD) to allow the Ceiling Canopy (HH)
to rest against the ceiling when held in place by the Canopy Lock
Ring (FF).

D. Remove the Canopy Lock Ring (FF) and the Ceiling Canopy (HH).

Tighten the Hex Nut (CC) against the Crossbar (AA) to secure in
place.

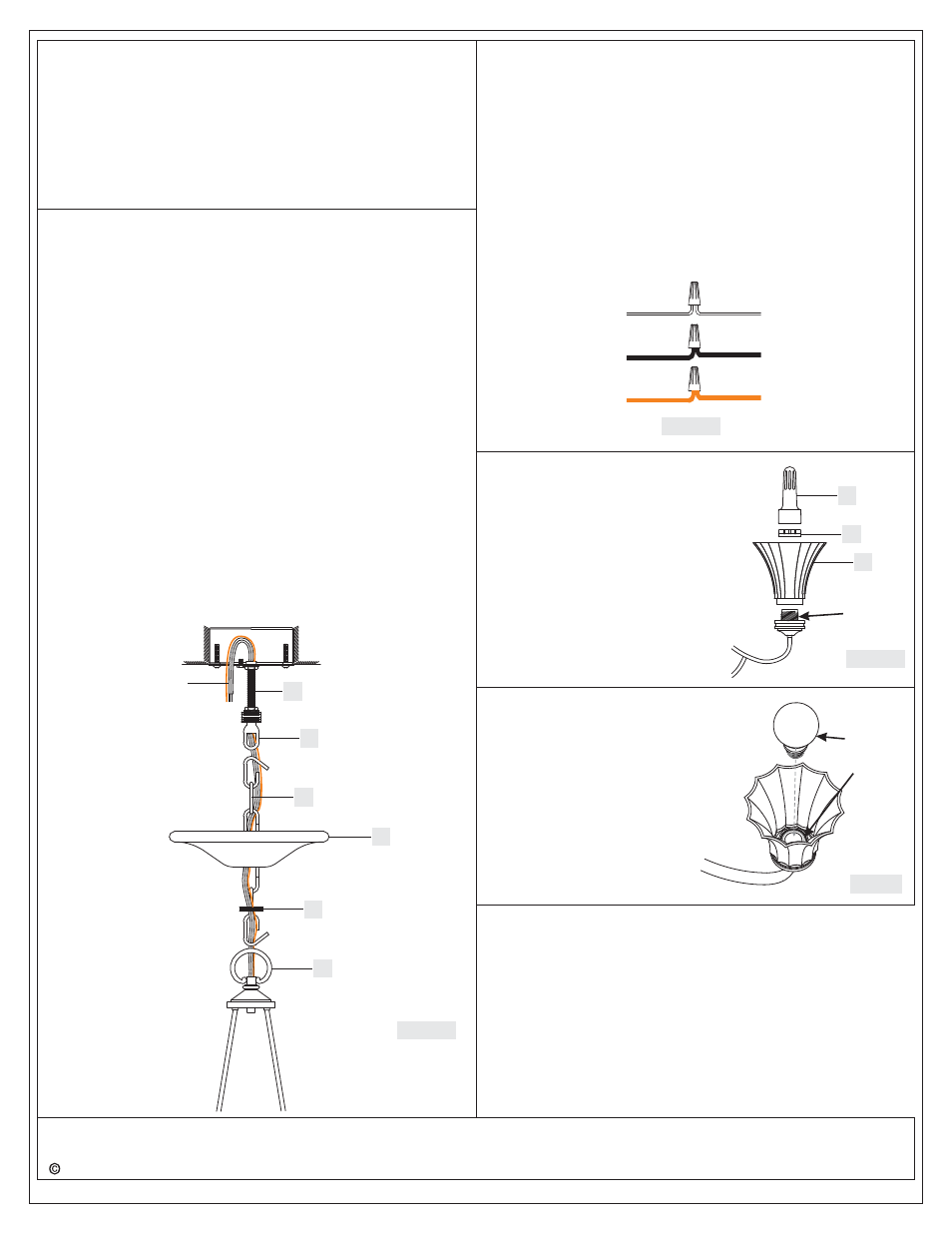

STEP 4 - Install Fixture Chain and Ceiling Canopy

A. Adjust the Fixture Chain (HH) to your desired length by removing

the links if needed.

Pliers is required for this step.

B. With the Fixture Chain (HH) not attached to the Fixture Loop (A) and

the Canopy Chain Loop (EE), pull the supply wires through the
Fixture Chain (GG) alternating links. After the wires are through the
Fixture Chain (GG), pull the Supply Wires and the Ground Wire
through the Canopy Lock Ring (FF) and the Ceiling Canopy (HH) in
order.

C. Attach one end of the Fixture Chain (GG) to the Fixture Loop (A) and

close the chain loop. Lift the fixture and Fixture Chain (GG) up And
Attach the other end of the Fixture Chain (GG) onto the Canopy
Chain Loop (EE). The fixture will now hang safely. Close the chain
loop at the Ceiling Canopy Loop (EE).

D. Feed the Supply Wires and Ground Wire through the Canopy Chain

Loop (EE) and Nipple (DD) into the Outlet Box. Cut the wires leaving
approximately 8” of wire extending from the Outlet Box.

E. Refer to Step 6 for wire connections.
F. Raise the Ceiling Canopy (HH) and Canopy Lock Ring (FF) up the

Fixture Chain (GG) and over the Canopy Chain Loop (EE). Tighten
the Canopy Lock Ring (FF) onto the Canopy Chain Loop (EE) until
tight.

Suggested chain length for Ceiling height :
8’ ceiling : use 4 links of chain
9’ ceiling : use 13 links of chain
10’ ceiling : use 23 links of chain

Figure 4

Supply Wires

and Ground Wire

STEP 5 - Wire Connections

A. Use standard wire connectors (not included) to make all wire

connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.

B. Connect White Supply Wire from the Outlet Box to Ribbed side

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth

side Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground Wire from

fixture.

E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

White wire

from supply

Ribbed side wire
from fixture

Black wire from
supply (or Red)

Smooth side wire
from fixture

Ground wire

from supply

Ground wire
from fixture

Figure 5

STEP 6

Install Shade

A. Place the Shade (E) over the

Socket as shown. By using the
Socket Collar Tool (C), thread the
Socket Collar (D) onto the Socket.
Hand tighten until snug to secure
the Shade (E).

Socket

Figure 6

STEP 7

Install Bulb

A. This fixture uses standard bulb with

medium base . Maximum 100 watts.

B. Insert bulb and screw snugly into

place.

Your fixture is now assembled and
ready to use. Enjoy!

Bulb

Socket

Figure 7
