Installation Instructions MIWRF SERIES
9

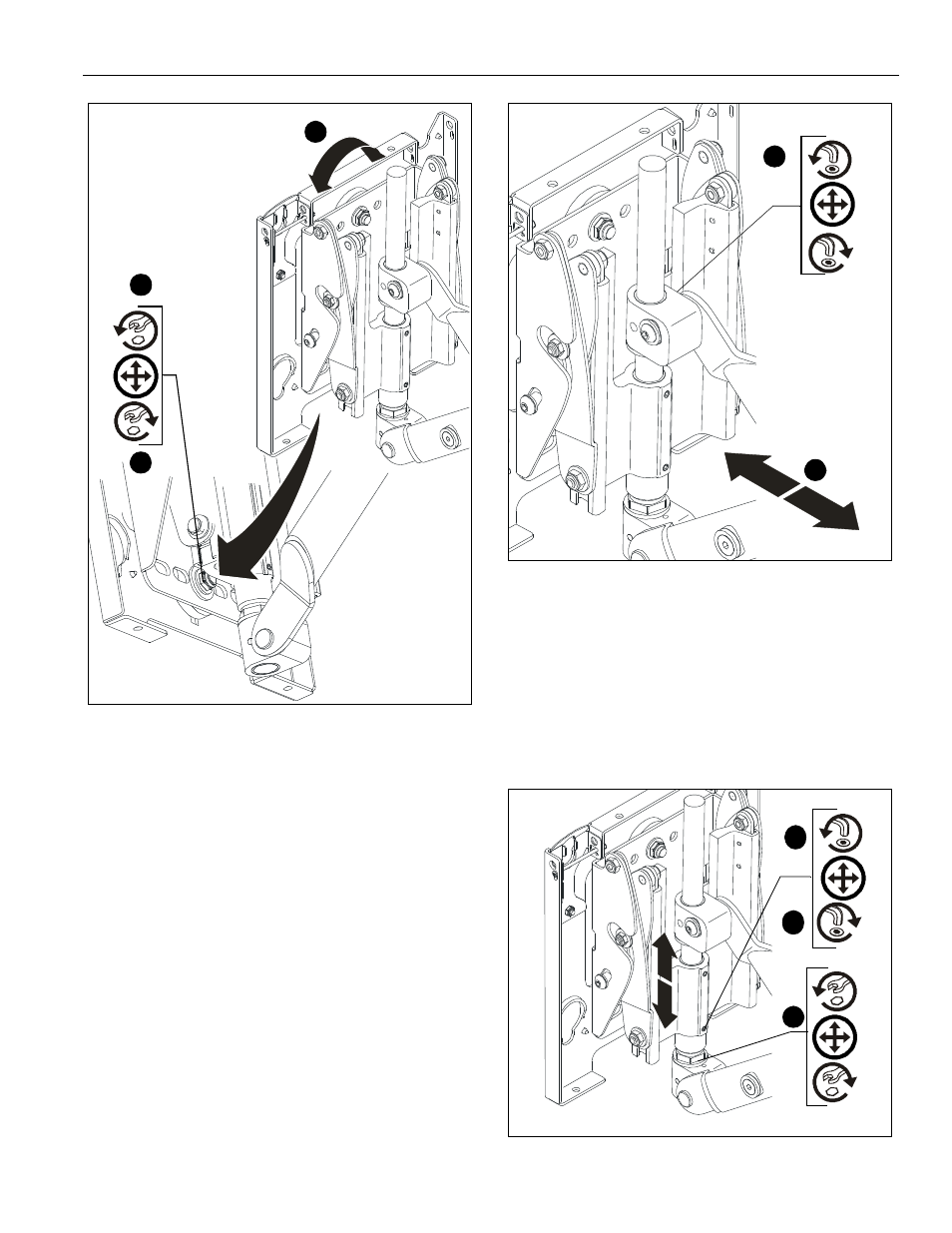

Figure 15
Extend/Retract Tension Adjustment
Arm Extend and Retract tension is pre-set at the factory and is
adjusted to accommodate displays with weights near the top of
the mounts capacity.
If smaller displays are used it may be difficult to reposition the
display after mounting. Arm Extend and Retract tension can be
adjusted to compensate for smaller display by:
The display must be mounted prior to adjusting swing arm
tension.
1. With display installed, tighten or loosen adjustment screw
using hex wrench. (See Figure 16)
2. Check for desired tension.
3. Repeat Steps 1 and 2 until desired tension is obtained.
NOTE: If changing from a smaller display to a larger display
may be necessary to increase tension.
Figure 16
Display Height Adjustment
The mount is designed to accommodate up to 1" of display
height adjustment.
To adjust display height:
1. With display installed, loosen adjustment locking screw
using hex wrench. (See Figure 17)
2. Adjust display height by turning adjustment nut in desired
direction. (See Figure 17)
3. Tighten adjustment locking screw when display is at desired
height. (See Figure 17)
Figure 17
