Chief Manufacturing MIWRF Series User Manual
Page 7
Installation Instructions
MIWRF SERIES
7
Trim Installation
To install optional trim;
1.
Orient two trim pieces (G) as shown in figure below.
(See Figure 9)
2.
Slide slat in trim edge over lip in mount enclosure and press
trim (G) onto enclosure. (See Figure 9)

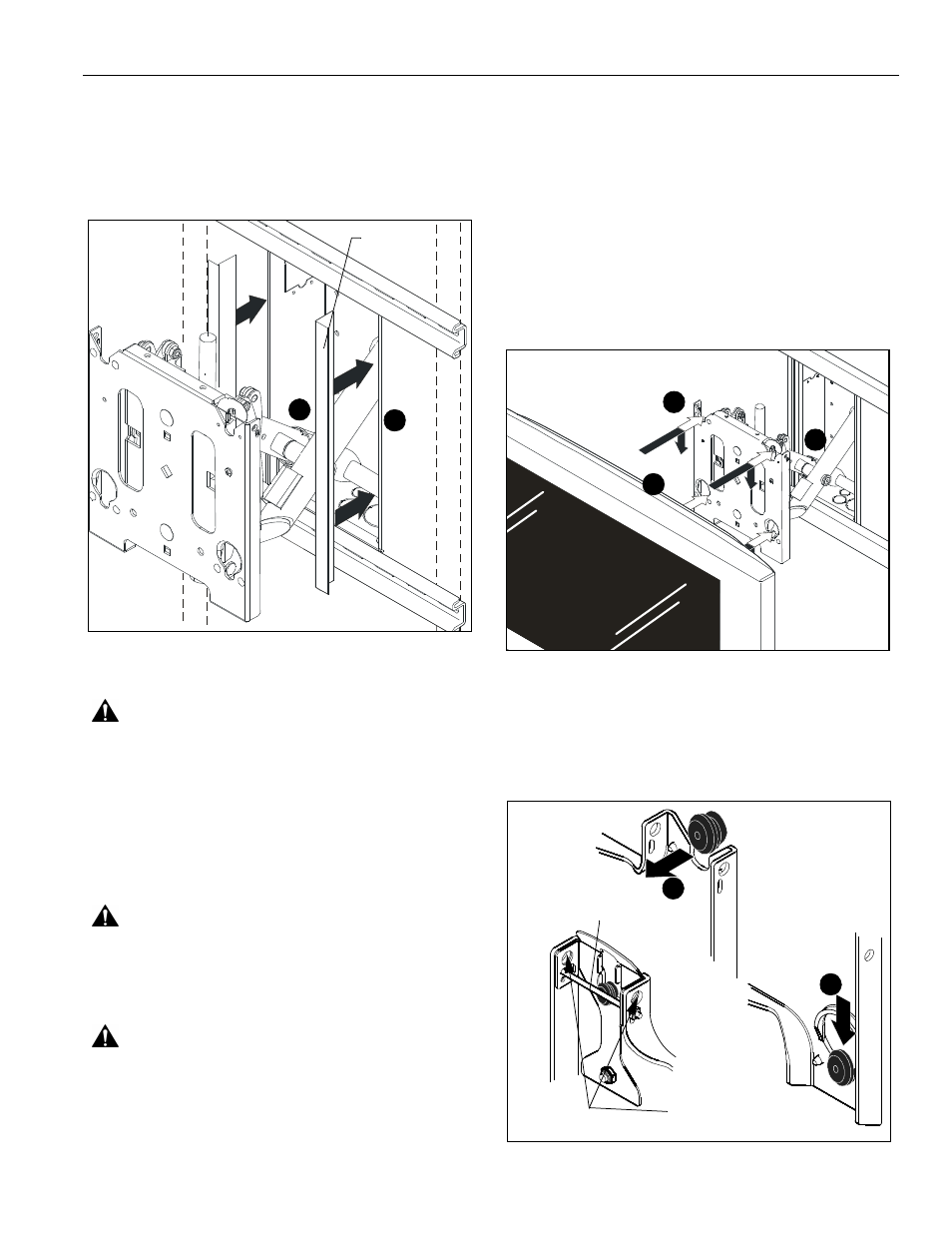

Figure 9
Display Installation
WARNING:
IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT! DO NOT install display in a
manner other than that specified by the manufacturer. Certain
displays may require the use of an interface bracket for
proper installation of the display. If an interface bracket is not
installed, or there are any other questions regarding the
installation of the display, immediately contact a Chief
Customer Service representative by calling 800-582-6480 or
by visi
WARNING:
IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT. Displays can weigh in
excess of 40 lbs (18.1kg). ALWAYS use two people and
proper lifting techniques when installing display.
WARNING:
IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT. Make sure mounting buttons
on display are properly seated in mounting holes in faceplate.
To install display:
1.
Install interface bracket (if model MIWRFUB or MIWRFVB)
following the installation instructions provided with the
interface bracket.
2.
Move mount faceplate to extended position by grasping
faceplate and pulling outward away from wall.
(See Figure 10)
3.
While supporting both sides of display, align four mounting
buttons on display or interface bracket with four mounting
holes in faceplate. (See Figure 10)
4.
Lower display into place listening for audible "click" to
ensure recessed area of mounting buttons are properly
seated in lower area of mounting holes and "click lock"
mechanism has engaged. (See Figure 10) and
(See Figure 11)
Figure 10
NOTE:
Holes are provided in the faceplate for use with a
padlock or similar locking device, if desired. In addition,
the pin and nut may be removed from the upper holes
and moved to the lower holes for use as a more
permanent locking device. (See Figure 11)
Figure 11
1
(G) x 2
2
2
4
3
5
4
Remove pin
and nuts and
move to lower holes.
A padlock or bolt may
be placed through latch
holes
