MIWRF SERIES Installation Instructions
6

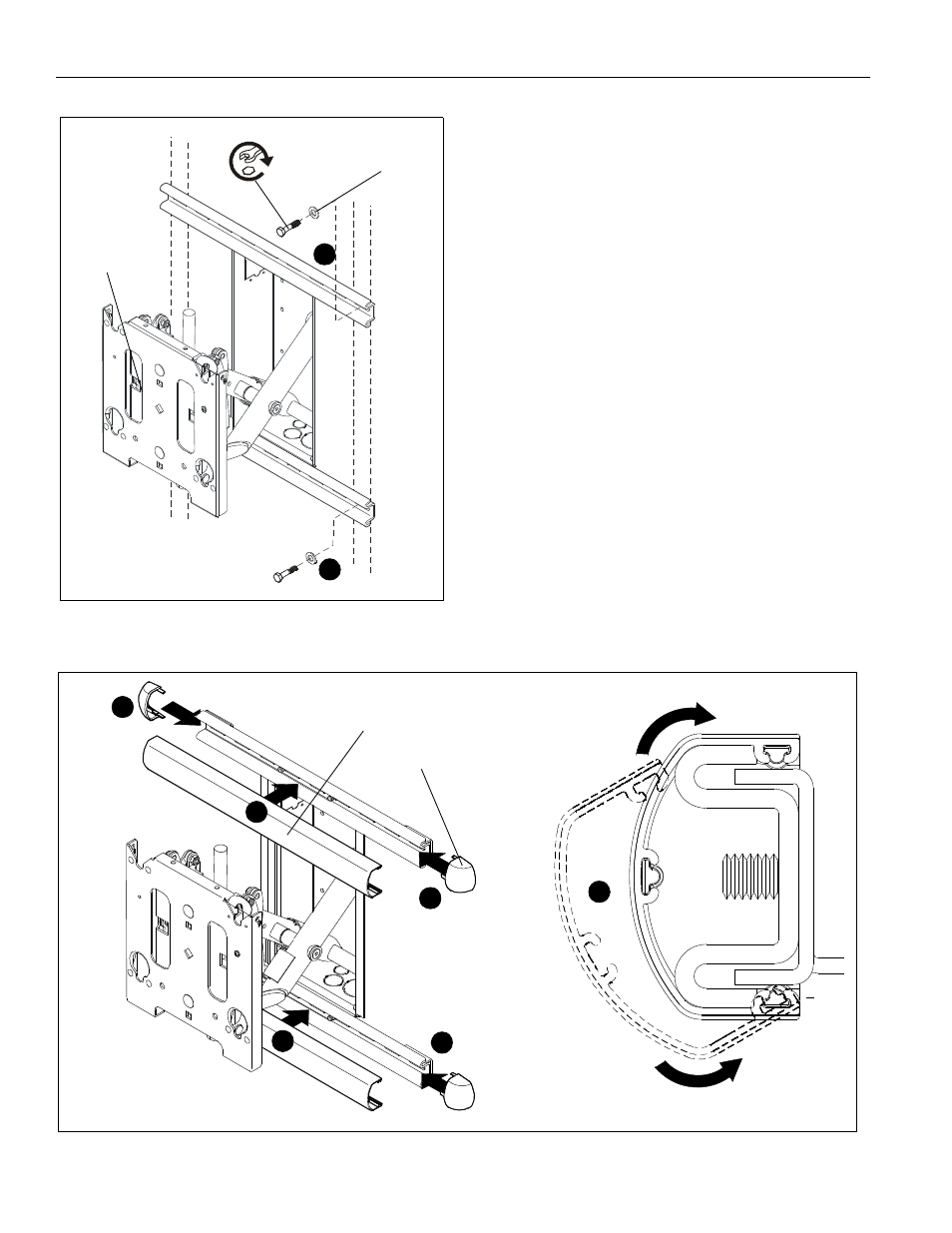

Figure 7
Cover and Trim Installation
Cover Installation
To install covers:
1. Install upper and lower wall channel covers (E) by tipping
cover top down and positioning as shown in end view of
figure below. (See Figure 8)
2. Tap firmly across bottom of channels to lock in place as
shown in figure below. (See Figure 8)
3. Install four R.H. and L.H. end caps (D) by aligning tabs on
end caps (F) with slots in wall channel covers (E) and sliding
tabs in until end caps (D) are flush with wall channel covers
(E). (See Figure 8)
(F1) x4 (F2) x4
9
9
(A) x1
Figure 8
(D) x 4
1
(E) x 2
2
1
2
2
1
