Chief Manufacturing MIWRF Series User Manual
Page 10
MIWRF SERIES
Installation Instructions
10
YAW Tension Adjustment
The mount is designed to accommodate up to 37.5 deg. of
travel to left and right of center.
To adjust YAW tension:
1.
With display installed, loosen adjustment screw using hex
wrench. (See Figure 18)
2.
Check for desired tension.
3.
Repeat Steps 1 and 2 until desired tension is obtained.
NOTE:
If changing from a smaller display to a larger display
may be necessary to increase tension.

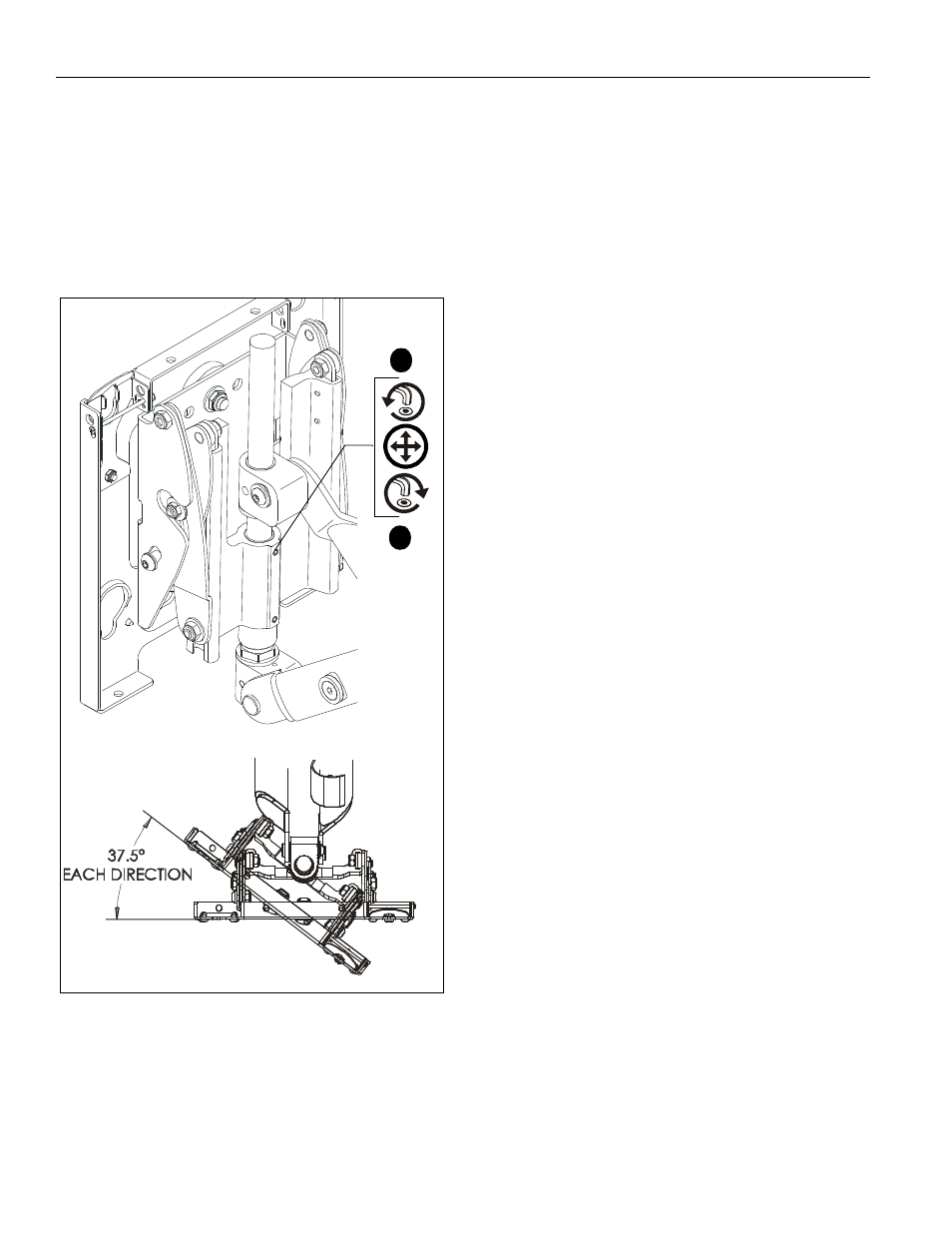

Figure 18
3
1
TOP VIEW
