C

Mesur-Fil Fluid Couplings

P-1100-WC 1/12

Wichita Clutch 800-964-3262 169

Single Flexing Coupling

7.0 AJ15*

9.4 AJ30*

12.4 AJ30*

* Refers to TB Wood’s Form-Flex couplings

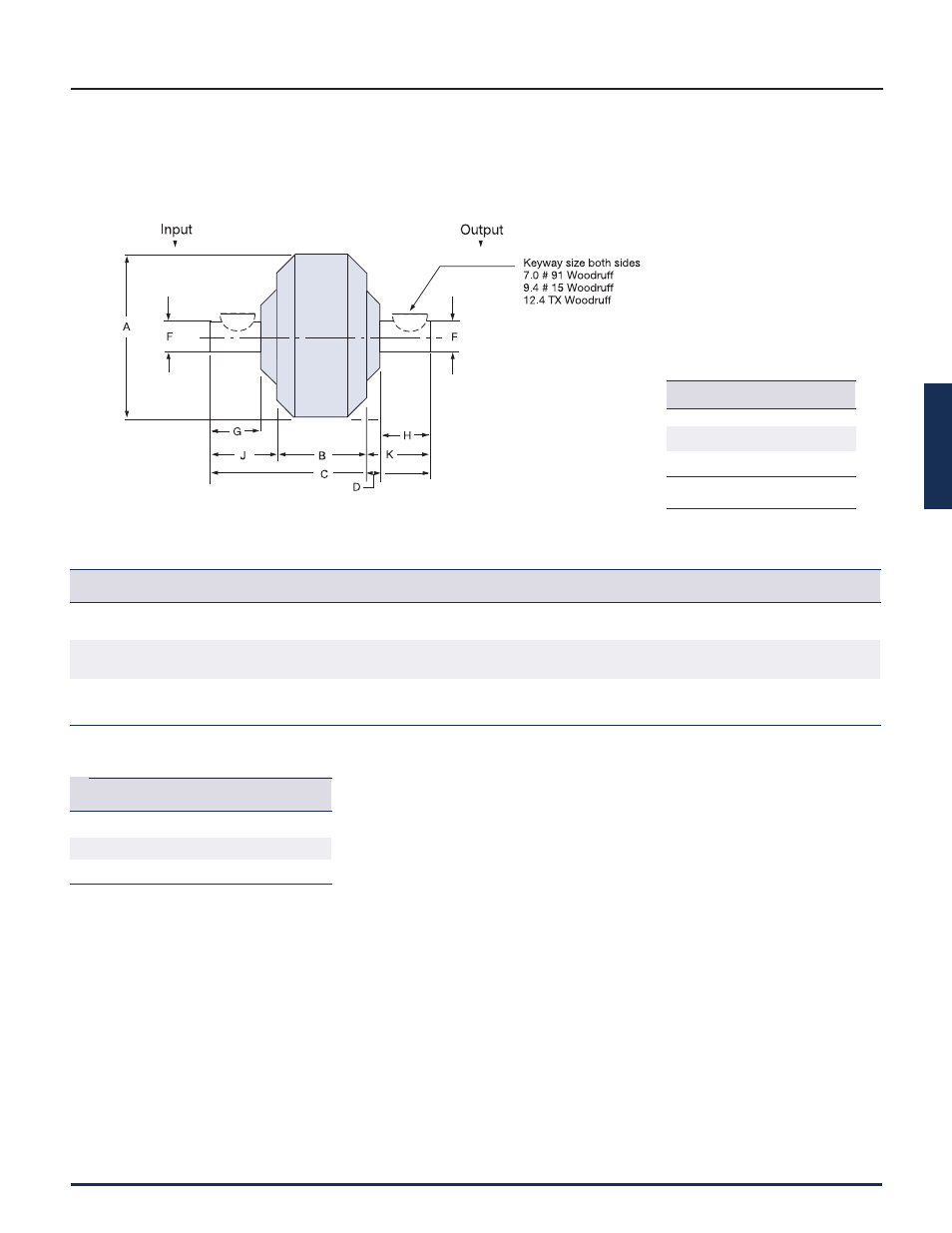

Model HBM (Shaft-to-Shaft Applications)

Sizes 7.0 – 12.4

Dimensions: inches

Wt. lb.

Size A B C D F G H J K Less Oil Max. oz.

7.0 7.81 3.67 8.25 .56 1.000 1.62 1.62 2.34 2.24 12.65 27.6

.999

9.4 10.25 4.70 10.89 .77 1.250 2.06 2.12 3.10 3.09 27.70 65

1.249

12.4 13.50 5.98 13.67 .82 1.625 2.12 2.75 3.88 3.88 51.07 150

1.624

Size Assembly Number

7.0 6-607-004-000-0000

9.4 6-609-004-000-0000

12.4 6-612-004-000-0000

3/8" NPT

4-619-068-000-0

Fusible Plug
