C H A P T E R
4-1
Cisco Service Control Engine 1000 2xGBE Quick Start Guide
OL-7822-06
4
Connect the Management Interfaces and Perform
Initial System Configuration
This section explains how to connect the SCE 1000 platform to a local console and perform the initial
system configuration via the setup wizard that runs automatically. Additionally, this section contains
instructions for cabling the Fast Ethernet Management interface.
• Connect the Local Console, page 4-1
• Perform the Initial System Configuration, page 4-2
• Connect the Management Interface, page 4-25
Connect the Local Console

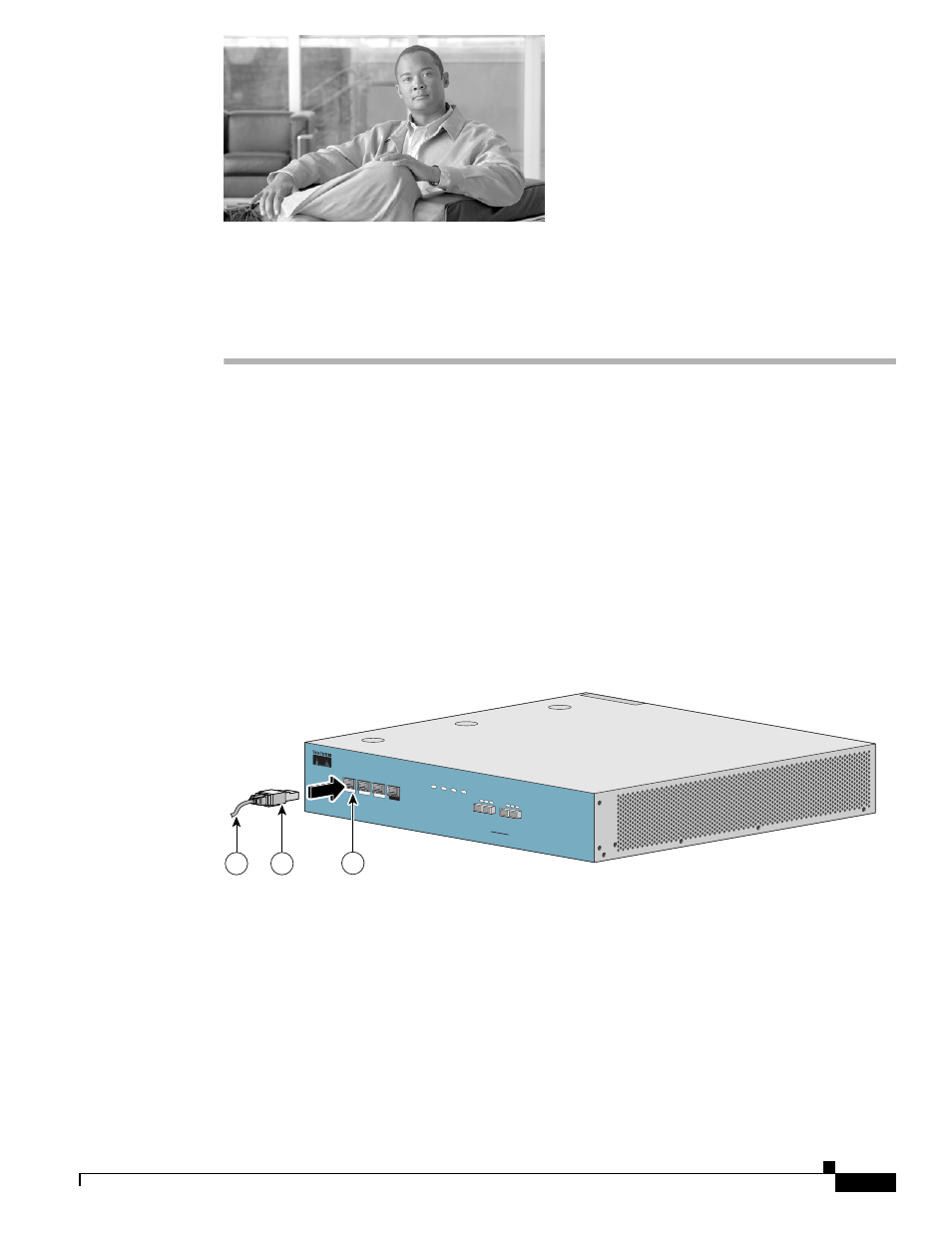

Figure 4-1 Connecting to the Local Console
You must first connect the unit to a local console and configure the initial settings for the SCE 1000 to
support remote management. When the initial connection is established, the setup utility will run
automatically, prompting you to perform the initial system configuration.
Make sure that the terminal configuration is as follows:
• 9600 baud
• 8 data bits
• No Parity
• 1 stop bits
• No flow control
Cisco SCE 1
000 Series 2xGBE
LINK RX TX
RX MM TX
LINK RX TX
RX MM TX
GBE-1
SUB LINE NET
PWR B STAT US
PWR A
BYPASS
10/100/ 1000
LINK/ ACTIVE 10/100/ 1000 LINK/ ACTIVE
AUX CONSOLE MNG 2 MNG 1
92965
3 2 1
