2-6

Cisco Service Control Engine 1000 2xGBE Quick Start Guide

OL-7822-06

Chapter 2 Rack-Mount the SCE 1000

Mount the System to the Rack

A rack with both front and back posts will have the crossrail supports installed. Slide the SCE 1000 onto
these crossrails and push it all the way back.

Step 4

While keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with
the holes on the rack or mounting strip.

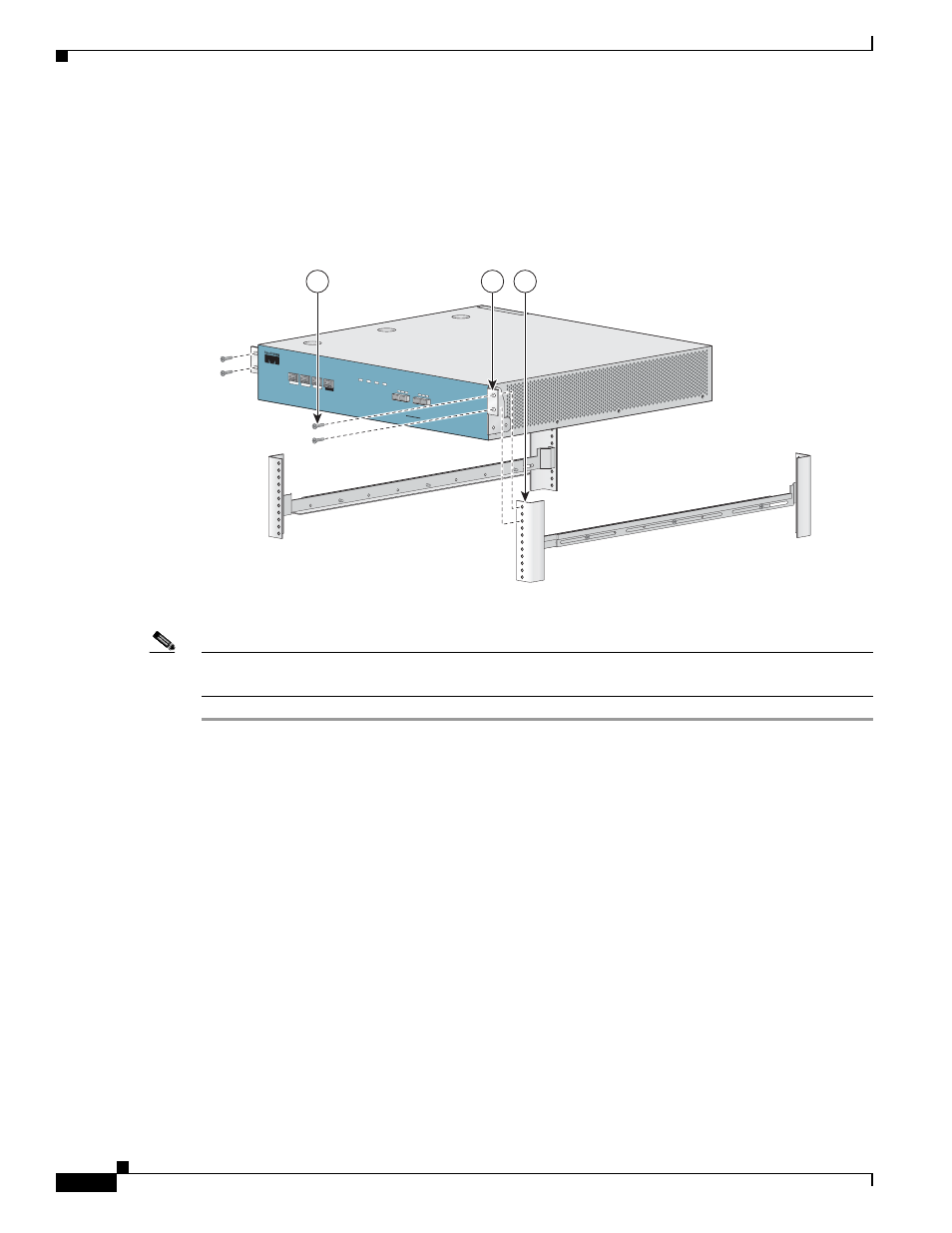

Figure 2-8

Securing the SCE Platform to the Rack

Step 5

For each bracket, insert and tighten two appropriate screws to the rack.

Note

Since the brackets support the weight of the entire SCE 1000 chassis, be sure to use all four screws to
fasten the two rack-mount brackets to the rack posts.

LINK RX TX

PWR B STATU

PWR A

BYPASS

10/100/

1000

LINK/

ACTIVE

10/100/

1000

LINK/

ACTIVE

AUX

CONSOLE

MNG 2

MNG 1

Cisco SCE

1000

Series

2xGBE

GBE-1

SUB

LINE

NET

210420
