Wireless RF Test Enclosures

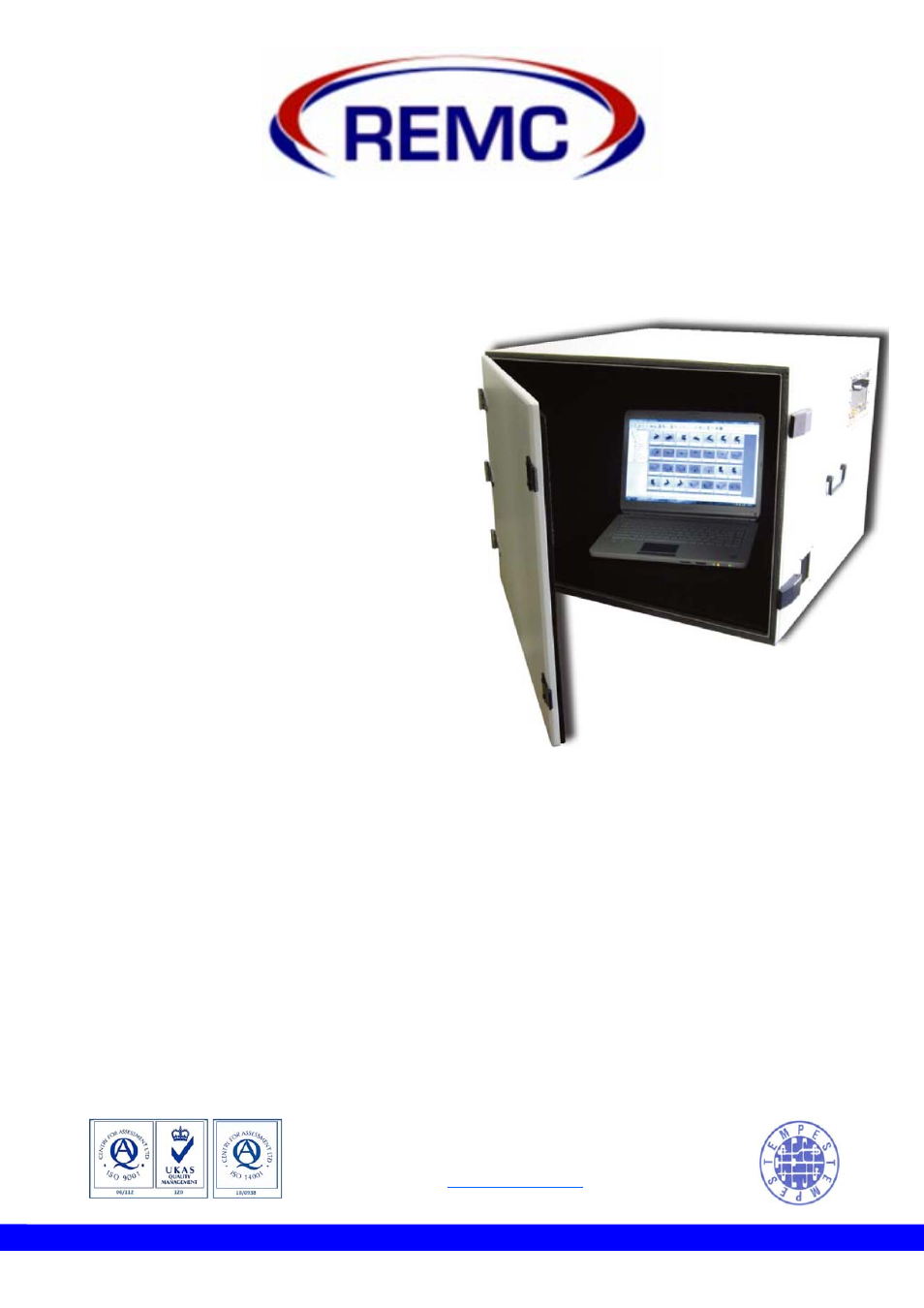

Rainford PTC — JRE 2525 RF Shielded Test Enclosure
Our largest portable enclosure—ideal for large RF devices

Roomy 23.5 x 23.5 x 18 inches inside each box

Triple hinges keep door sealed RF tight

Rugged welded aluminium construction

Wide selection of I/O options with our universal I/
O plate, easily interchangeable too!

Light weight, only 46 lbs! Compare to similar
products that weigh over 100 lbs!
Originally designed for testing rack mounted RF Sensing
equipment, the roomy JRE 2525 is ideal for large wireless
devices such as: Rack Mount Mesh Network AP’s, Cellular/
LTE/4G Base Stations, Wireless Laptops, Test Fixtures for
testing Large RF Modules and other large RF devices.
Featuring rugged welded aluminium construction, you can
be assured of its tight RF shielding effectiveness. Long life
door gasket material along with double edge engagement
not only provides solid RF shielding, but smooth trouble free
operation over its lifespan.
Extra wide opening for easy placement of internal devices.
Our wide selection of I/O connectors allow almost any de-
vice to be interfaced inside the enclosure, and the internal
electromagnetic absorbing material reduces RF reflections
and hot-spots.
FEATURES & BENEFITS

Double contact door shields ensures repeata-
ble measurements

3/4” thick RF absorbing foam deadens stand-
ing waves and reflections for repeatable tests

Heavy duty hinges hold lid steady

Rugged welded aluminium construction for
long life

Wide variety of connector options for every use
CONNECTORS
Universal I/O plate with incredible connector options.
Easily changed in the field for multiple uses.
ISOLATION
-90dB @ 1GHz, -90dB @ 3GHz, -80dB @ 6GHz
DIMENSIONS
Outside: 19.5”H x 25”W x 25”D
Inside: 18”H x 23.5”W x 23.5”D
JRE 2525 I/O OPTIONS
RF Feedthru:
BNC, TNC, SMA, SMB, UHF, Type-N, reverse SMA, reverse
TNC
Fiber Optic:
Fiber optic bulkhead feed thru: Type ST, FC. Fiber transceiver
available for USB2.0 with speeds up to 480 MB/s
Connector Covers:
Dust cover caps with tether chains included for all RF connectors
RF Filtered Data Connectors:
DB9, DB15, DB25, DB37, DB50, RJ11, RJ45, USB (choice of
100 or 1000 pF filtering on data lines)
Power Connection:
4 or 6 terminal barrier strip, 2500 pF filtering. 120/240 VAC power
strip
Cover Interlock Switch: Safety switch contact
