Wireless RF Test Enclosures

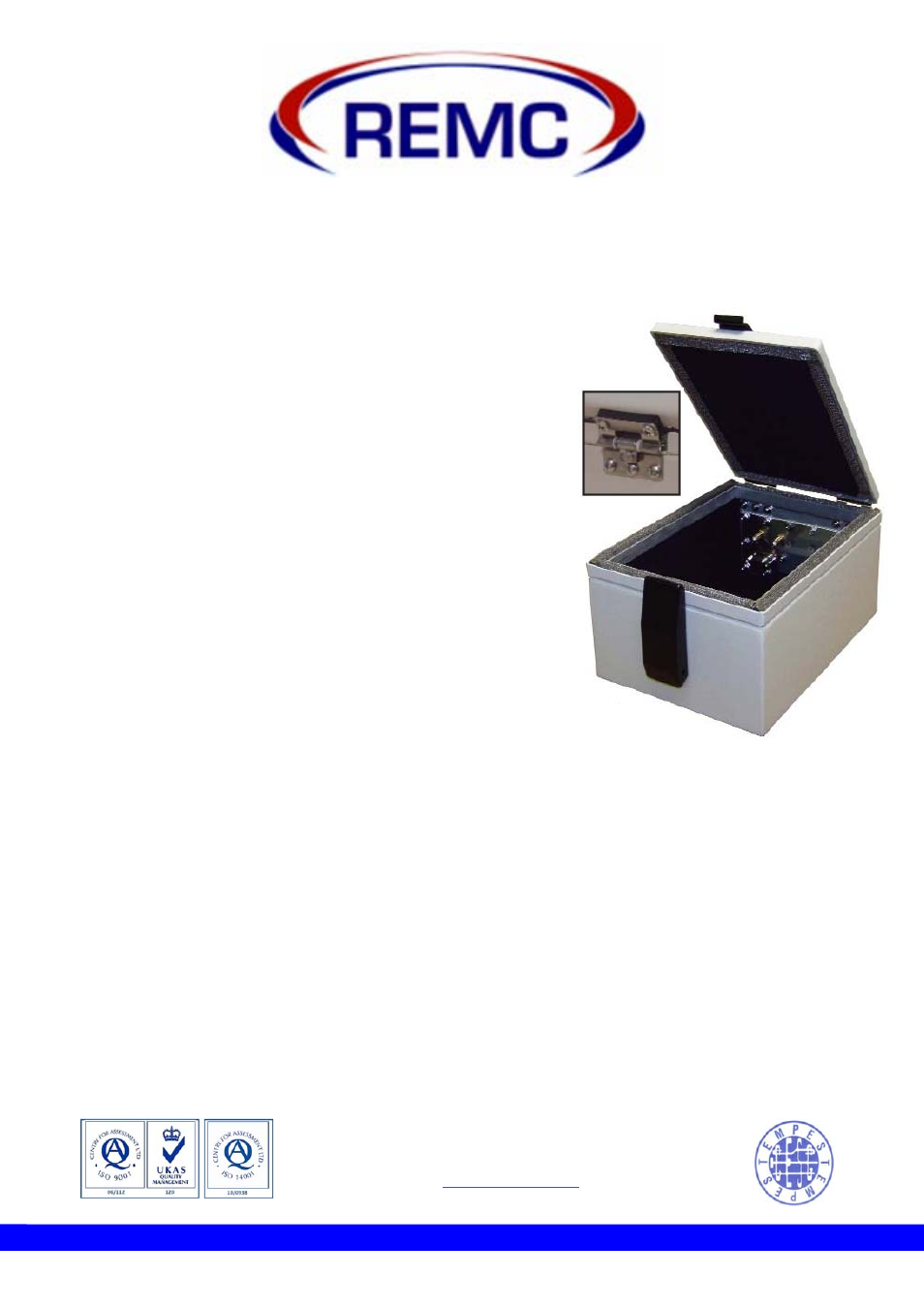

Rainford PTC — JRE 0709
RF Shielded Test Enclosure
Our smallest enclosure — ideal for dongles, mobile phones, pagers.
Roomy 3.75 x 6 x 8.5 inches inside
Excellent RF Isolation
Fits on any bench top
Rugged welded aluminium construction
Wide selection of I/O options
Small size for many RF devices like Bluetooth and RFID
Low cost
Containing all the capability of the larger JRE enclosures, the compact
JRE 0709 is ideal for small wireless devices such as mobile phones, pag-
ers, Wi-Fi dongles and other small RF devices.
Featuring rugged welded aluminium construction, you can be assured of
its tight RF shielding effectiveness.
Long life door gasket material along with double edge engagement not
only provides solid RF shielding, but smooth trouble-free operation over
its lifespan.
Our wide selection of I/O connectors allow almost any device to be inter-
faced inside the enclosure, and internal electromagnetic absorbing materi-
al reduces RF reflections and hot-spots
FEATURES & BENEFITS
Double contact door shields ensures repeata-
ble measurements
1/2” thick RF absorbing foam deadens stand-
ing waves and reflections for repeatable tests
Heavy duty stainless steel friction hinge holds
lid steady
Rugged welded aluminium construction for
long life
Wide variety of connector options to choose
CONNECTORS
Customer defined, see right
ISOLATION
-100dB @ 1GHz, -90dB @ 3GHz, -80dB @ 6GHz
DIMENSIONS
Outside: 5”H x 7.25”W x 9.75”D
Inside: 3.75”H x 6”W x 8.5”D
JRE 0709 I/O OPTIONS
RF Feedthru:
BNC, TNC, SMA, SMB, UHF, Type-N, reverse SMA, reverse TNC
Fiber Optic:
Fiber optic bulkhead feedthru: Type ST, FC. Fiber transceiver avail-
able for USB2.0 with speeds up to 480 MB/s.
Connector Covers:
Dust cover caps with tether chains included for all RF connectors
RF Filtered Data Connectors:
DB9, DB15, DB25, DB37, DB50, RJ11, RJ45, USB (Choice of 100
or 1000 pF filtering on data lines)
Power Connection:
4 or 6 terminal barrier strip, 2500 pF filtering on all lines
Cover Interlock Switch:
Safety switch contact
