Wireless RF Test Enclosures

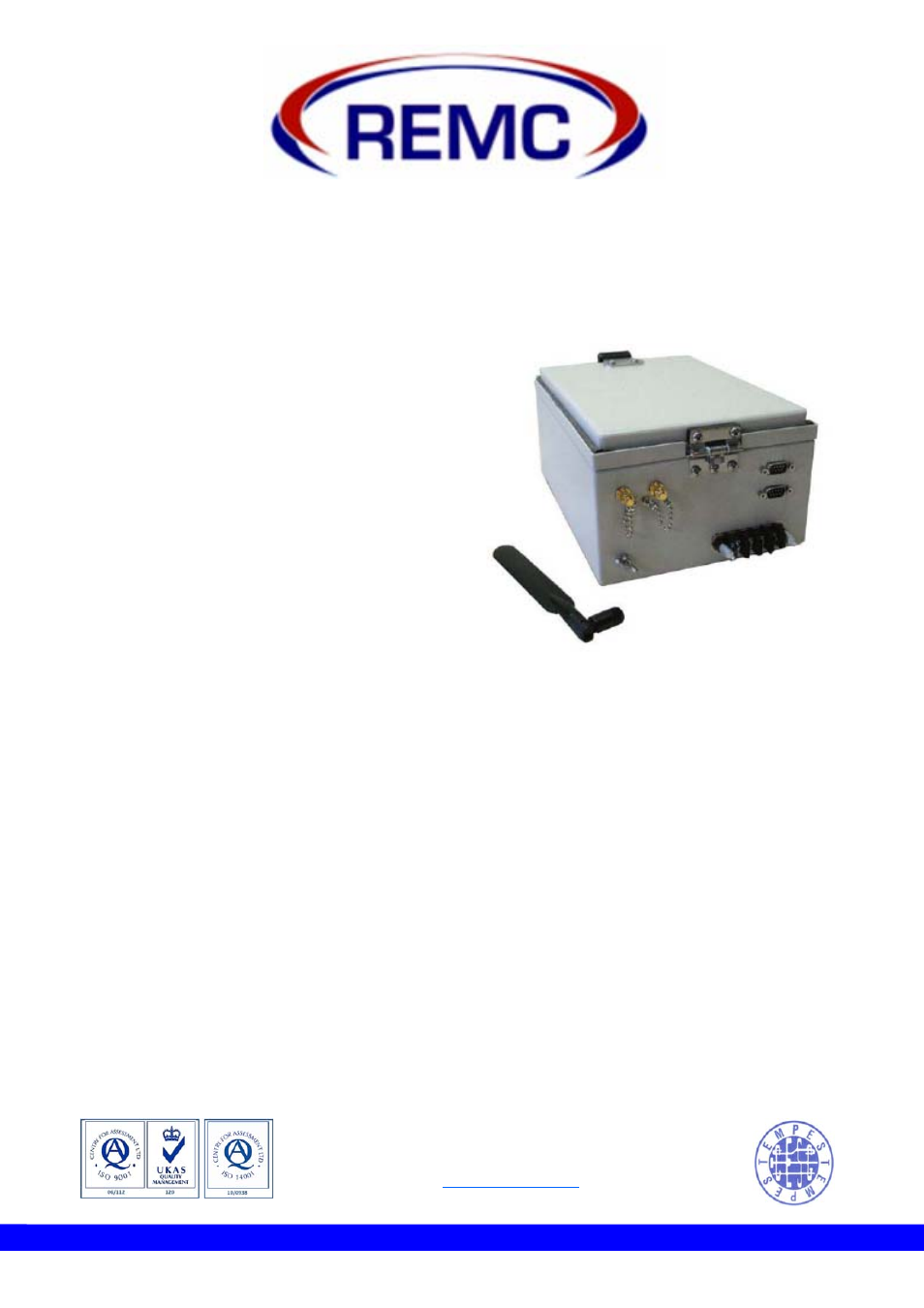

Rainford PTC — JRE 0709-E LTE/4G/Cellular
RF Shielded Test Enclosure
Universal, preconfigured RF Shielded Test Enclosure.
Roomy 3.75 x 6 x 8.5 inches inside each box
Excellent RF Isolation
Fits on any benchtop
Rugged welded aluminium construction
Adjustable latch ensures tight RF shielding
Already configured for most Cellular, PDA
tests
Containing all the capability of the larger JRE enclo-
sures, the compact JRE 0709-E is ideal for small wire-
less devices such as mobile phones, pagers, WiFi don-
gles and other small RF devices.
Featuring rugged welded aluminium construction, you
can be assured of its tight RF shielding effectiveness.
Long life door gasket material along with double edge
engagement not only provides solid RF shielding, but
smooth trouble free operation over its lifespan.
A popular configuration of I/O connectors allow almost
any device to be interfaced inside the enclosure, and internal electromagnetic absorbing material reduces RF re-
flections and hot-spots.
FEATURES & BENEFITS
Double contact door shields ensures repeata-
ble measurements
1/2” thick RF absorbing foam deadens stand-
ing waves and reflections for repeatable tests
Heavy duty hinges hold lid steady
Rugged welded aluminium construction for
long life
Wide variety of connector options for every use
CONNECTORS
Customer defined, see right.
ISOLATION
-100dB @ 1GHz, -90dB @ 3GHz, -80dB @ 6GHz
DIMENSIONS
Outside: 5”H x 7.25”W x 9.75”D
Inside: 3.75”H x 6”W x 8.5”D
JRE 0709-E I/O Interfaces
RF Feedthru:
2 each of SMA female bulkhead
Adapter:
One DB9 to USB adapters
Connector Covers:
Dust cover caps with tether chains included for all RF
connectors
RF Filtered Data Connectors:
Dual DB9’s, one with 100 pF filtering, one with 1000 pF
filtering for a wide range of data rates.
Power Connection:
4 terminal barrier strip, 2500 pF filtering. Barrier strip
cover included.
Whip Antenna:
One 800 MHz—2.1 GHz whip
