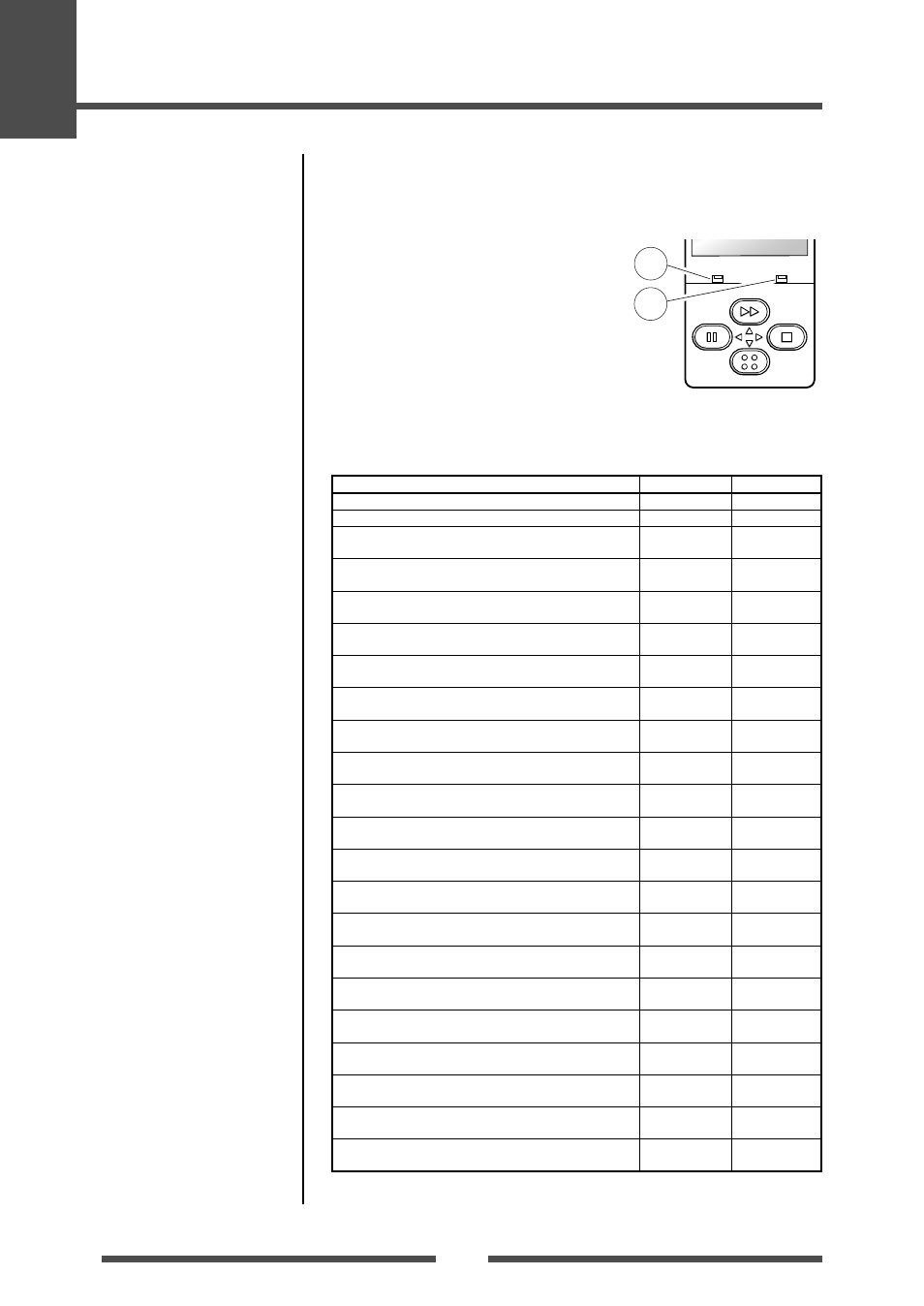

LED Functions

1 POWER LED

It lights up when printer power is turned
on. (green)

2 ERROR LED

This is lit or flashes when the printer is
in error status. (orange)

Table of Alarm and Error Indications

In addition to normal operating mode, when an abnormal condition is detected
in the printer, an alarm sounds and ERROR LED either lights up or flashes to
indicate the type of error. The LCD indicates the error message.

POWER

ERROR

FEED

STOP

MENU

PAUSE

1

2

Normal Operating Mode

Item

ERROR LED

LCD

Printing possible (no error)

OFF

On Line

Stop or Pause key on operation panel pressed

OFF

Pause

Head temperature - high temperature abnormality

Flashing

Alarm

Head Hot

Head temperature - low temperature abnormality

Flashing

Error

Head Cold

PF motor temperature abnormality

Flashing

Alarm

PFMotor Hot

Fan motor malfunction

Flashing

Error

Fan Lock

Cutter motor temperature abnormality

Flashing

Alarm

Cutter Hot

Head open

Flashing

Error

Head Open

Paper end

Flashing

Error

Paper End

Paper out (paper position undetectable)

Flashing

Error

Paper Load

Paper jam

Flashing

Error

Paper Jam

Head low resistance value abnormality

Flashing

Alarm

Head Check

Ribbon end

Flashing

Error

Ribbon End

Communication error (receiving buffer overrun)

Flashing

Error

Serial Over Run

Communication error (parity)

Flashing

Error

Serial Parity

Communication error (framing)

Flashing

Error

Serial Framing

Cover open

Flashing

Error

Cover Open

*Auto-cutter abnormality (foreign object etc.)

Flashing

Error

Cutter Fail

**Rewinder full (CL-S700R only)

Flashing

Error

Rewinder Full

**Rewinder cover open (CL-S700R only)

Flashing

Error

Rewinder Open

**Rewind fail (CL-S700R only)

Flashing

Error

Rewind Fail

**Rewinder Hot (CL-S700R only)

Flashing

Alarm

Rewinder Hot

* Applicable only when using the optional auto cutter
** Applicable only with the rewinder version
