Connecting Two Keyboards/Digital Pianos!
The Wi AudioLink transmitter can support up to two (2) keyboards /
digital pianos in mono or stereo mode without hiss, hum, crackle or
sound compromise.
Please visit our web site at www.jangusmusic.com for the
optional two keyboards stereo cable connection accessory

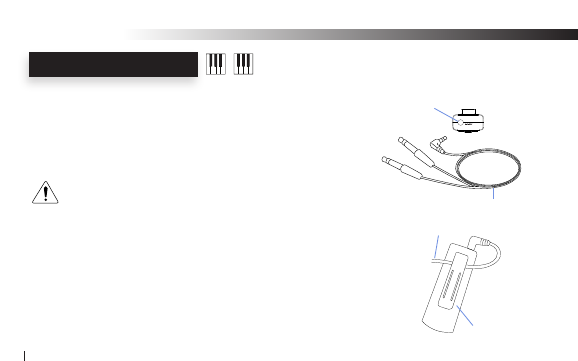

1. First Locate the 1/4” stereo Y-split to 1/8” stereo cable supplied with kit.
2. Connect the 1/8” stereo end of the cable into
the “Audio Input” jack on the transmitter.
3. Route the audio cable beneath the belt clip as shown to
prevent accidental disconnection of the cable.
4. Connect the red 1/4” end of the cable to the left mono input
located on the back panel of the first keyboard/digital piano.
TRANSMITTER CONNECTION
Wi AudioLink
24
Audio Input Jack
1/4” Stereo Y-Split to 1/8’
Stereo Cable
Belt Clip
Audio Cable
