5. For (Stereo) connection, connect the two 1/4” male ends of the cable to the
left (L/MONO) and right (R) outputs located on the back panel of the instrument.
6. Power up the transmitter by pressing and holding the POWER button
for 2 seconds.
7. Press and hold the Mode button until the Blue LED displays
two fast flashes for stereo Line-in mode operation.
F The two fast flashing blue LED indicates stereo line-in connection mode and the flashing
Green LED indicates the transmitter is searching for the receiver. The flashing
Green LED on the transmitter will turn to solid green once the receiver is powered
up, paired and linked with the transmitter.
F The standard factory power up setting is set for Passive Guitars . The transmitter can
remember and power up in the last power up mode selected .To change the startup mode to
the desired operation mode please refer to the “Tx Function Matrix” of this manual for detailed instructions.
8. Place the transmitter on top of or next to your musical instrument.
F Please proceed to page 26 for receiver connection instructions.

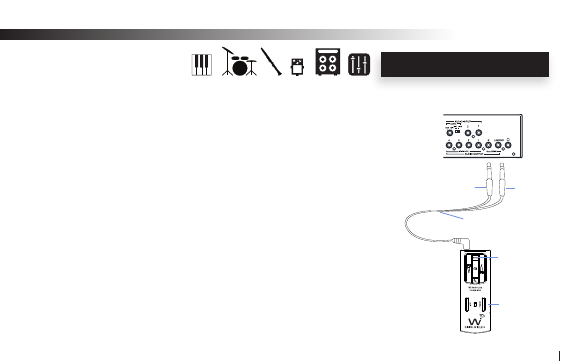

TRANSMITTER CONNECTION
