6

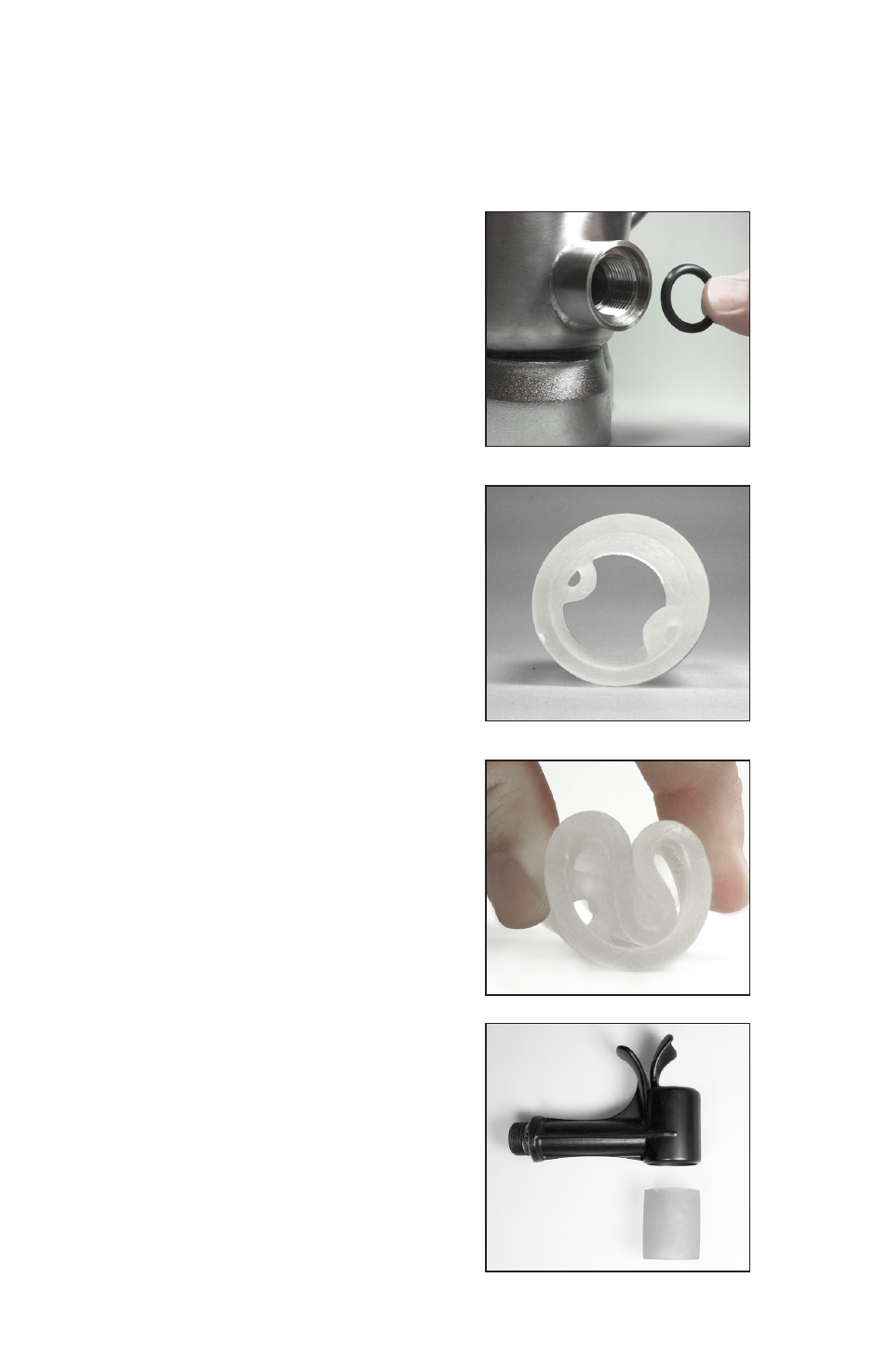

SPIGOT ASSEMBLY (FOR SF MODELS ONLY)
Your spigot assembly includes the main spigot housing,
O-ring and rubber insert.
The O-ring comes assembled
in the jar spigot adapter but
can be removed for cleaning.
Always make sure the O-ring
is positioned securely in the
adapter on the jar before
inserting and operating the
spigot function. Figure 1.
The rubber insert has two loops
on the inside to fit the lever
(refer to figure 2). The lever only
needs to be positioned into the
bottom loop. In the event that
one loop breaks, you can flip
the insert upside down and use
the other loop.
To assemble the rubber insert
pinch both sides as seen in
figure 3 and position the insert
inside the housing so that the
lever slides inside the rubber
insert and the bottom loop (for
the lever) is near the spigot
hole. Be sure that the bottom
of the rubber insert is flush
with the bottom of the spigot
housing.
Push the bottom of the lever
through the bottom loop of the
rubber insert.
fig. 1
fig. 2
fig. 3
fig. 4
