Configuration settings
Portal/Sentinel Settings
To configure the Portal or Sentinel, login to the Sierra Management Application then follow this
path to navigate to the configuration screen:
Setup>Device Profiles>(Edit next to device)>Wash Interface

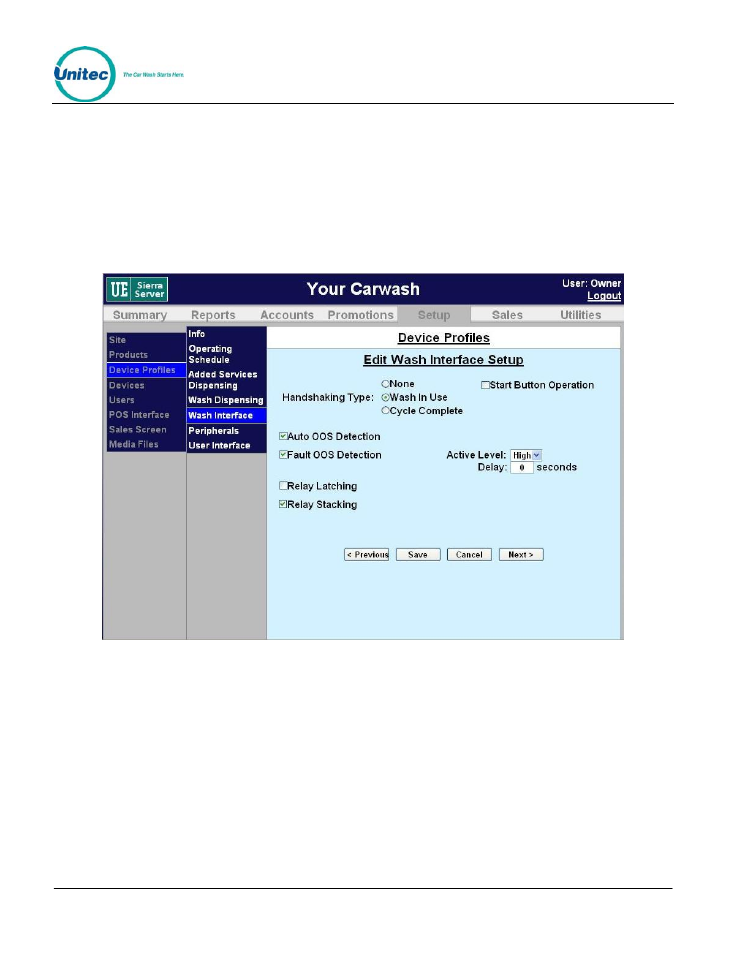

Figure 9. Wash Interface Screen
1. Enter the appropriate information in the following fields:
• Wash-in-Use Handshaking – Select this option when using a gate.
• Relay Latching –This needs to be unchecked if an entry gate is being used in conjunction
with the Portal or Sentinel.
• Fault OOS Detection – Check this box if a fault signal is available from the wash
equipment.
• Auto OOS Detection – Check this box to activate the Portal or Sentinel’s monitoring of the
out of service inputs from the wash.
• Relay Stacking –This needs to be checked if an entry gate is being used in conjunction
with the Portal.
